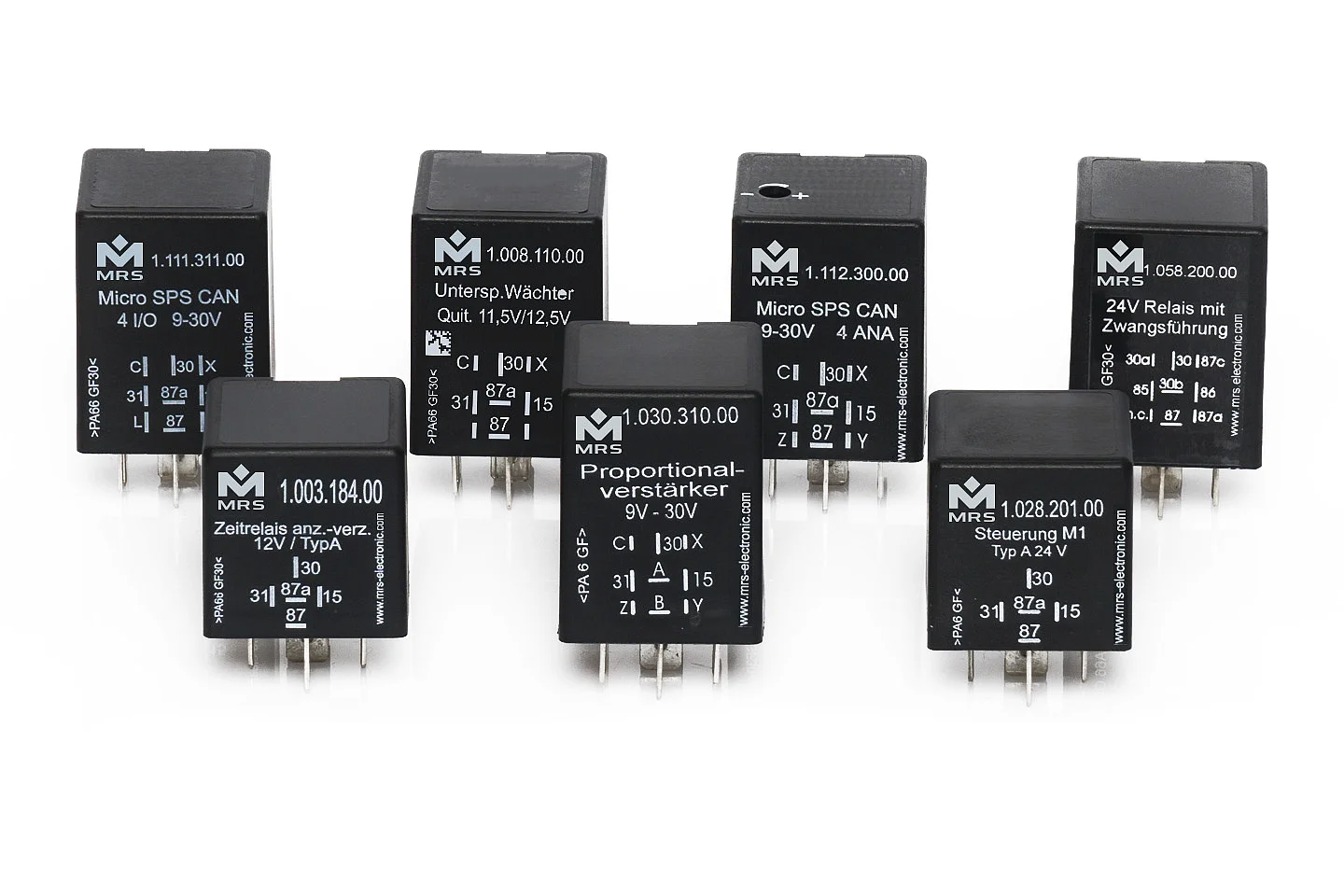

Relays

With our electromechanical relays you can switch circuits on, off and over. They offer you the possibility to control a circuit with high voltages and currents with a small circuit. Thus, a relay can be used for example very well as protection relay with machines and devices, in order to switch off immediately with wrong operating values. In addition, our relays are very suitable for controlling time-delayed circuits of any kind.

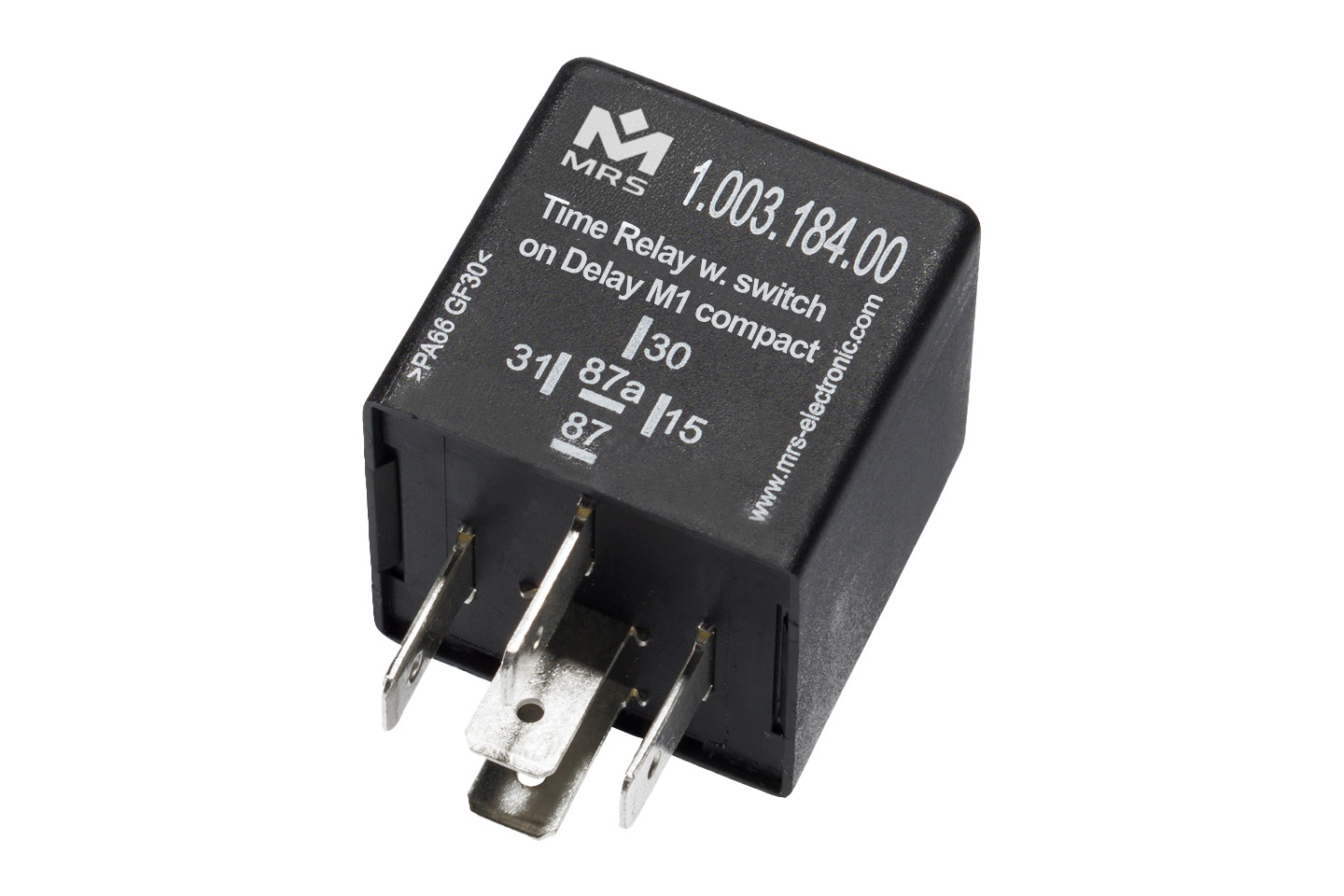

Time Relay M1 compact SW on Delay 12 V

Article number : 1.003.18x.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Quiescent current (12V):  1 mA
  • Switching current:  20 A
  • Switching cycles:  100000
  • IP rating:  IP53

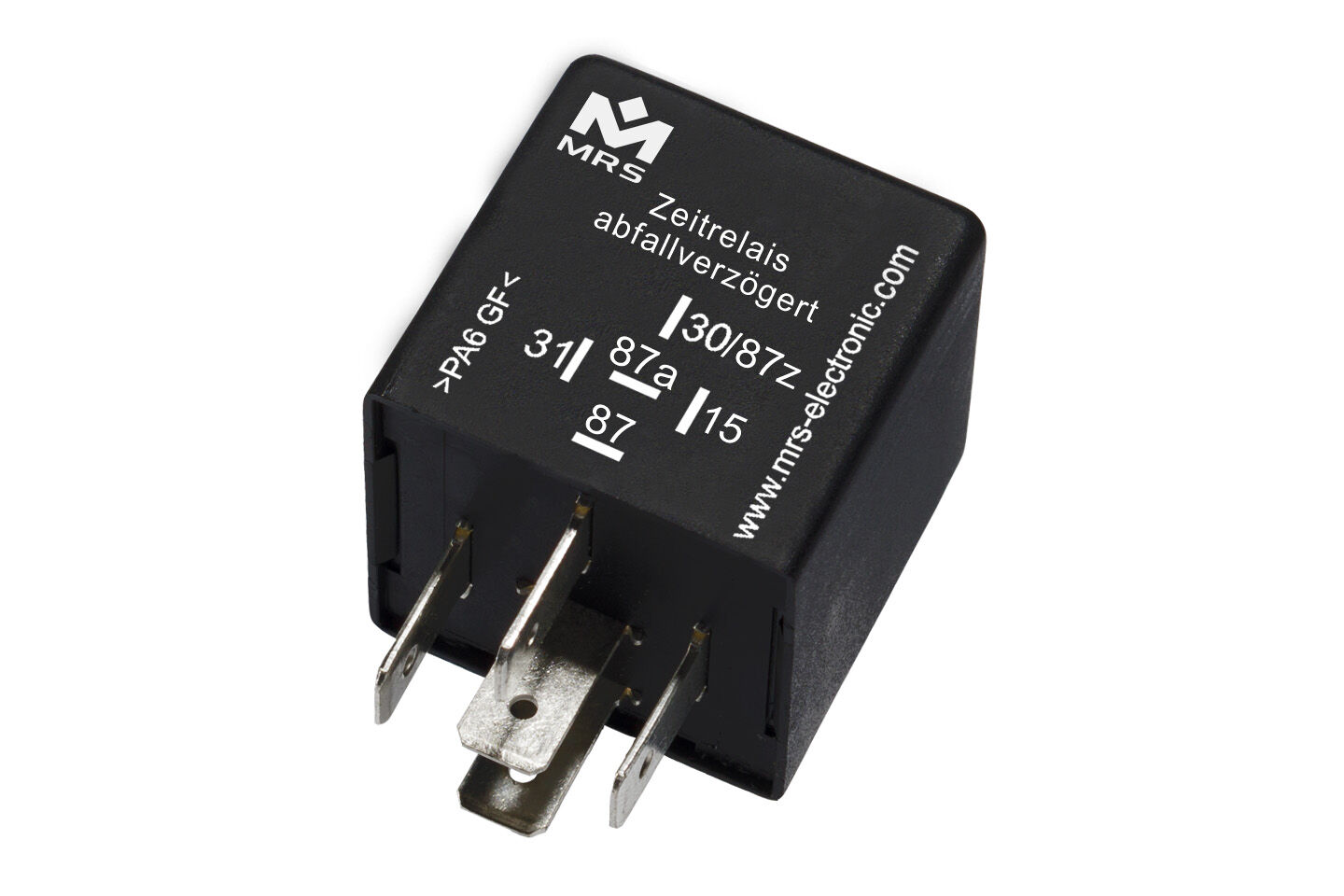

Time Relay M1 compact SW off Delay 12 V

Article number : 1.003.18y.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Quiescent current (12V):  1 mA
  • Switching current:  20 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M1 compact SW on/off Delay 12 V

Article number : 1.003.18z.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Quiescent current (12V):  1 mA
  • Switching current:  20 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M3 Switch on Delay 12 V

Article number : 1.003.19x.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 20 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M3 Switch off Delay 12 V

Article number : 1.003.19y.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 20 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay Switch on/off Delay 12 V

Article number : 1.003.19z.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M1 compact Switch on Delay 24 V

Article number : 1.003.28x.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  15 A NC / 15 A NO
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M1 Compact Switch off Delay 24 V

Article number : 1.003.28y.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  15 A NC / 15 A NO
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M1 compact Switch on/off Delay 24 V

Article number : 1.003.28z.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  15 A NC / 15 A NO
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M3 Switch on Delay 24 V

Article number : 1.003.29x.xx

  • Operating voltage:  14-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 15 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time relay off-delay M3 24V

Article number : 1.003.29y.xx

  • Operating voltage:  14-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 15 A
  • Switching cycles:  100000
  • IP rating:  IP53

Timer Relay with On/Off Delay 24V

Article number : 1.003.29z.xx

  • Operating voltage:  14-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 15 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay Adjustable Switch On Delay 12V

Article number : 1.022.11y.xx

  • Operating voltage:  10-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 5 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay Adjustable Switch Off Delay 12V

Article number : 1.022.11z.xx

  • Operating voltage:  10-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 5 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay Adjustable Switch On Delay 24V

Article number : 1.022.21y.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 10 A / NC 5 A
  • Switching cycles:  50000
  • IP rating:  IP53

Time Relay Adjustable Switch Off Delay 24V

Article number : 1.022.21z.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 10 A / NC 5 A
  • Switching cycles:  50000
  • IP rating:  IP53

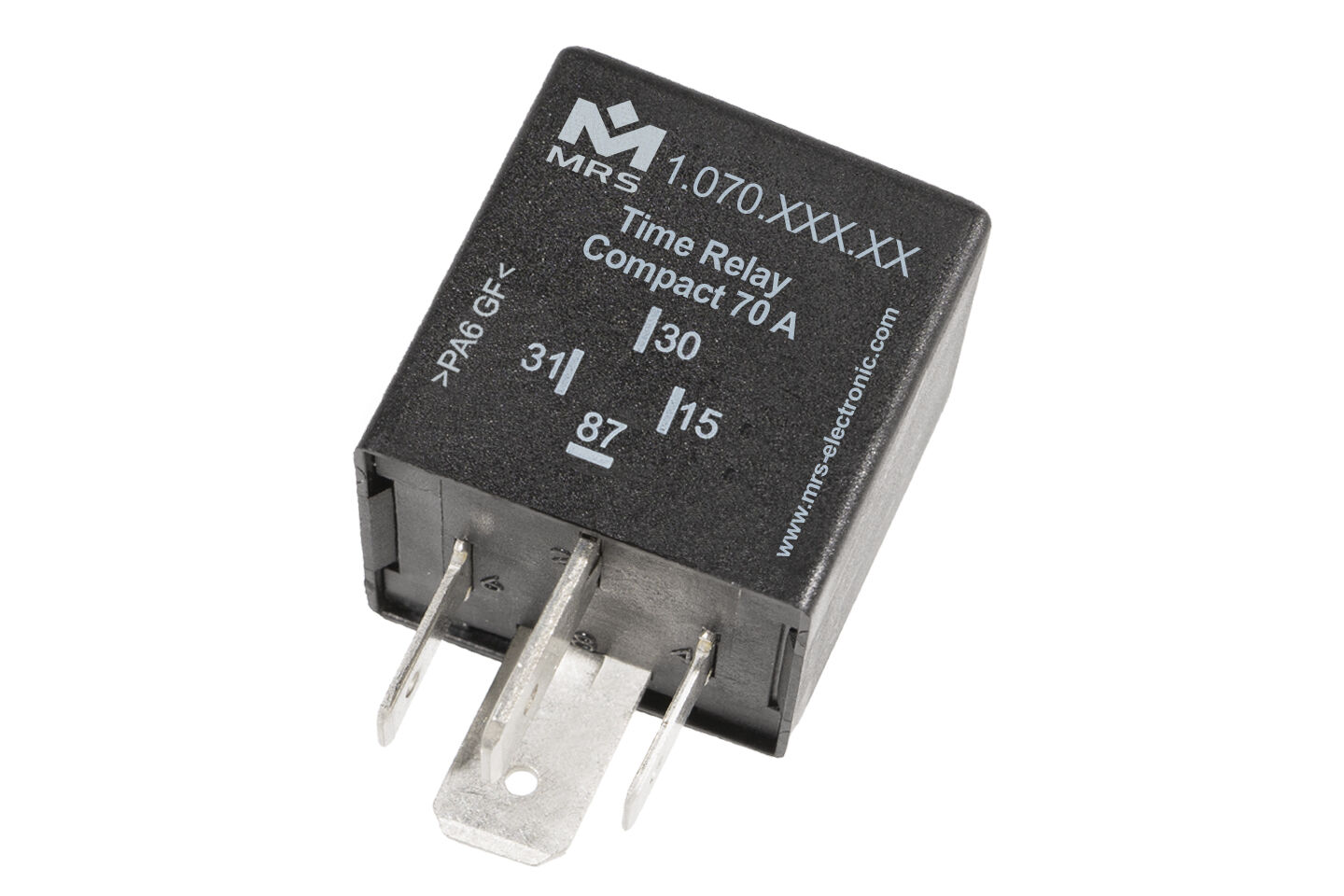

Time Relay Compact 70 A

Article number : 1.070

  • Operating voltage:  6.5-32 V
  • Outputs (total):  1
  • Relay outputs:  1
  • IP rating:  IP53
