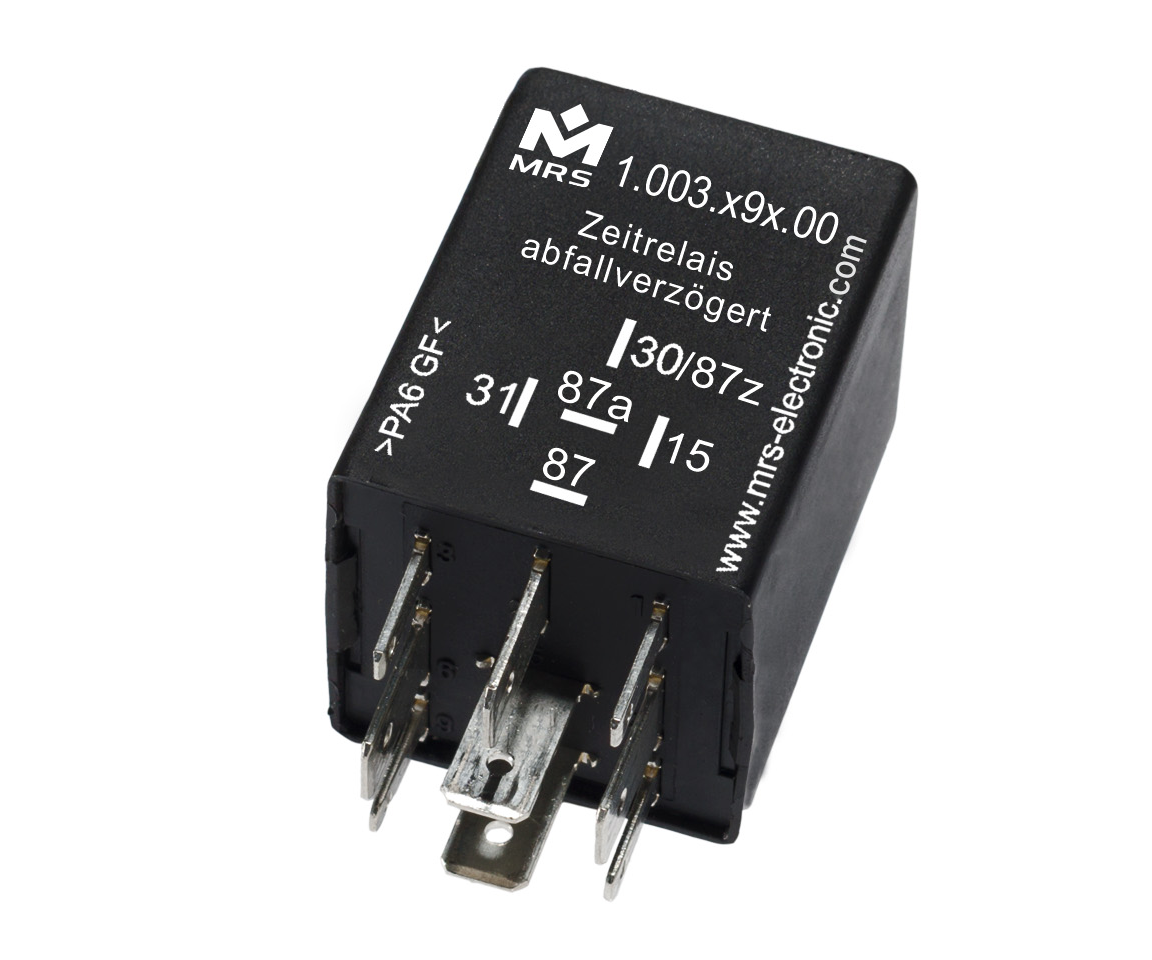

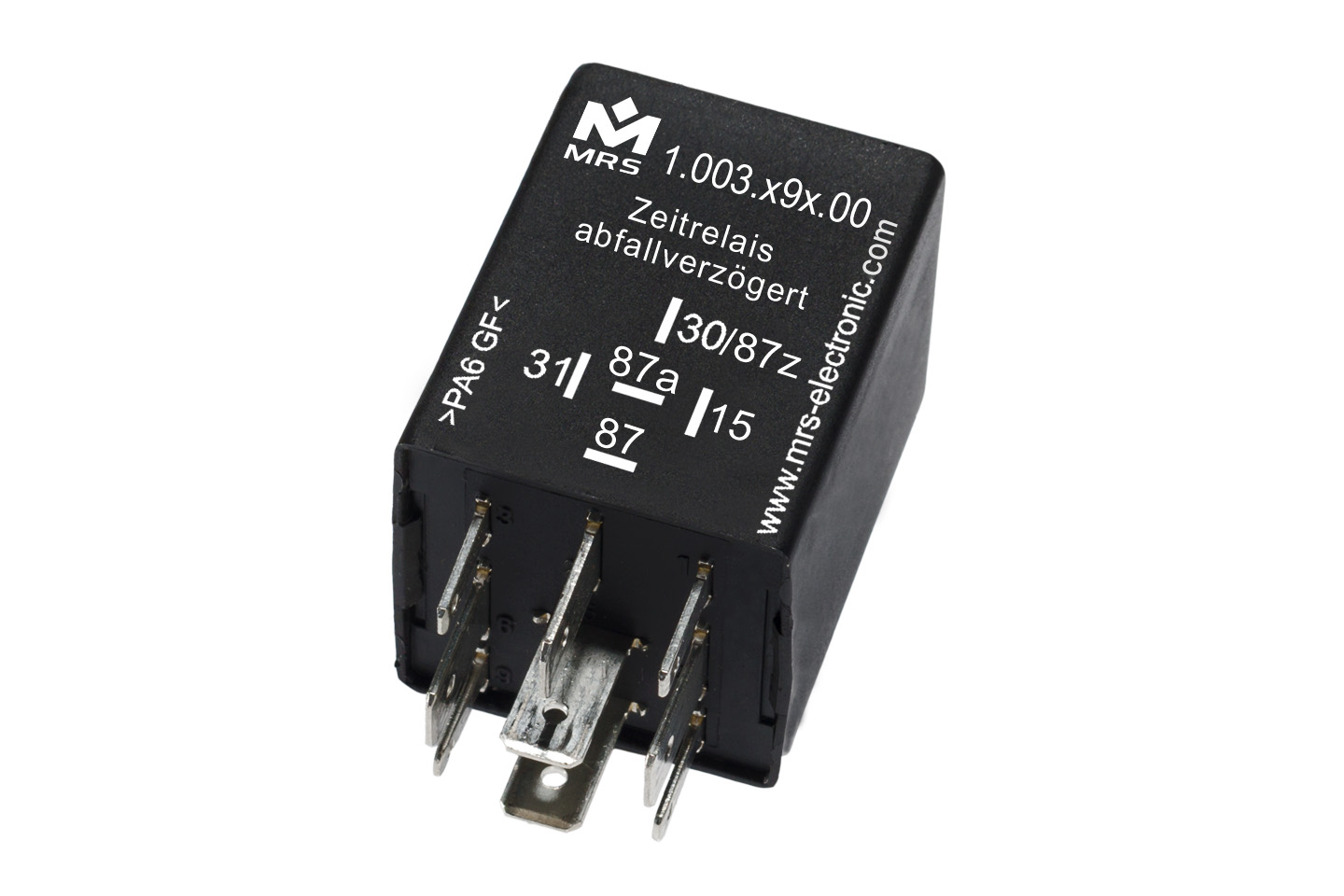

Time Relay M3 Switch off Delay 12 V

Time relays with switch off delay switch on the load after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will immediately pull on. If the voltage is removed at Terminal 15, the relay will fall off after the specified time has elapsed.

Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and thus capable of switching alternating voltage. Circuit diagram S4: The relay does not consume a quiescent current by the diode circuitry after the drop. Variant S4 only 10/15a (ö/s). Housing forms can be found in the section housing and basic body.

Downloads

Data Sheet for M3 Time Relay Operating Instructions for Time Relays M3 Time Relay STEP File

Time Relay M3 Switch off Delay 12 V

Connection diagram S1

Connection diagram S2

Connection diagram S3

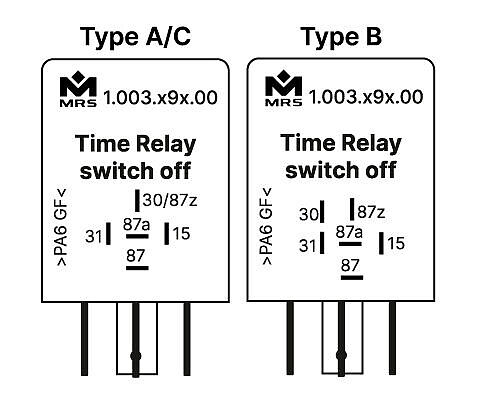

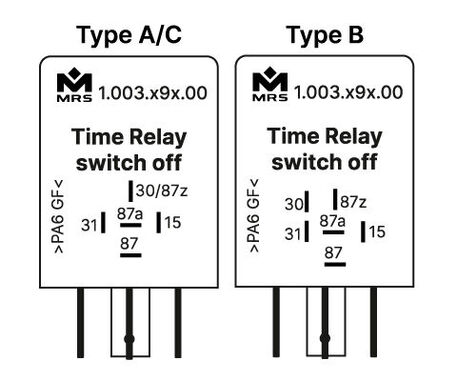

Design

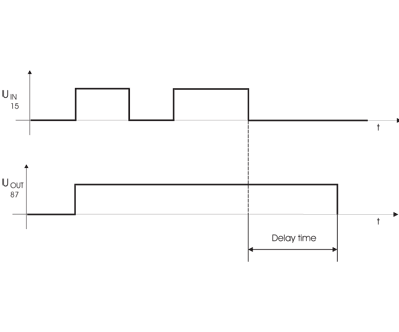

Function diagram

Technical details

Inputs and Outputs

Number of pins	5
In-/Outputs (total)	2
Inputs (total)	1
Inputs (digital)	1
Outputs (total)	1
Relay outputs	1
Switching current	NO 20 A / NC 15 A

Mechanical Properties

IP rating	IP53
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm
Switching cycles	100000

Programming

Programming software	MRS Realizer

General

Temperature range	-40 to +85°C
Operating voltage	9-16 V
Current consumption	2 ± 1 mA

Markings

Order options

Order no.	Name
1.003.191.xx (1003191xx)	Individual delay time, Type A, Connection S1
1.003.192.xx (1003192xx)	Individual delay time, Type B, Connection S2
1.003.120.xx (1003120xx)	Individual delay time, Type C, Connection S4, Basis Micro SPS
