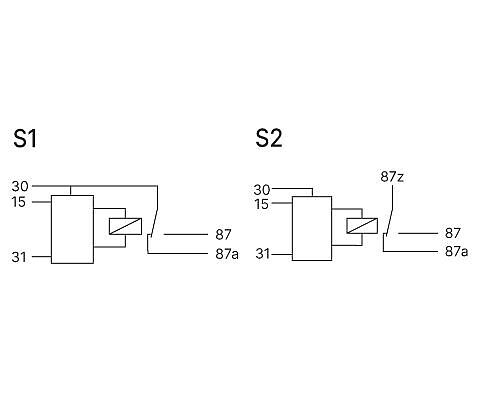

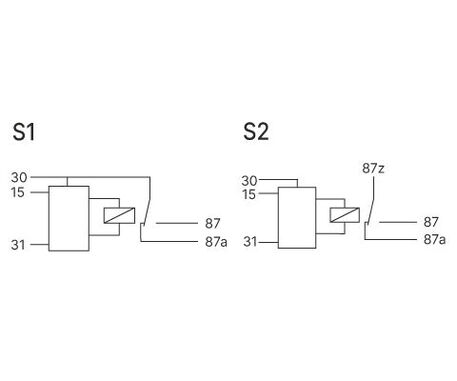

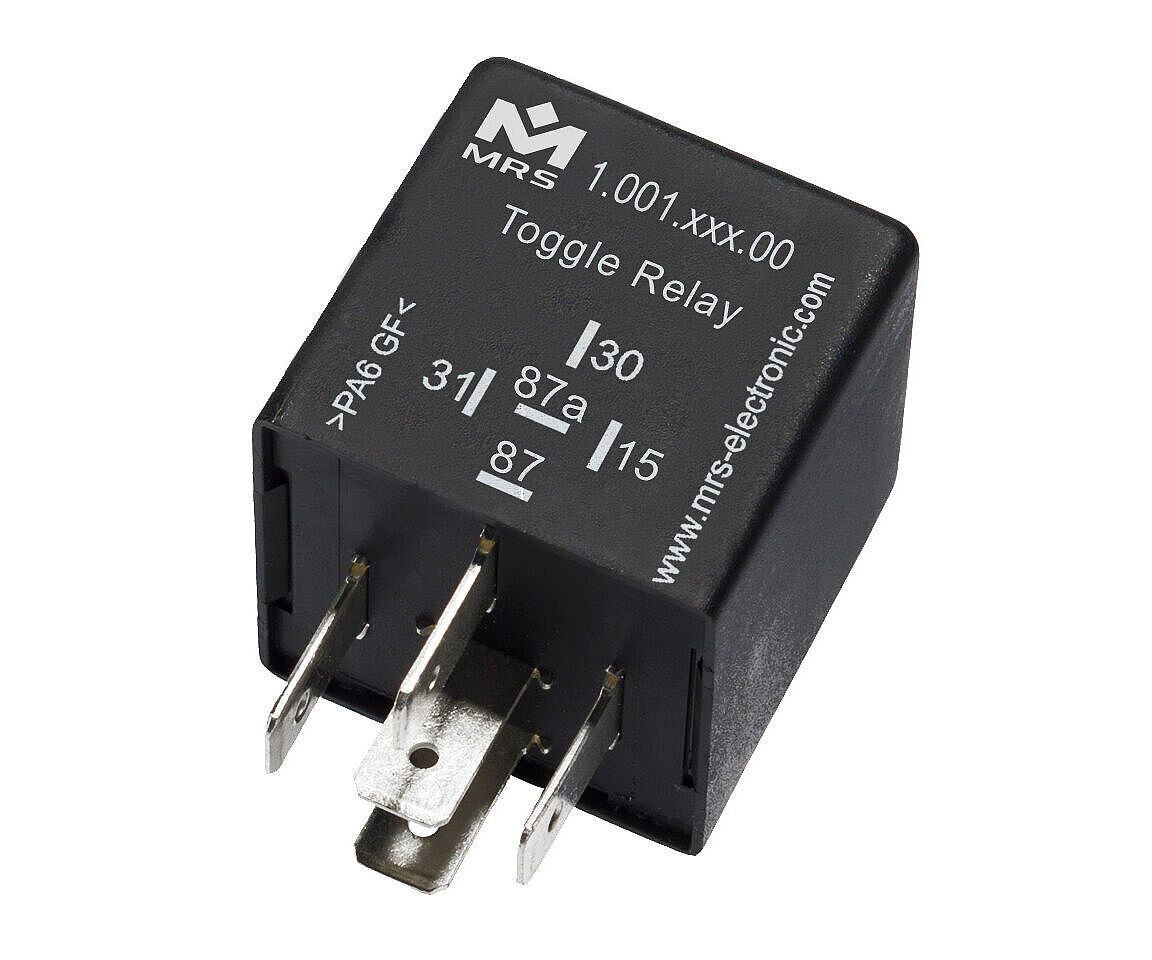

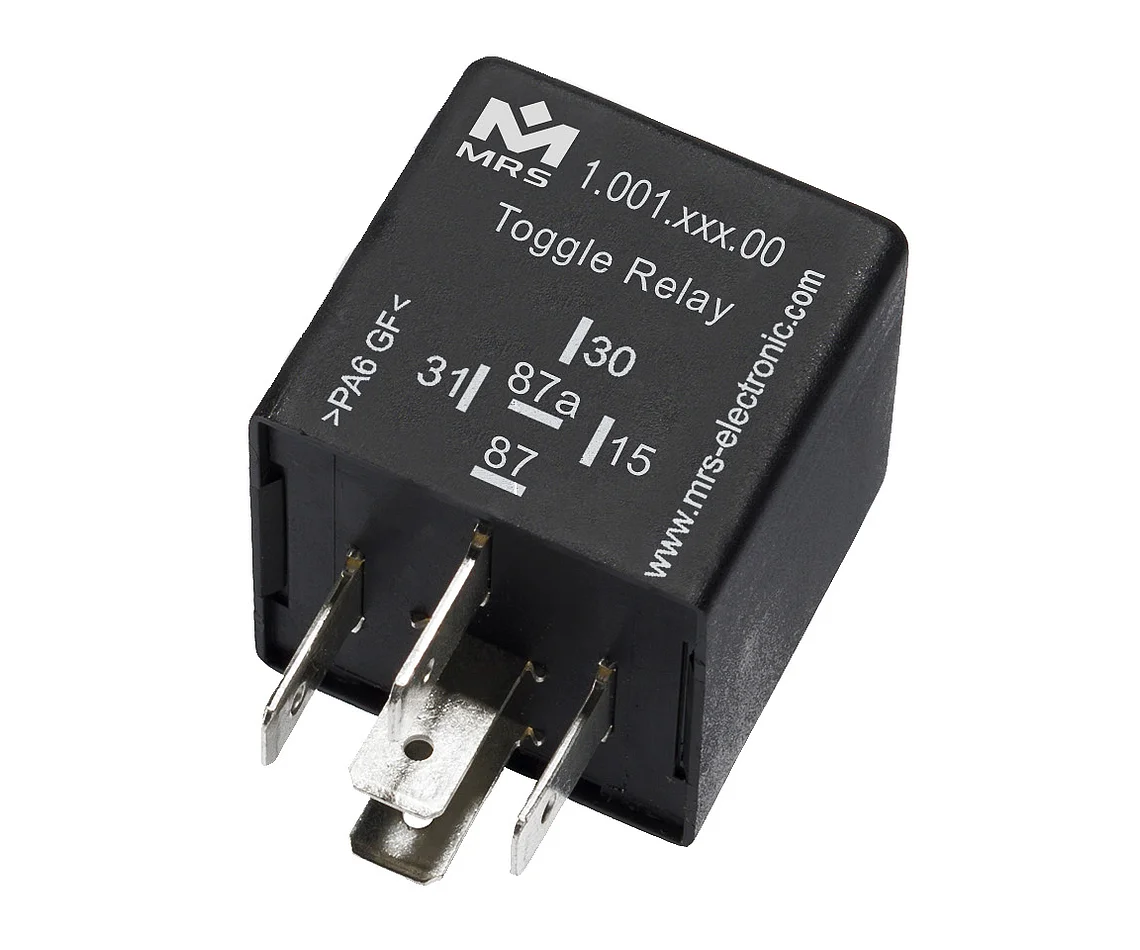

Toggle Relays are used to switch loads on and off via pushbutton operation. Circuit diagram S1: With the step switching relay a consumer can be switched via a button. If a positive/negative impulse is applied to Terminal 15, the relay switches and holds itself. Another impulse is switched on again (Power surge switch or toggle flip-flop). The terminal 15 is debounced.
Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.
Number of pins | 5 |
---|---|
In-/Outputs (total) | 2 |
Inputs (total) | 1 |
Inputs (digital) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Switching current | 15 A NC / 15 A NO |
IP rating | IP53 |
---|---|
Housing material | PA66GF30 |
Dimensions | 30 × 30 × 30 mm |
Switching cycles | 100000 |
Programming software | MRS Realizer |
---|
Temperature range | -40 to +85°C |
---|---|
Operating voltage | 16-32 V |
Current consumption | 2 mA |
Order no. | Name |
---|---|
1.001.281.00 (100128100) |

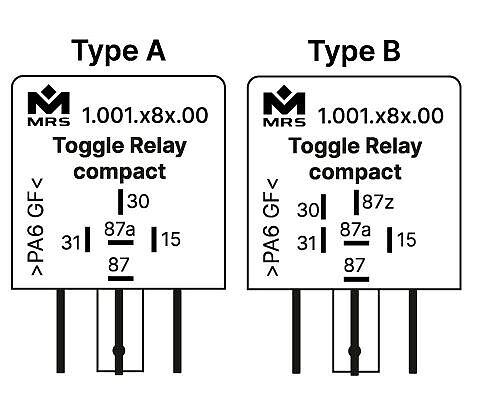

30A positive edge triggered, Type A, Connection S1
|
1.001.282.00 (100128200) |
30A negative edge triggered, Type A, Connection S1
|
1.001.283.00 (100128300) |
30A positive edge triggered, Type B, Connection S2
|
1.001.284.00 (100128400) |
30A negative edge triggered, Type B, Connection S2
|
