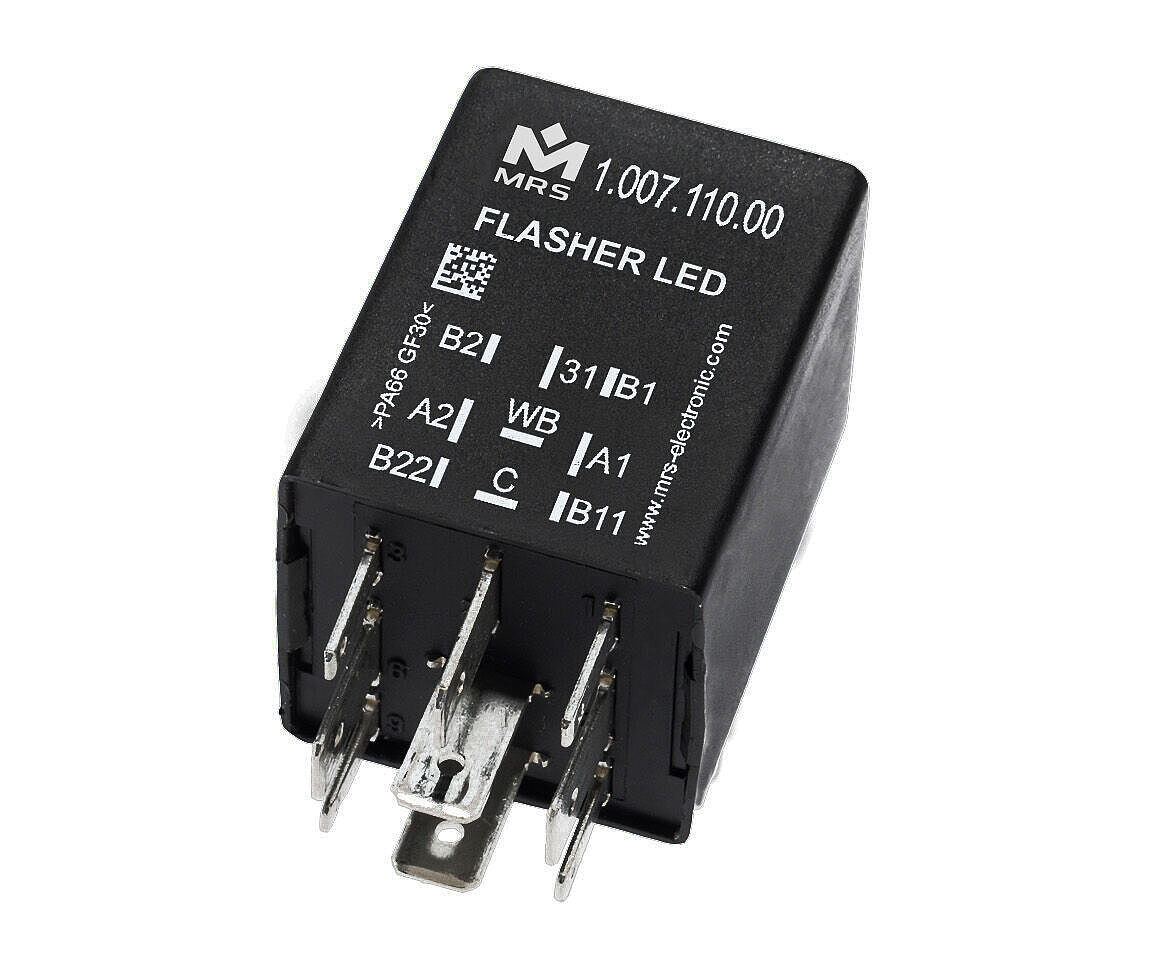

Universal Flasher LED 24V
go to order options (100721x)

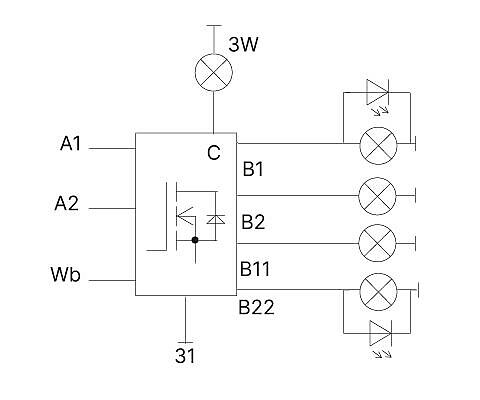

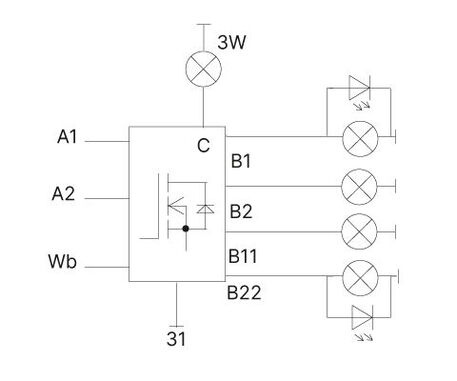

The Universal Flasher LED is suitable for LED lights and lights with incandescent lamps. This flasher unit supports left/right turn signals as well as hazard warning lights doubling flasher frequency in case of LED/lamp failure. Terminal C is the turn signal LED/lamp control output. If lights fail during flasher mode the flashing frequency on terminal C doubles (C2 function).
The Universal Flasher LED is suitable for LED lights and lights with incandescent lamps. This flasher unit supports left/right turn signals as well as hazard warning lights doubling flasher frequency in case of LED/lamp failure. Terminal C is the turn signal LED/lamp control output. If lights fail during flasher mode the flashing frequency on terminal C doubles (C2 function).
Downloads
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 8 |
| Inputs (total) | 3 |
| Inputs (digital) | 3 |
| Outputs (total) | 5 |
| Outputs (digital) | 5 |
| Output type high side | 4 |
| Output type low side | 1 |
| Switching current | 4 x 2 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 16-32 V |
| Blink frequency | 90 +/-30 Impulse/min |
Order options
| Order no. | Name |
|---|---|
| 1.007.210.00 (100721000) |
Universal Flasher LED 24V
|
