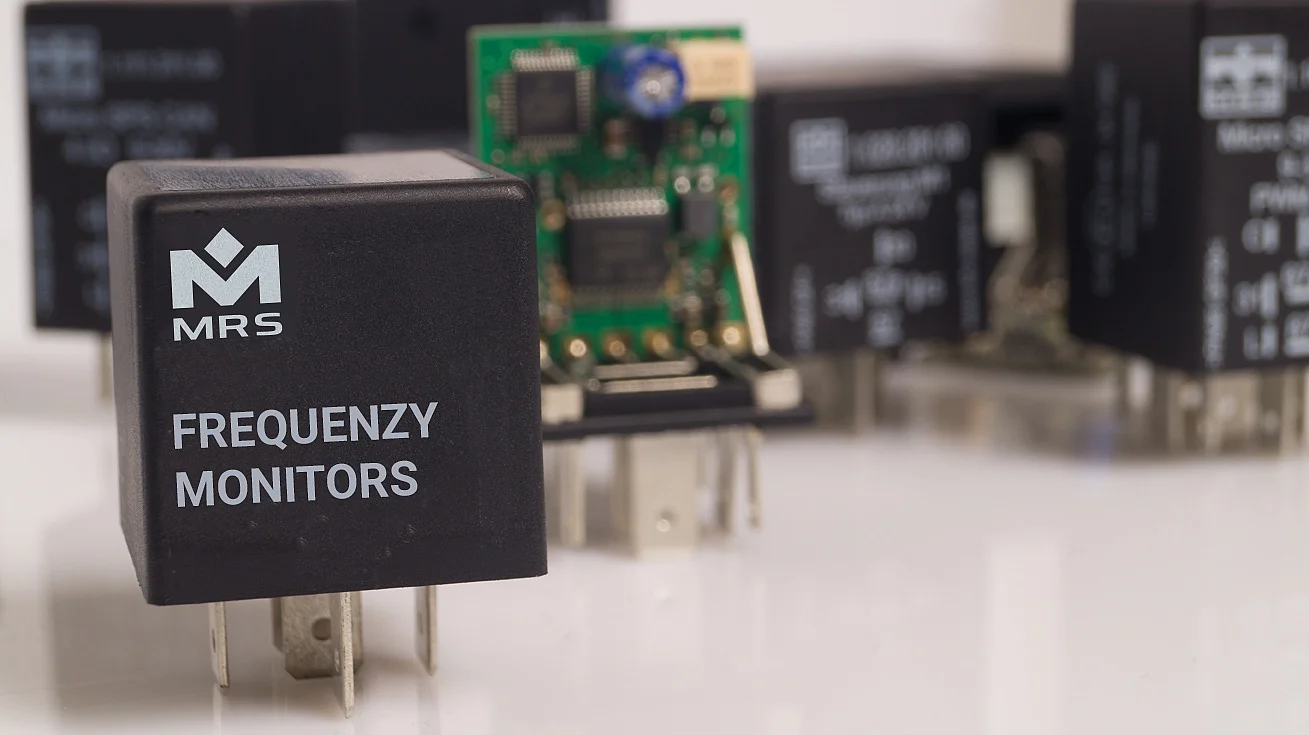

Frequency Monitors

Frequency monitors are relays that switch the connected loads on or off when a predefined frequency threshold is exceeded or not reached. You can learn more about the different versions of our frequency monitors here.

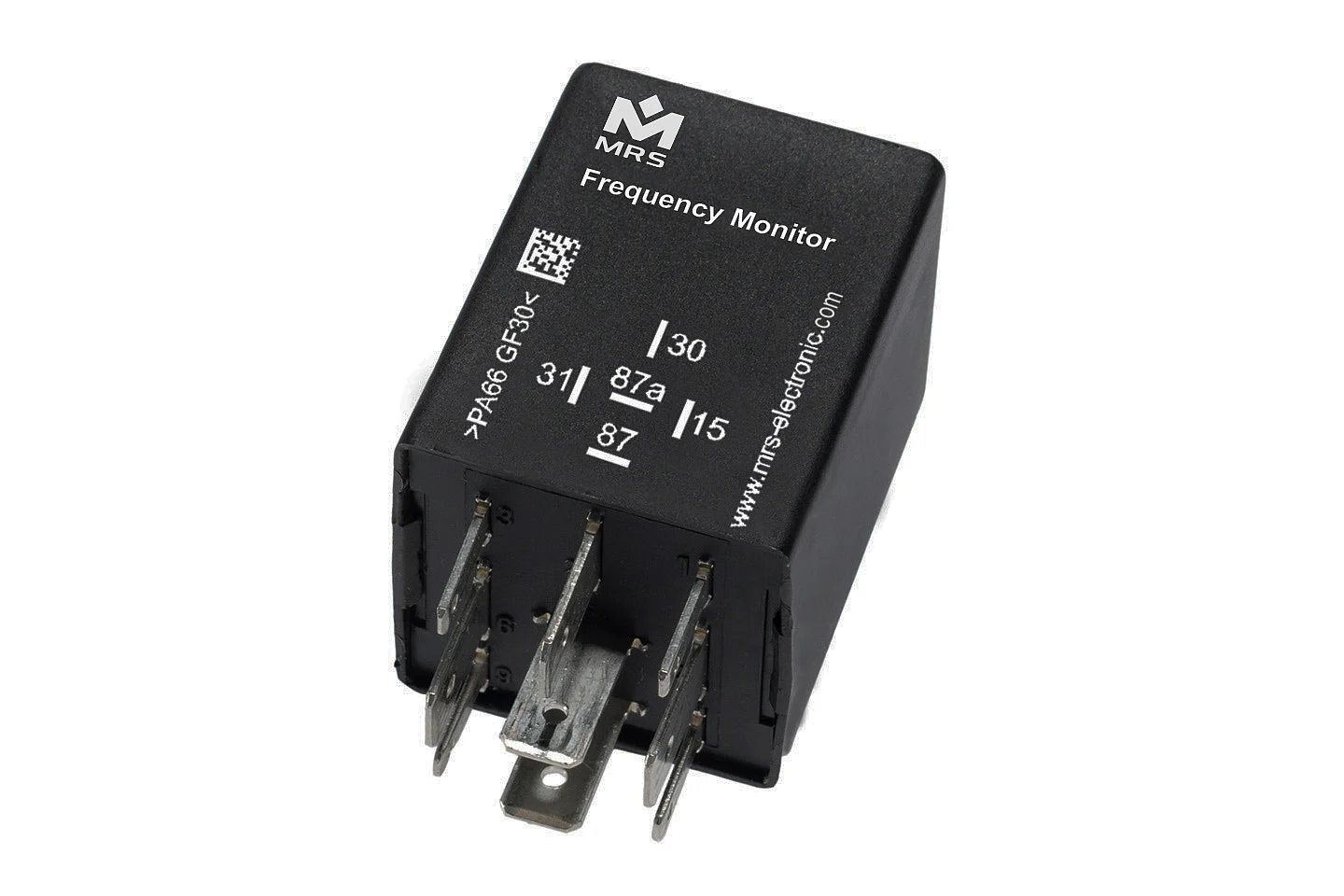

Frequency Monitor 12V

Article number : 1.026.1x

Operating voltage: 10-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 5 A
Switching cycles: 100000
IP rating: IP53

Frequency Monitor 24V

Article number : 1.026.2x

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 10 A / NC 5 A
Switching cycles: 50000
IP rating: IP53

Frequency Monitor 9-30V

Article number : 1.026.3x

Operating voltage: 6-32 V
Outputs (total): 1
Number of pins: 5
Switching current: 7.5 A
IP rating: IP53
