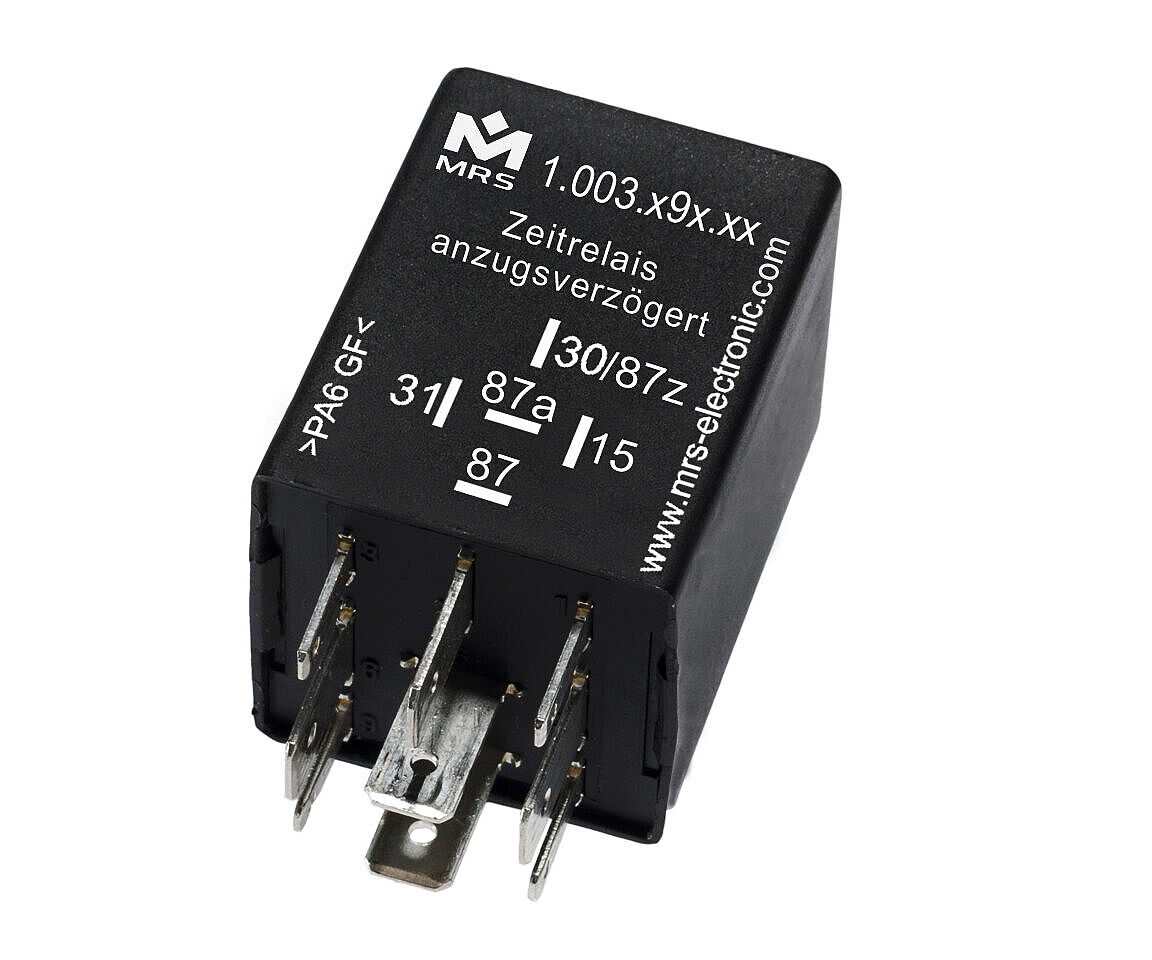

Time Relay M3 Switch on Delay 12 V

Time relay with switch on delay M3 switches on the load after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is set at terminal 15, the relay will pull on at the end of the specified time. If the voltage is removed at terminal 15, the relay immediately drops off.

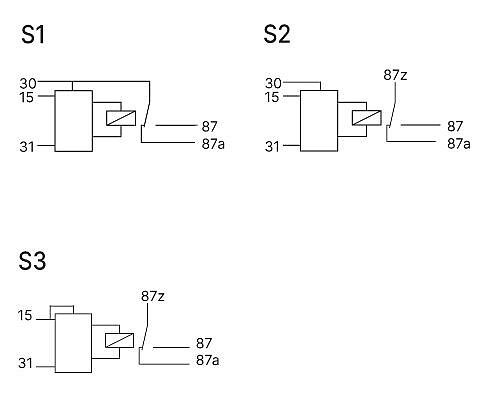

Circuit diagram S2 and S3: The contacts are separate from the control and can therefore be used in links. With the Variants S2 and S3, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.

Downloads

Data sheet Time Relay M3 M3 Time Relay STEP File

Time Relay M3 Switch on Delay 12 V

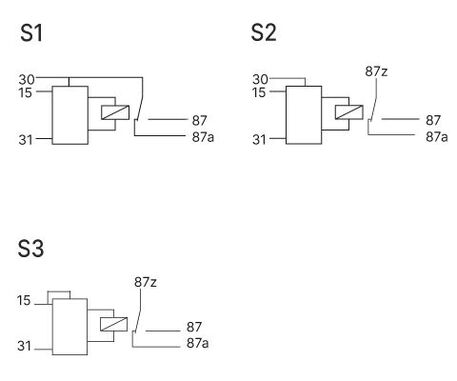

Connection diagram

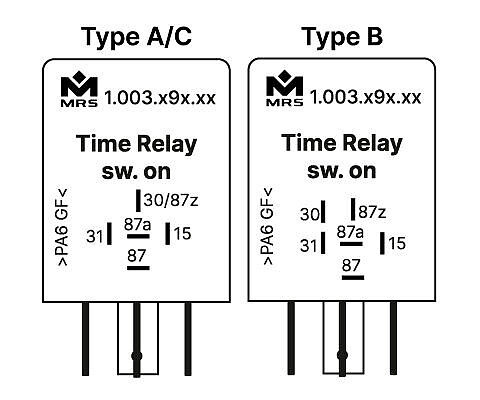

Design

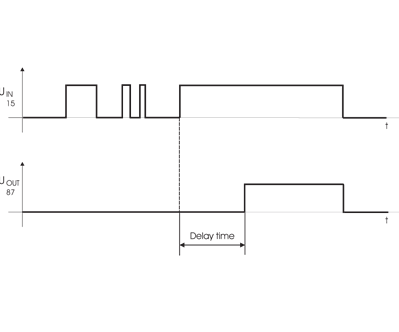

Function diagram

Technical details

Inputs and Outputs

Number of pins	5
In-/Outputs (total)	2
Inputs (total)	1
Inputs (digital)	1
Outputs (total)	1
Relay outputs	1
Switching current	NO 20 A / NC 15 A

Mechanical Properties

IP rating	IP53
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm
Switching cycles	100000

Programming

Programming software	MRS Realizer

General

Temperature range	-40 to +85°C
Operating voltage	9-16 V
Current consumption	2 ± 1 mA

Markings

Order options

Order no.	Name
1.003.194.xx (1003194xx)	Individual delay time, Type A, Connection S1
1.003.195.xx (1003195xx)	Individual delay time, Type B, Connection S2
1.003.193.xx (1003193xx)	Individual delay time, Type C, Connection S3
