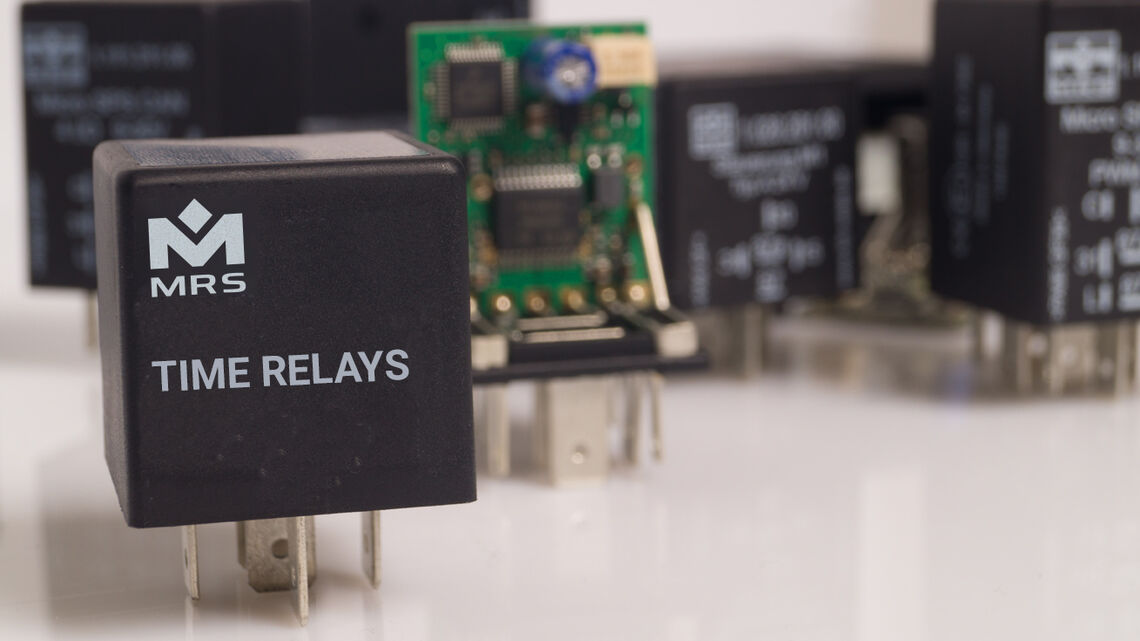

Time Relays

With our electronic time relays, you can switch connected load devices on or off after a predefined time. Our time relays are available in different versions, sizes, and voltages. One product group even offers you the option of manually setting the on or off delay.

Time Relay M1 compact SW on Delay 12 V

Article number : 1.003.18x.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact SW off Delay 12 V

Article number : 1.003.18y.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact SW on/off Delay 12 V

Article number : 1.003.18z.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Time Relay M3 Switch on Delay 12 V

Article number : 1.003.19x.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 20 A / NC 15 A
Switching cycles: 100000
IP rating: IP53

Time Relay M3 Switch off Delay 12 V

Article number : 1.003.19y.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 20 A / NC 15 A
Switching cycles: 100000
IP rating: IP53

Time Relay Switch on/off Delay 12 V

Article number : 1.003.19z.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 15 A
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact Switch on Delay 24 V

Article number : 1.003.28x.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Time Relay M1 Compact Switch off Delay 24 V

Article number : 1.003.28y.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact Switch on/off Delay 24 V

Article number : 1.003.28z.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Time Relay M3 Switch on Delay 24 V

Article number : 1.003.29x.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: IP53

Time relay off-delay M3 24V

Article number : 1.003.29y.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: IP53

Timer Relay with On/Off Delay 24V

Article number : 1.003.29z.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: IP53

Time Relay Adjustable Switch On Delay 12V

Article number : 1.022.11y.xx

Operating voltage: 10-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 5 A
Switching cycles: 100000
IP rating: IP53

Time Relay Adjustable Switch Off Delay 12V

Article number : 1.022.11z.xx

Operating voltage: 10-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 5 A
Switching cycles: 100000
IP rating: IP53

Time Relay Adjustable Switch On Delay 24V

Article number : 1.022.21y.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 10 A / NC 5 A
Switching cycles: 50000
IP rating: IP53

Time Relay Adjustable Switch Off Delay 24V

Article number : 1.022.21z.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 10 A / NC 5 A
Switching cycles: 50000
IP rating: IP53

Time Relay Compact 70 A

Article number : 1.070

Operating voltage: 6.5-32 V
Outputs (total): 1
Relay outputs: 1
IP rating: IP53
