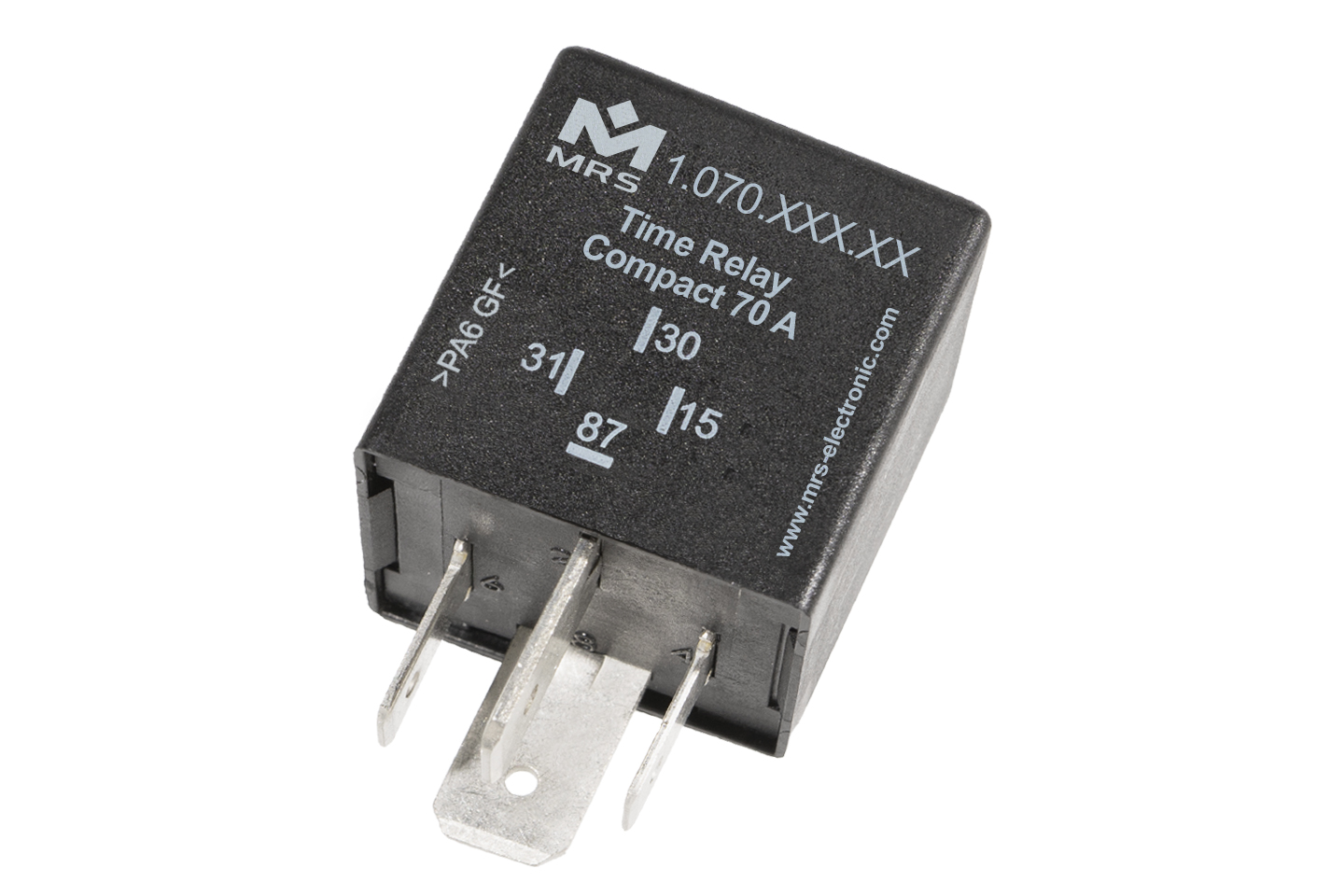

Time Relay Compact 70 A
1.070 (1070)
The compact high-current timer relay – ON/OFF delayed 9-30V/70A is a small, powerful and cost-effective controller that is characterized by even higher performance than the M1 controller (M1HC).
In addition to the compact time relay, this compact version also has an impulse relay, a stepping relay, a flasher and other functions on request. The functions mentioned are stored by default and only need to be configured and parameterized. Programming can be done using the software programming tool MRS Realizer. Of course, the standard functions can also be ordered directly.
Technical details

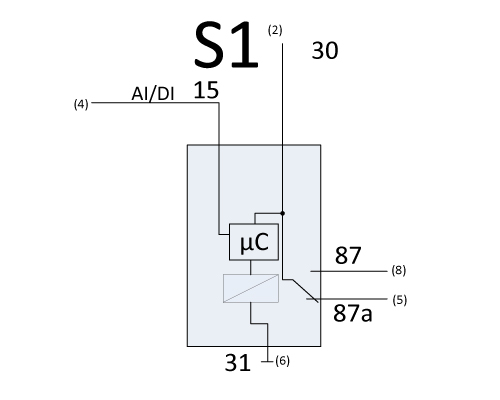

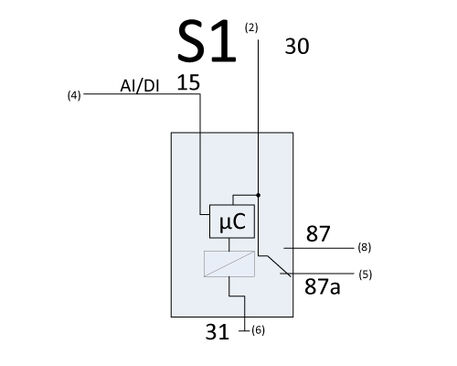

Inputs and Outputs
| In-/Outputs (total) | 2 |
|---|---|
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA 66GF30 |
| Dimensions | 30 × 30 × 30 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40 °C to +85 °C |
|---|---|
| Operating voltage | 6.5-32 V |
