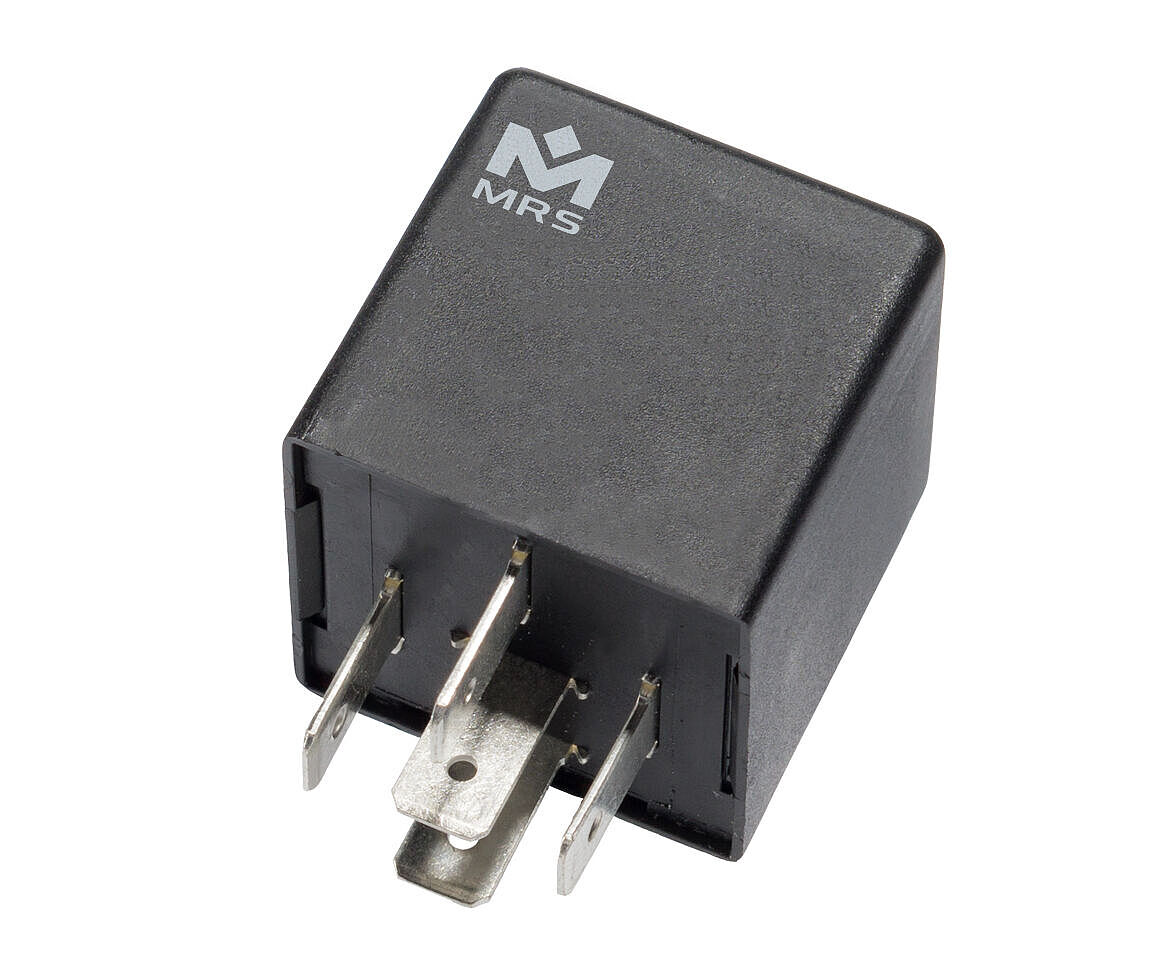

Micro Relay 24V
go to order options (10142xx00)
Please reach out to our MRS customer service for more information about this product.
Technical details
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
General
| Temperature range | -40 to +85°C |
|---|
Markings
Order options
| Order no. | Name |
|---|---|
| 1.014.200.00 (101420000) |

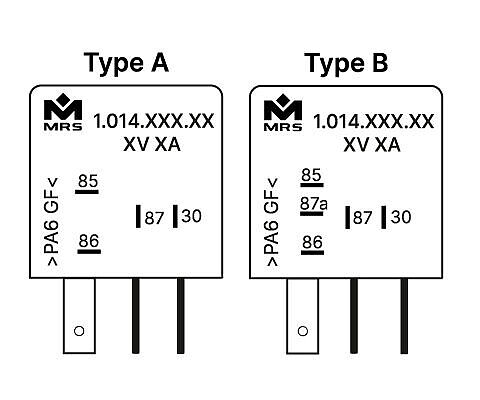

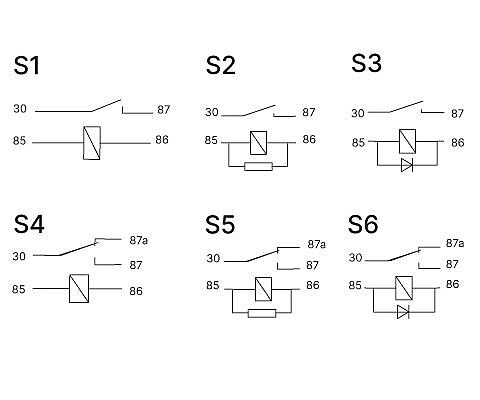

Relay MI W CM1-24V 15/8A Two way contact, Type B, Connection S4
|
| 1.014.202.00 (101420200) |
Relay MI W CM1-R-24V 15/8A Two way contact with resistor, Type B, Connection S5
|
| 1.014.201.00 (101420100) |
Relay MI S CM1A-24V 15A Normally open contact, Type A, Connection S1
|
| 1.014H.204.00 (1014H20400) |
Micro Relay W HFV6/024-ZSTD
|
Accessories
