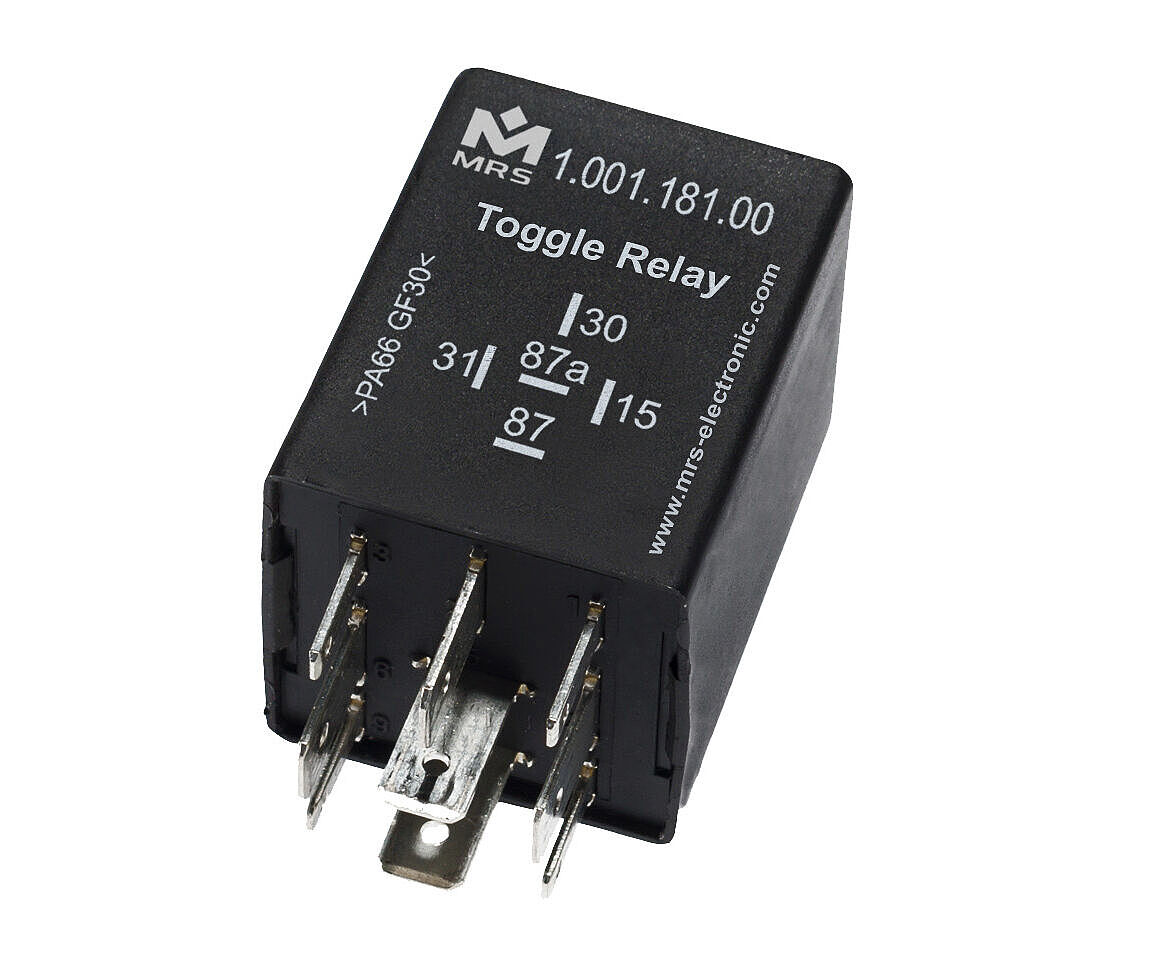

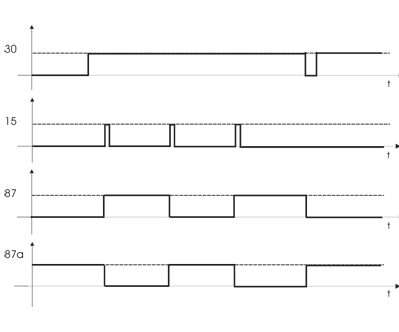

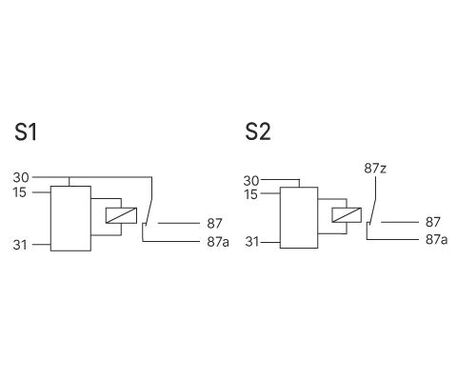

The M3 stepping relay is used for switching loads on and off using touch or button operation. Circuit diagram S1: With the stepping relay, a consumer can be switched via a button. If a positive / negative pulse is applied to terminal 15, the relay switches and holds itself. Another pulse switches again (current surge switch or toggle flip-flop). Terminal 15 is debounced.

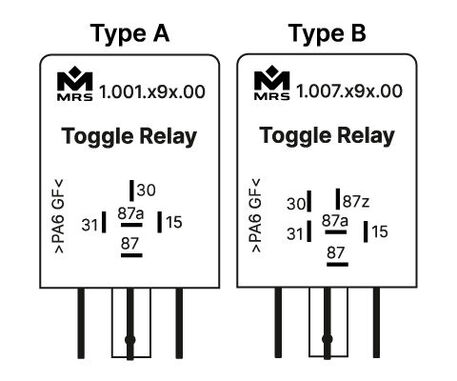

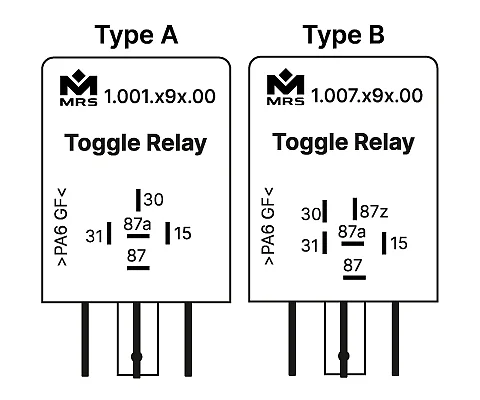

Circuit diagram S2: The contacts are separated from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and is therefore able to switch AC voltage. Housing shapes can be found in the Housing and basic body chapter.
Number of pins | 5 |
---|---|
In-/Outputs (total) | 2 |
Inputs (total) | 1 |
Inputs (digital) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Switching current | NO 20 A / NC 15 A |
IP rating | IP53 |
---|---|
Housing material | PA66GF30 |
Dimensions | 30 × 30 × 40 mm |
Switching cycles | 100000 |
Programming software | MRS Realizer |
---|
Temperature range | -40 to +85°C |
---|---|
Operating voltage | 9-16 V |
Current consumption | 2 ± 1 mA |
Order no. | Name |
---|---|
1.001.191.00 (100119100) |
30A, Positive Edge Control, Type A, Connection S1
|
1.001.192.00 (100119200) |
30A, Negative Edge Control, Type A, Connection S1
|
1.001.193.00 (100119300) |
30A, Positive Edge Control, Type B, Connection S1
|
1.001.194.00 (100119400) |
30A, Negative Edge Control, Type A, Connection S1
|
