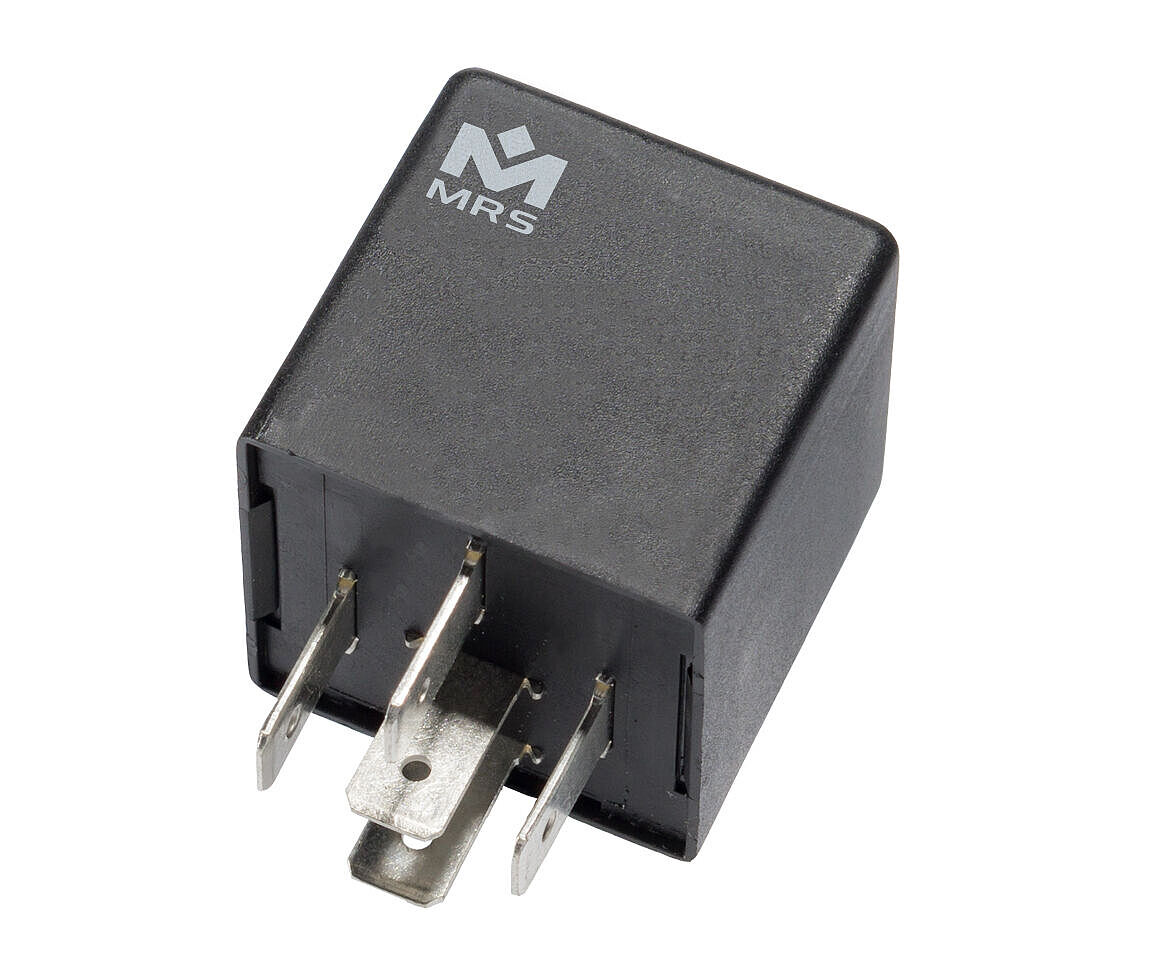

Standard Relay 24V
go to order options (10152xxxxx)
Please reach out to our MRS customer service for more information about this product.
Technical details
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
General
| Temperature range | -40 to +85°C |
|---|
Order options
| Order no. | Name |
|---|---|
| 1.015.203.00 (101520300) |

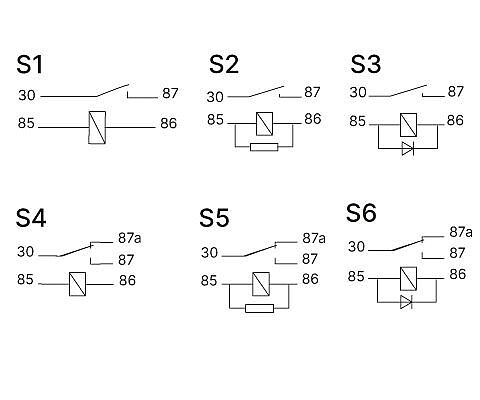

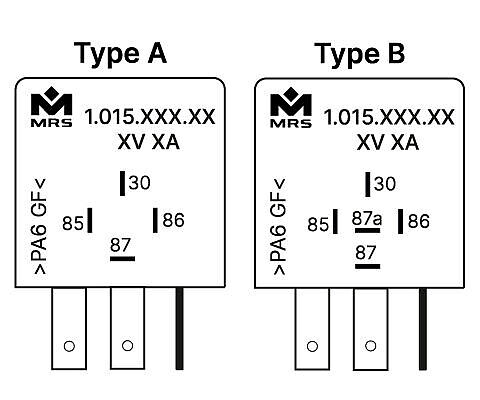

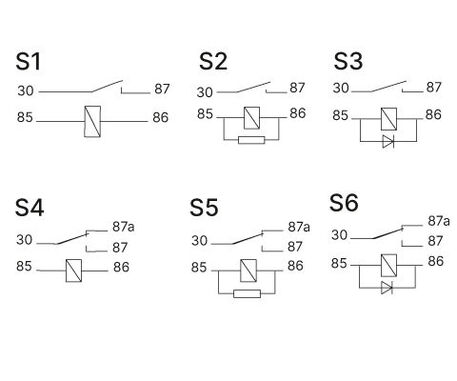

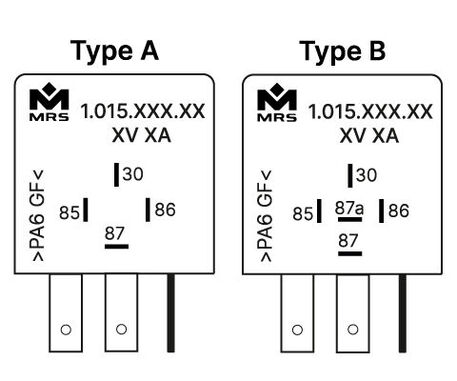

Relay ST S CB1A-R-24V 20A Normally open contact with resistor, Type A, Connection S2
|
| 1.015.205.00 (101520500) |
Relay S HFV4/024-1H1SGD2, Normally open contact with diode, Type A, Connection S3
|
| 1.015.200.00 (101520000) |
Relay ST W CB1-24V 20/10A Two way contact, Type B, Connection S4
|
| 1.015.202.00 (101520200) |
Relay ST W CB1-R-24V 20/10A Two way contact with resistor, Type B, Connection S5
|
| 1.015.253.00 (101525300) |
Relay V23134-A0053-C643 24V 20/15A Two way contact, Type B, Connection S4
|
| 1.015.204.00 (101520400) |
Relay W HFV4/024-1Z1SGD2, Two way contact with diode, Type B, Connection S6
|
