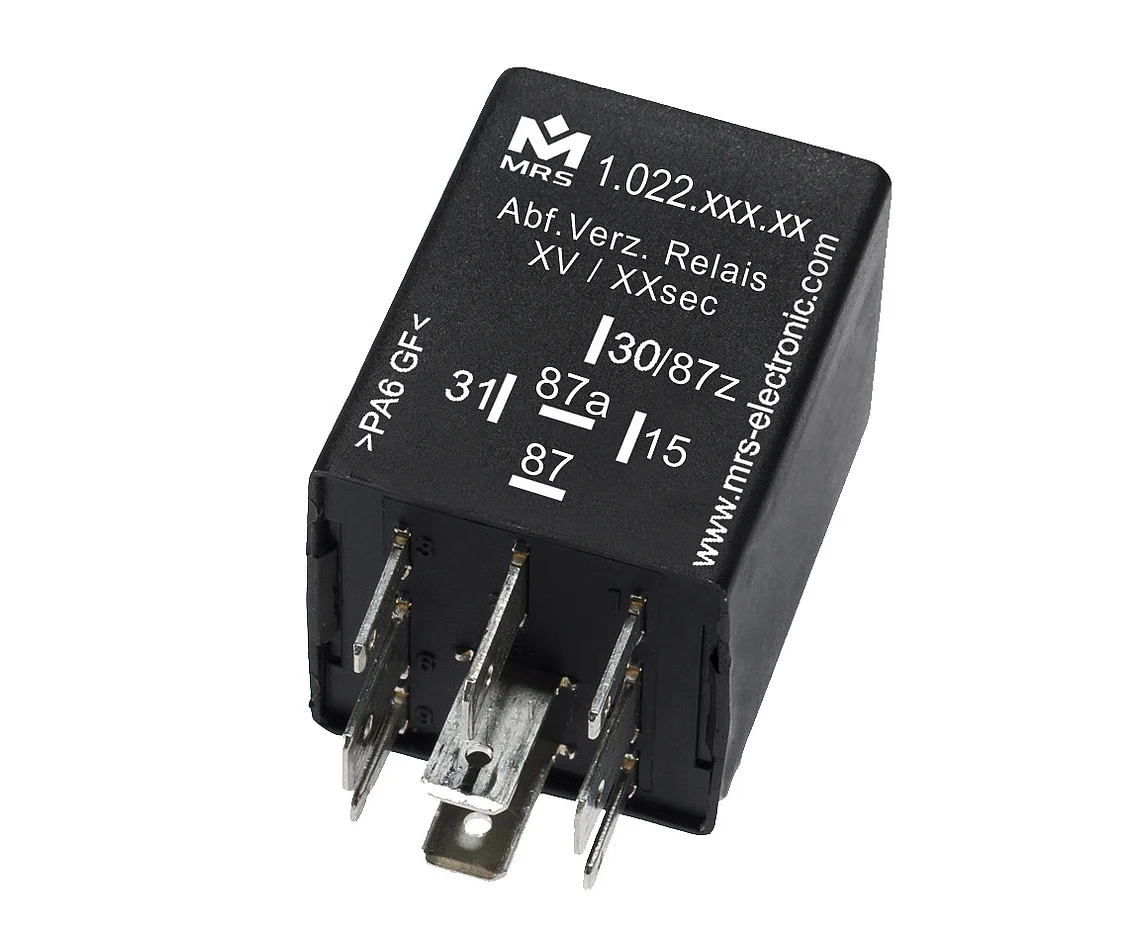

Time Relay Adjustable Switch Off Delay 24V

With adjustable time relays the exact delay time can be set via potentiometer within the selected time range. You can choose from five time ranges by default (see table). We realize other time ranges on request. Please specify the desired time range when ordering.

All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will immediately pull on. If the voltage is removed at Terminal 15, the relay falls off after the set time has elapsed. Circuit diagram S4: The relay does not consume a quiescent current by the diode circuitry after the drop. Housing forms can be found in the section housing and basic body.

Downloads

Operating Instructions for Time Relays

Time Relay Adjustable Switch Off Delay 24V

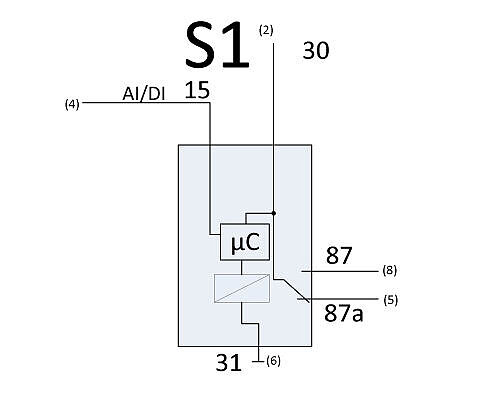

Connection Diagram S1

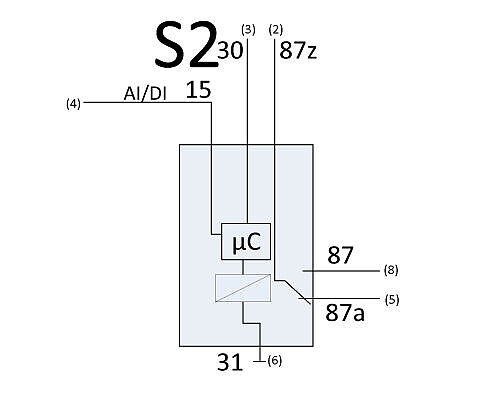

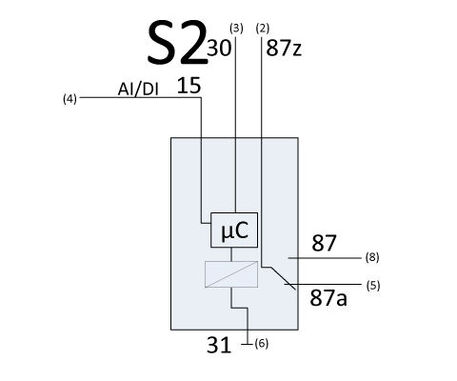

Connection Diagram S2

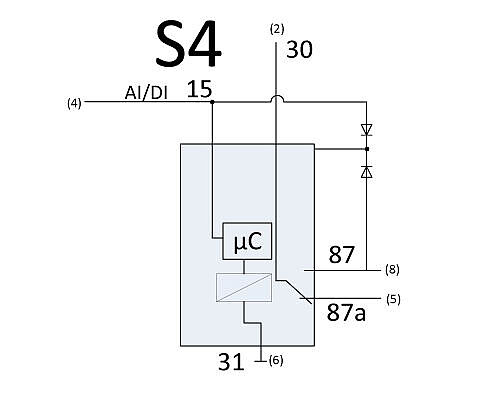

Connection Diagram S4

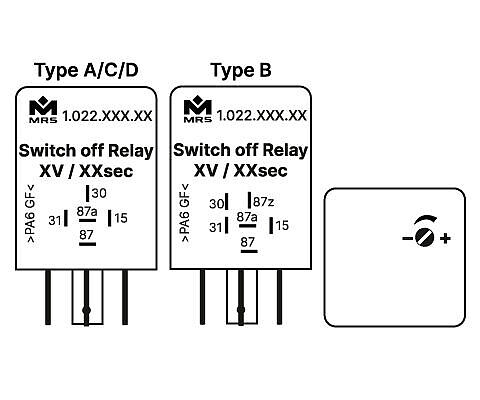

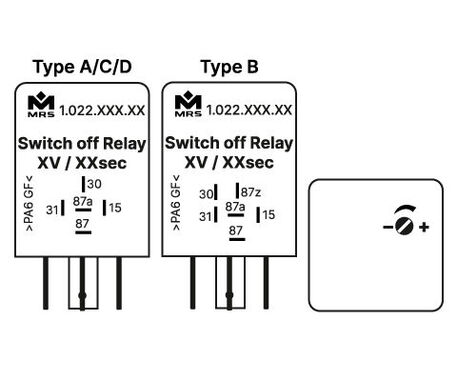

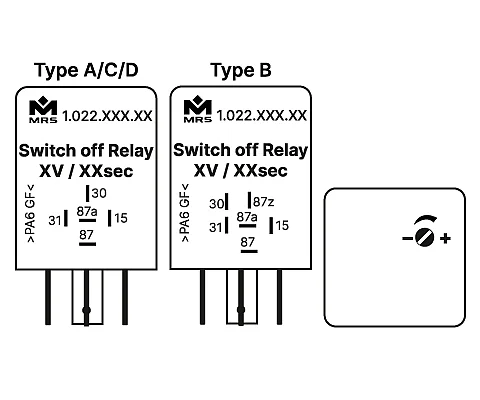

Design

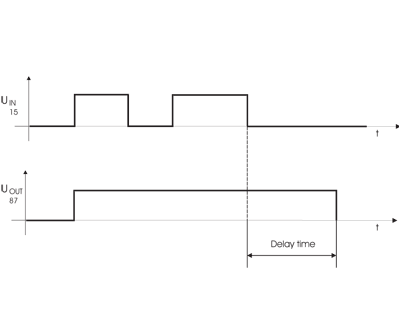

Functional Diagram

Technical details

Inputs and Outputs

Number of pins	5
In-/Outputs (total)	2
Inputs (total)	1
Inputs (digital)	1
Outputs (total)	1
Relay outputs	1
Switching current	NO 10 A / NC 5 A

Mechanical Properties

IP rating	IP53
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm
Switching cycles	50000

Programming

Programming software	MRS Realizer

General

Temperature range	-40 to +85°C
Operating voltage	16-32 V
Current consumption	0.3 mA

Markings

Order options

Order no.	Name
1.022.213.xx (1022213xx)	Individual delay time, Type A, Connection S1
1.022.216.xx (1022216xx)	Individual delay time, Type B, Connection S2
1.022.211.xx (1022211xx)	Individual time delay, Type D, Connection S4
