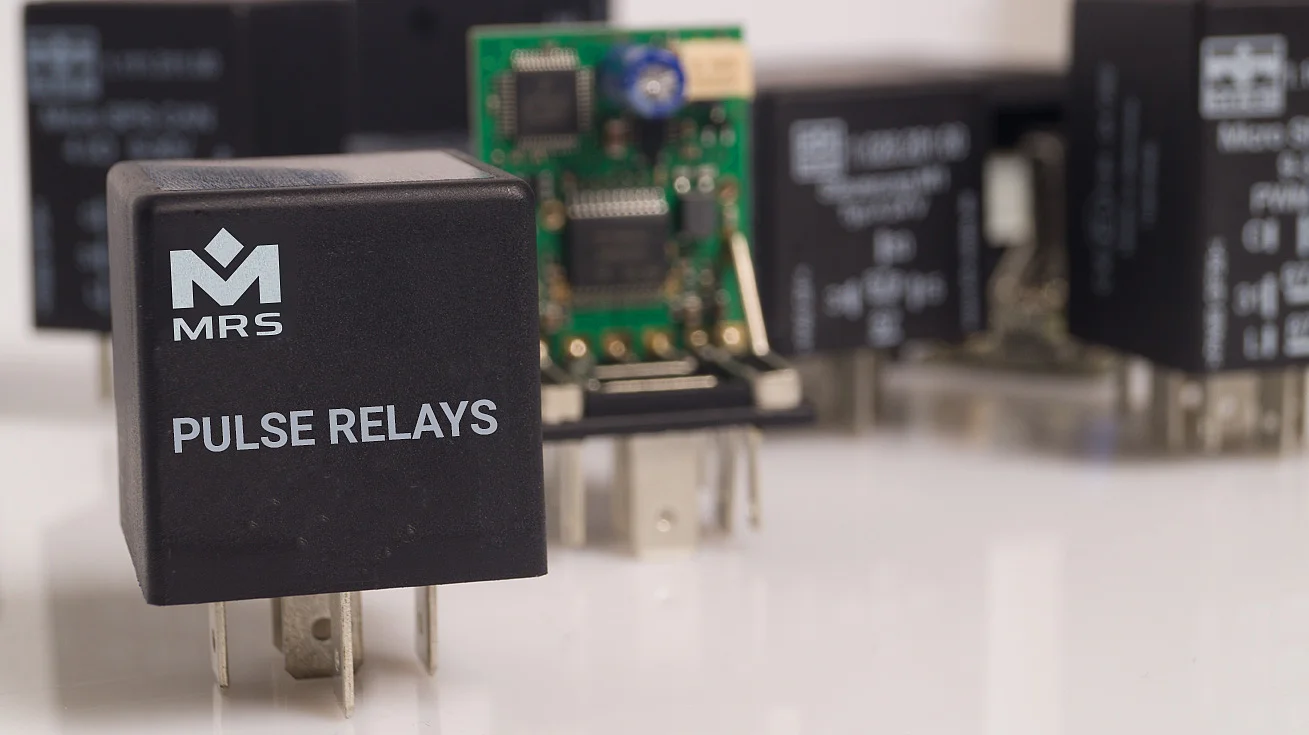

Pulse Relays

Pulse relays are used when consumer devices are to be switched on or off for a time-defined range. We offer numerous modules for different requirements.

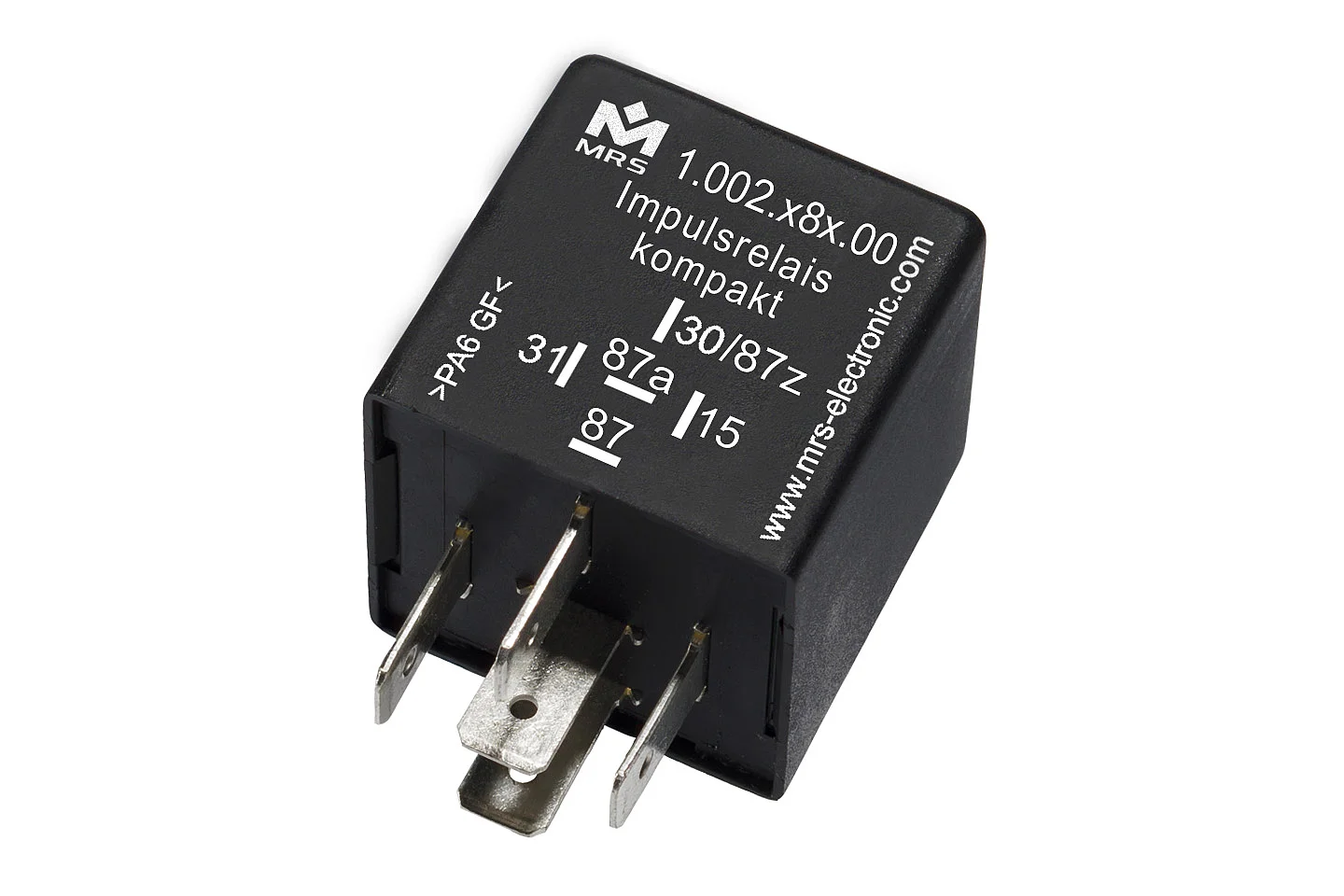

Pulse Relay M1 Compact 12 V

Article number : 1.002.18x

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

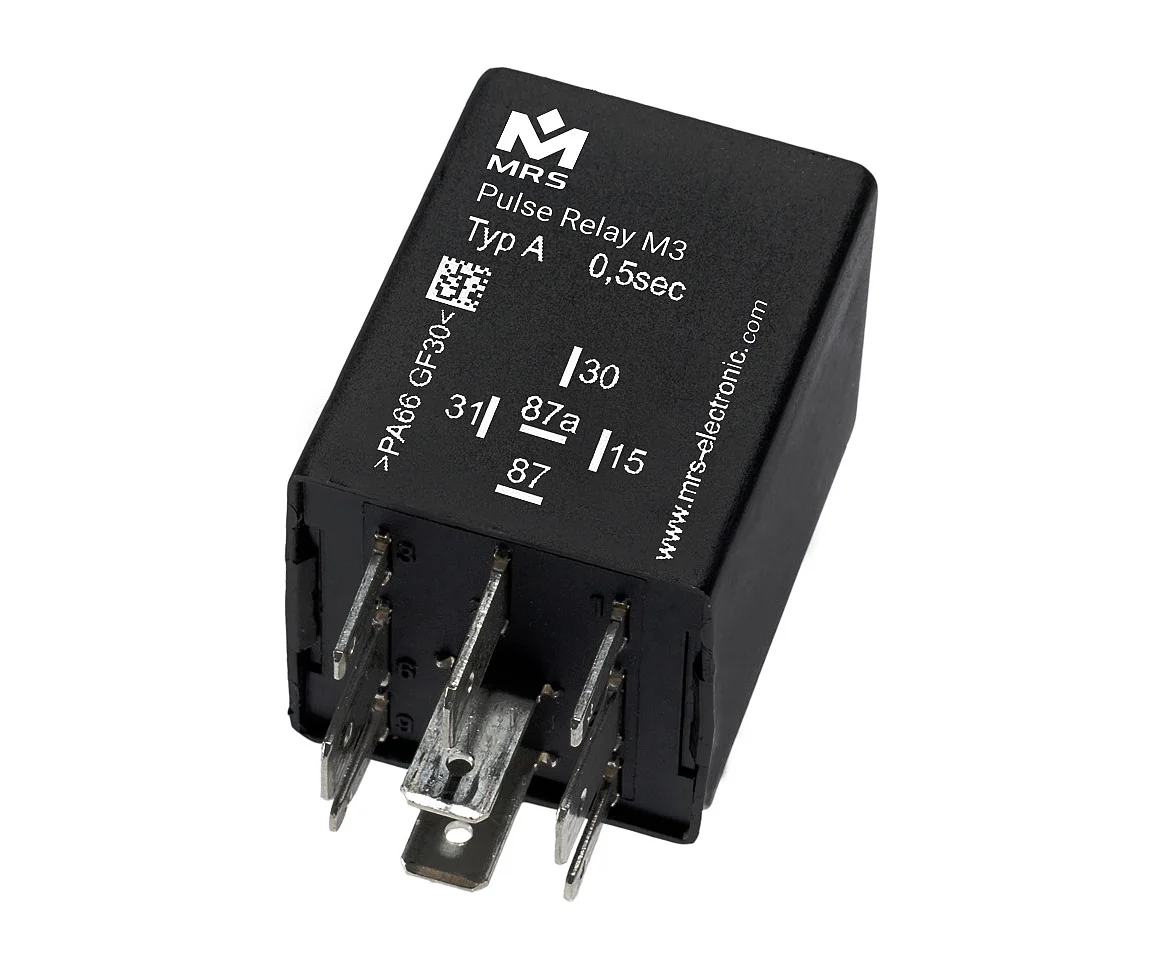

Pulse Relay M3 12 V

Article number : 1.002.19x.

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 20 A
Switching cycles: 100000
IP rating: IP6K8

Pulse Relay M1 Compact 24 V

Article number : 1.002.28x

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 10 A
Switching cycles: 100000
IP rating: IP53

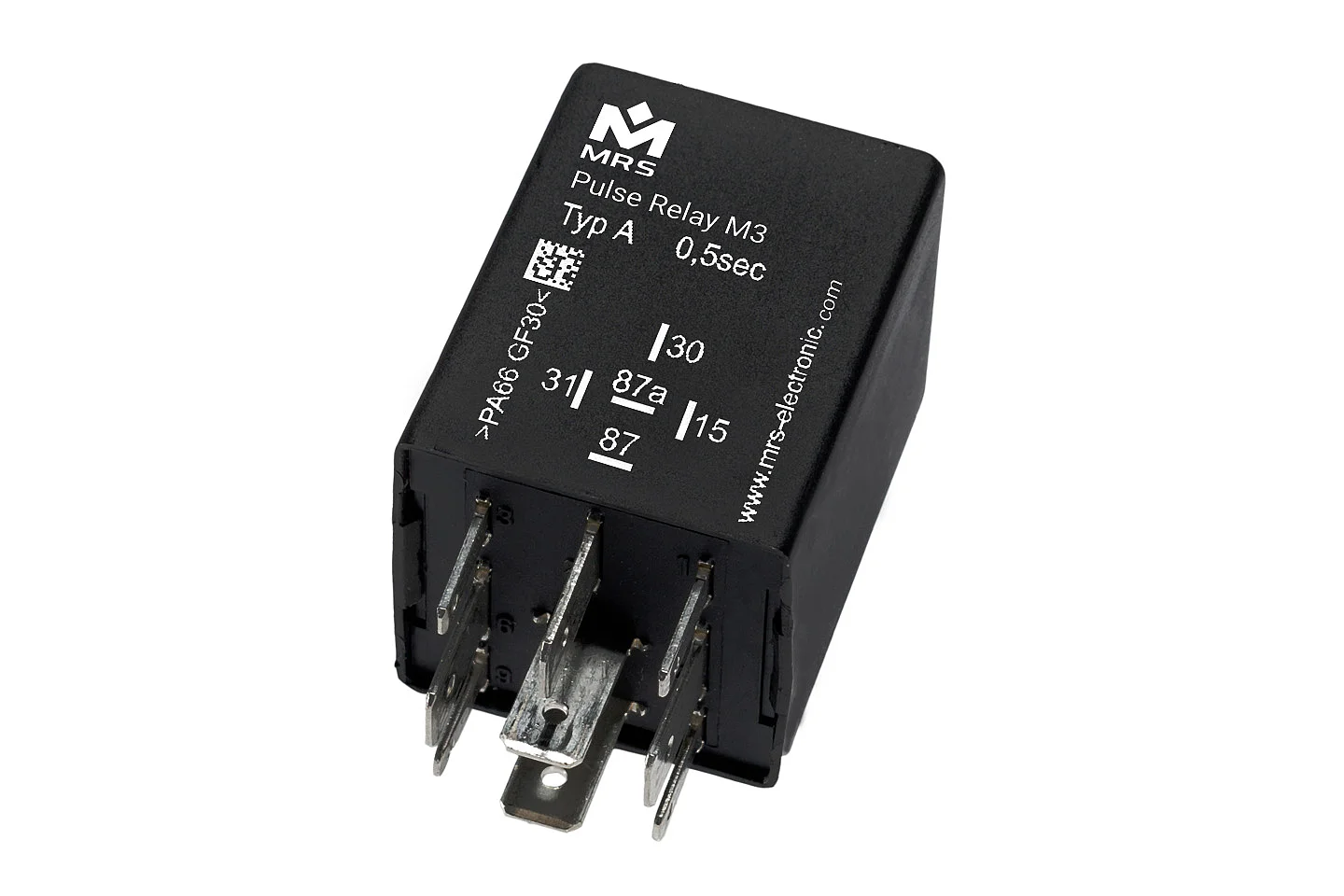

Pulse Relay M3 24 V

Article number : 1.002.29x

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: IP6K8

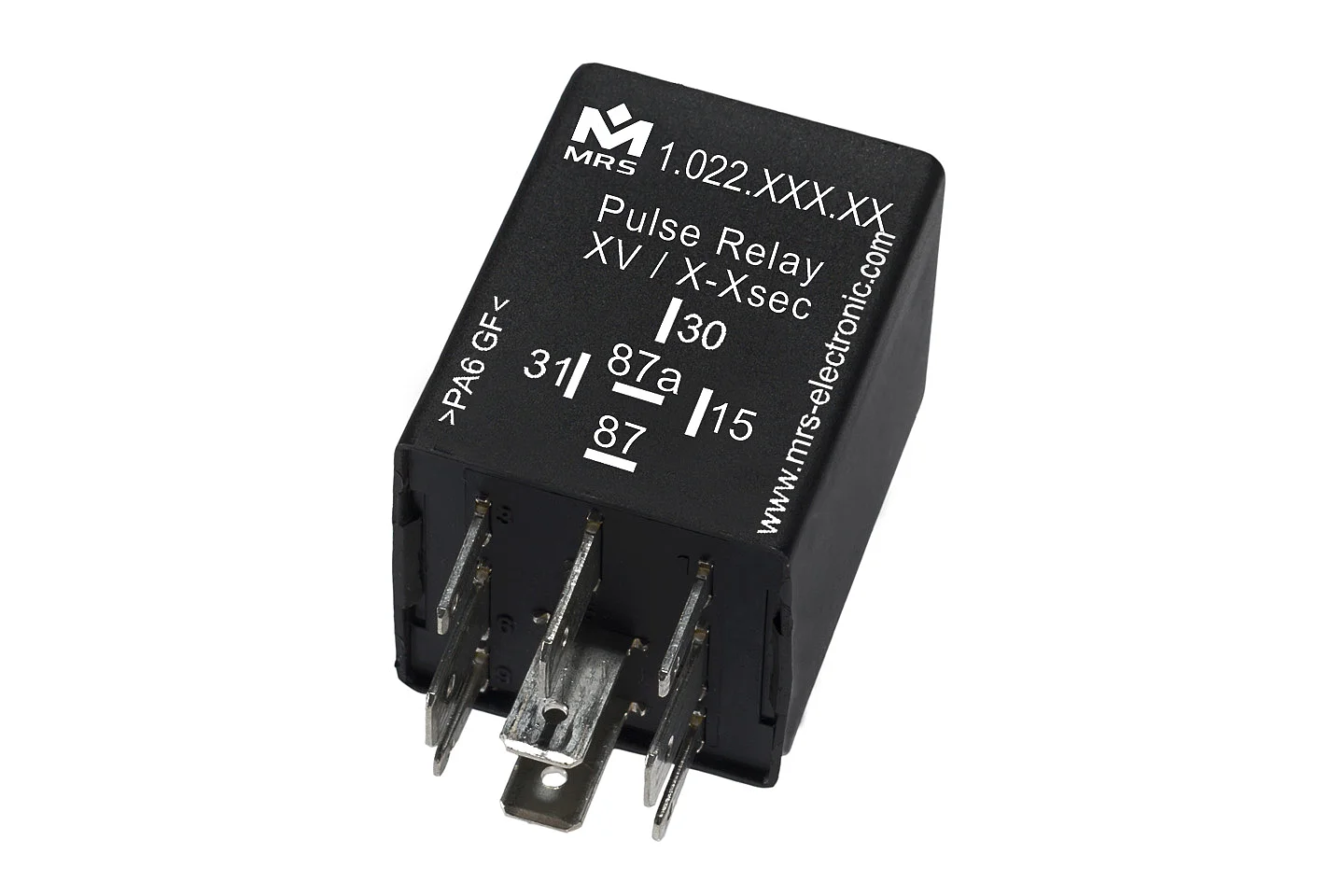

Pulse Relay Adjustable 12 V

Article number : 1.022.11x

Operating voltage: 10-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 5 A
Switching cycles: 100000
IP rating: IP53

Pulse Relay Adjustable 24 V

Article number : 1.022.21x

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 10 A / NC 5 A
Switching cycles: 100000
IP rating: IP53
