Cable Set - Micro PLC CAN / PROP CAN / Micro Gateway

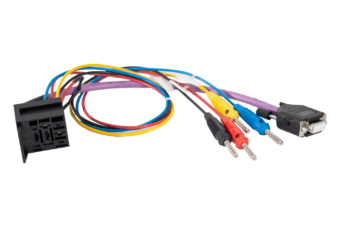

Micro PLC CAN / PROP CAN / Micro Gateway Programming Cable Set

The MRS Cable Set (length of about 30 cm) is required for programming the following MRS-Products: Micro PLC CAN / PROP CAN / Micro Gateway. Simply connect your MRS-Control with the matching MRS-Cable via a D-Sub connection to the PCAN-USB Interface (also compatible with Peak or Vector Interfaces) and start programming your individual application. Alternatively, you can create your own Programming Cable Set using our Connector Package for the corresponding product.

Please reach out to our MRS customer service for more information about this product. You can purchase the PCAN-USB Interface dongle from Phytool's website - phytools.com/products/pcan-usb-adapter.

Cable Set - Micro PLC CAN / PROP CAN / Micro Gateway

Order options

Order no.	Name
109446	Cable Set - Micro PLC CAN / PROP CAN / Micro Gateway

Related Products

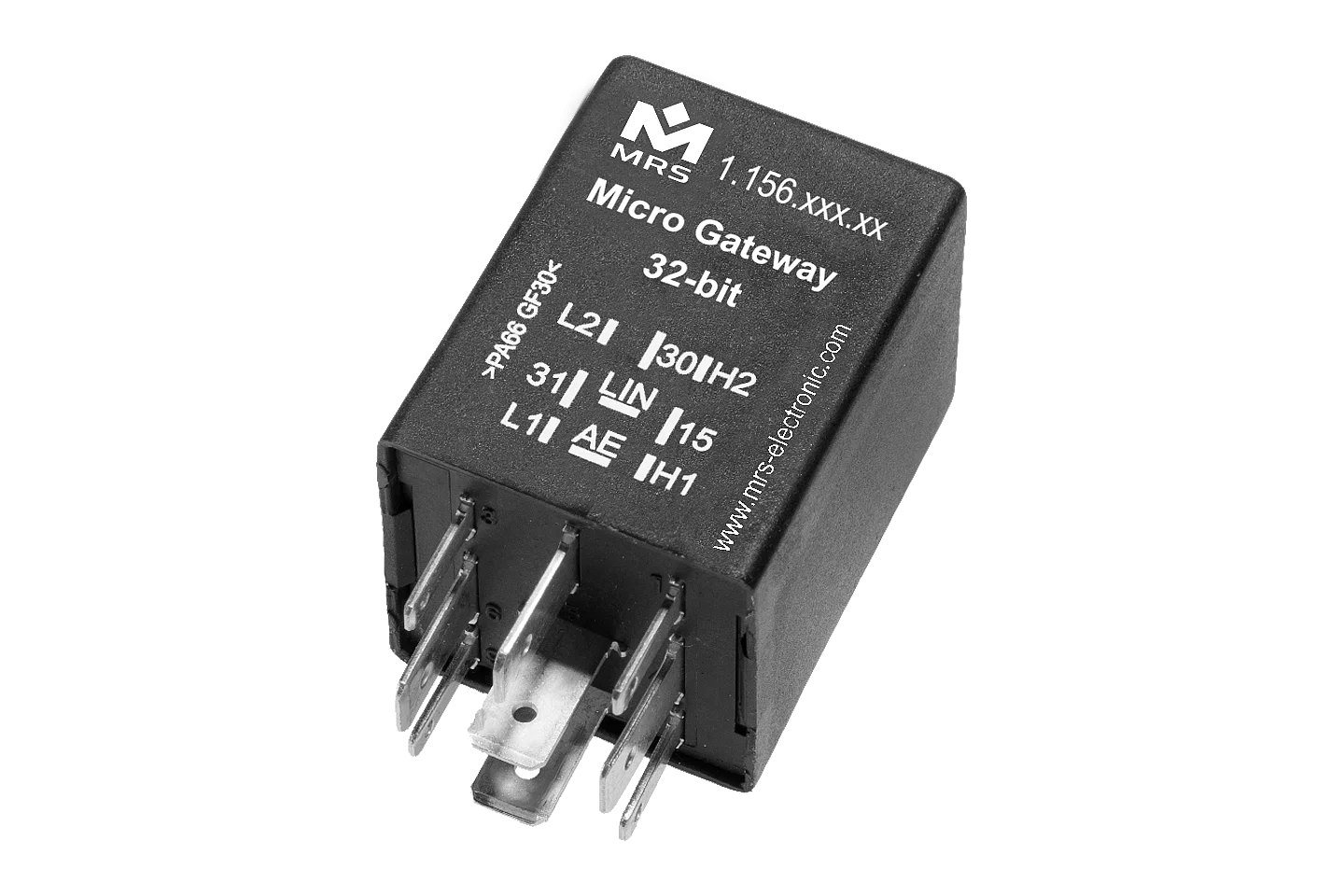

Micro Gateway 32-bit

Article number : 1.156.x

Operating voltage: 9-32 V
CAN interface(s): 2
CAN FD interface(s): 2
LIN interface(s): 2
In-/Outputs (total): 2
I/Os (total): 2
IP rating: IP6K8

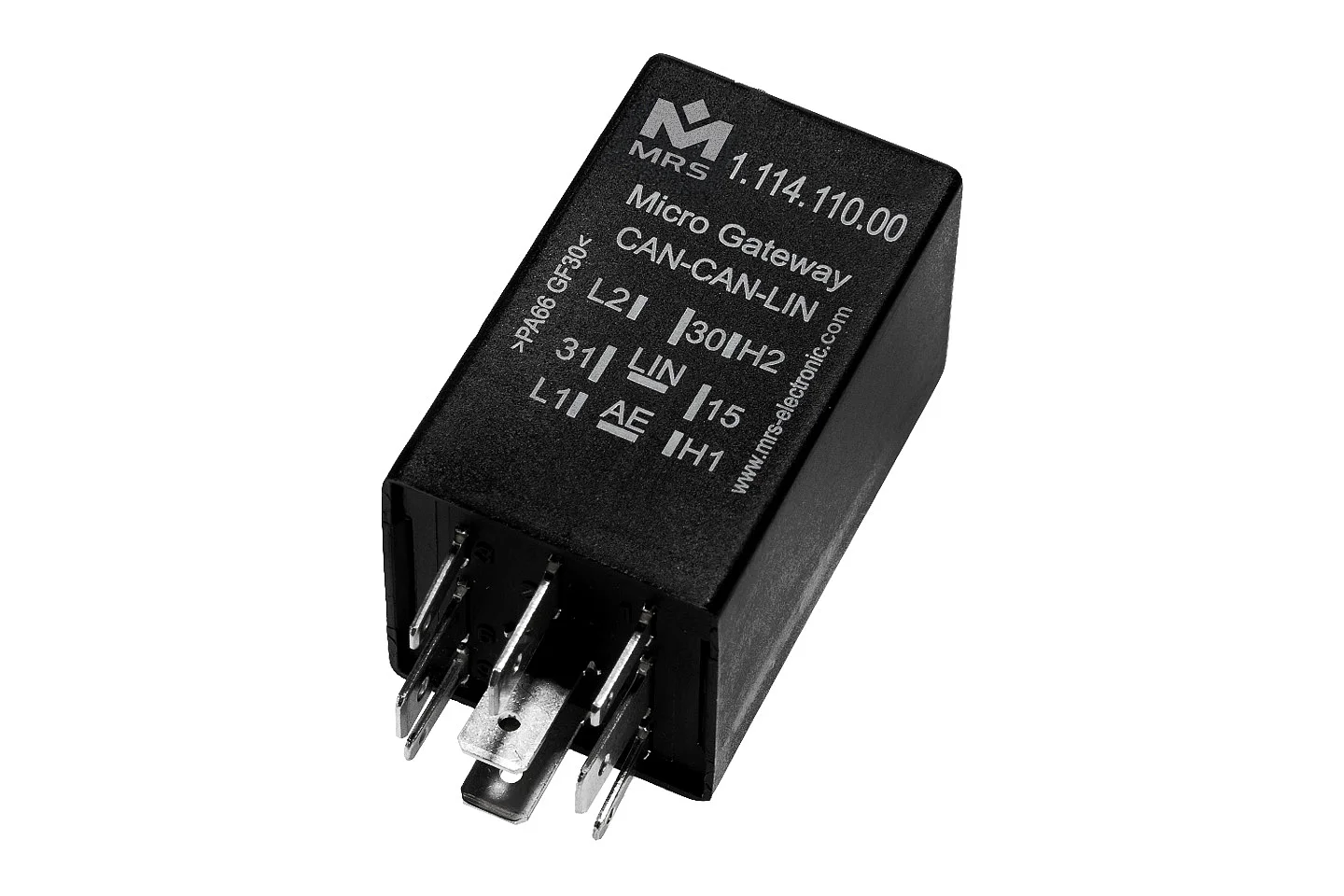

Micro Gateway

Article number : 1.114.x

Operating voltage: 9-32 V
CAN interface(s): 2
LIN interface(s): 2
In-/Outputs (total): 2
IP rating: IP6K8

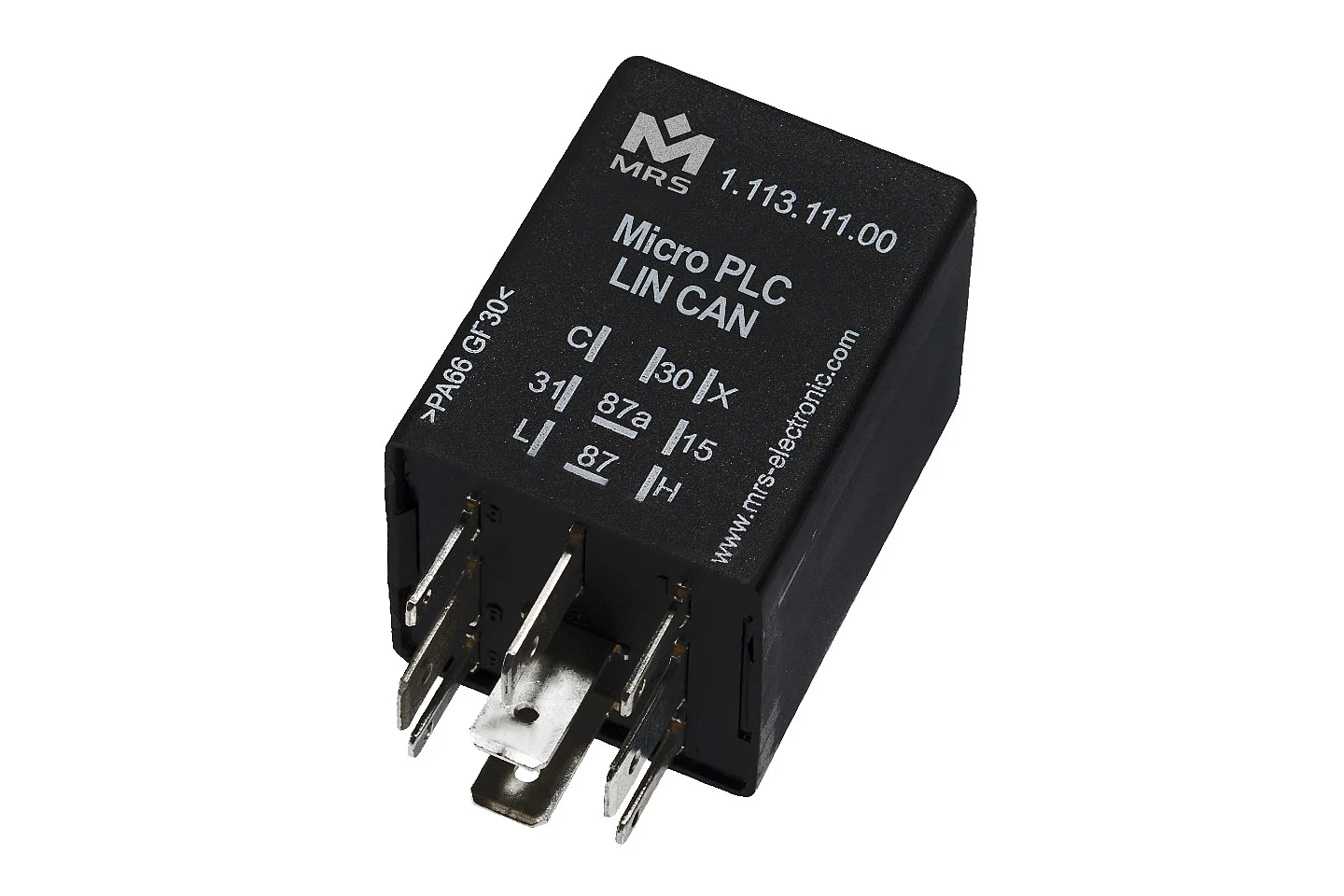

Micro PLC CAN LIN

Article number : 1.113.111.0x

Operating voltage: 8-16 V
CAN interface(s): 1
LIN interface(s): 1
In-/Outputs (total): 4
I/Os (total): 2
IP rating: IP6K8

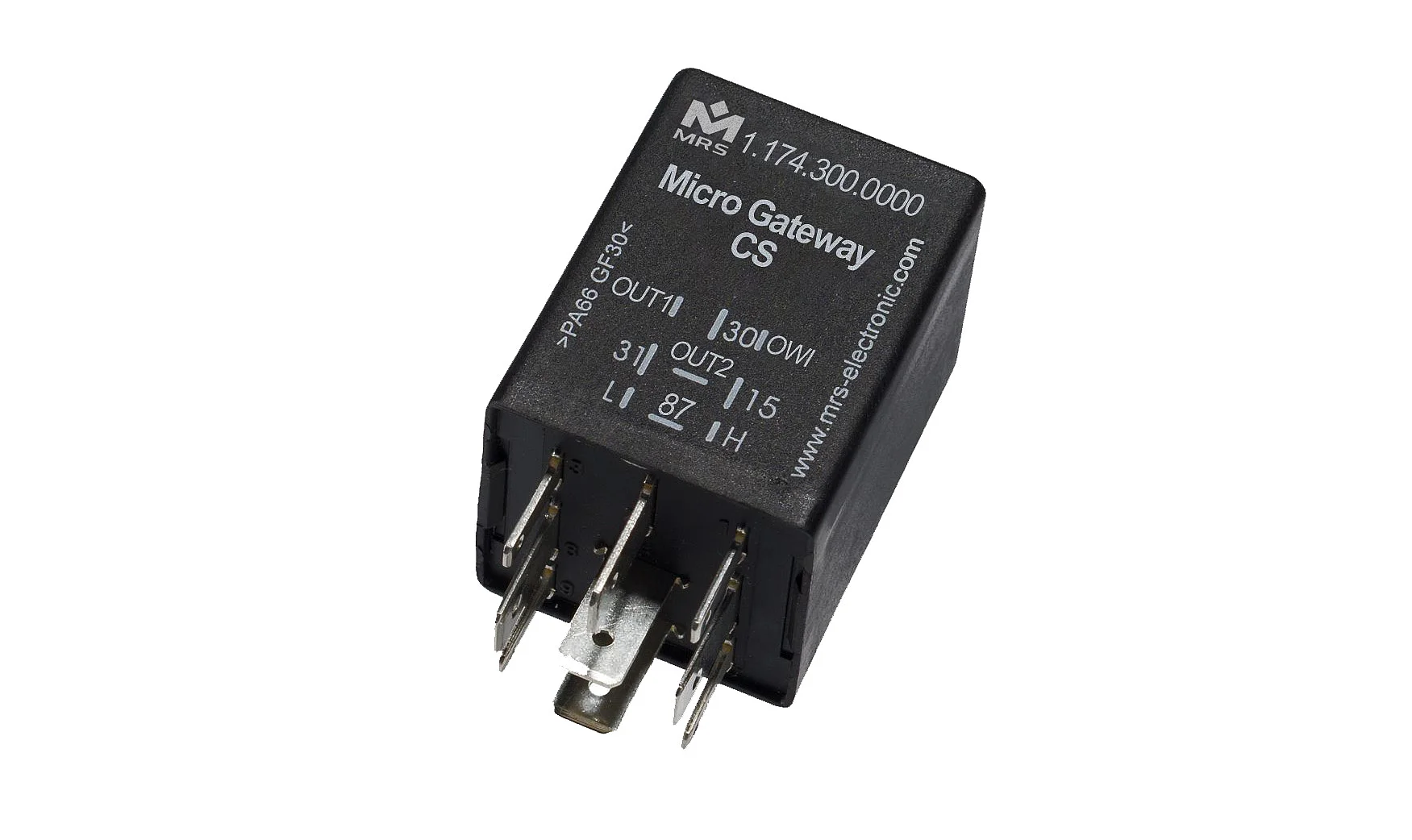

Micro Gateway CAN Serial

Article number : 1.174.x

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 3
IP rating: IP6K8

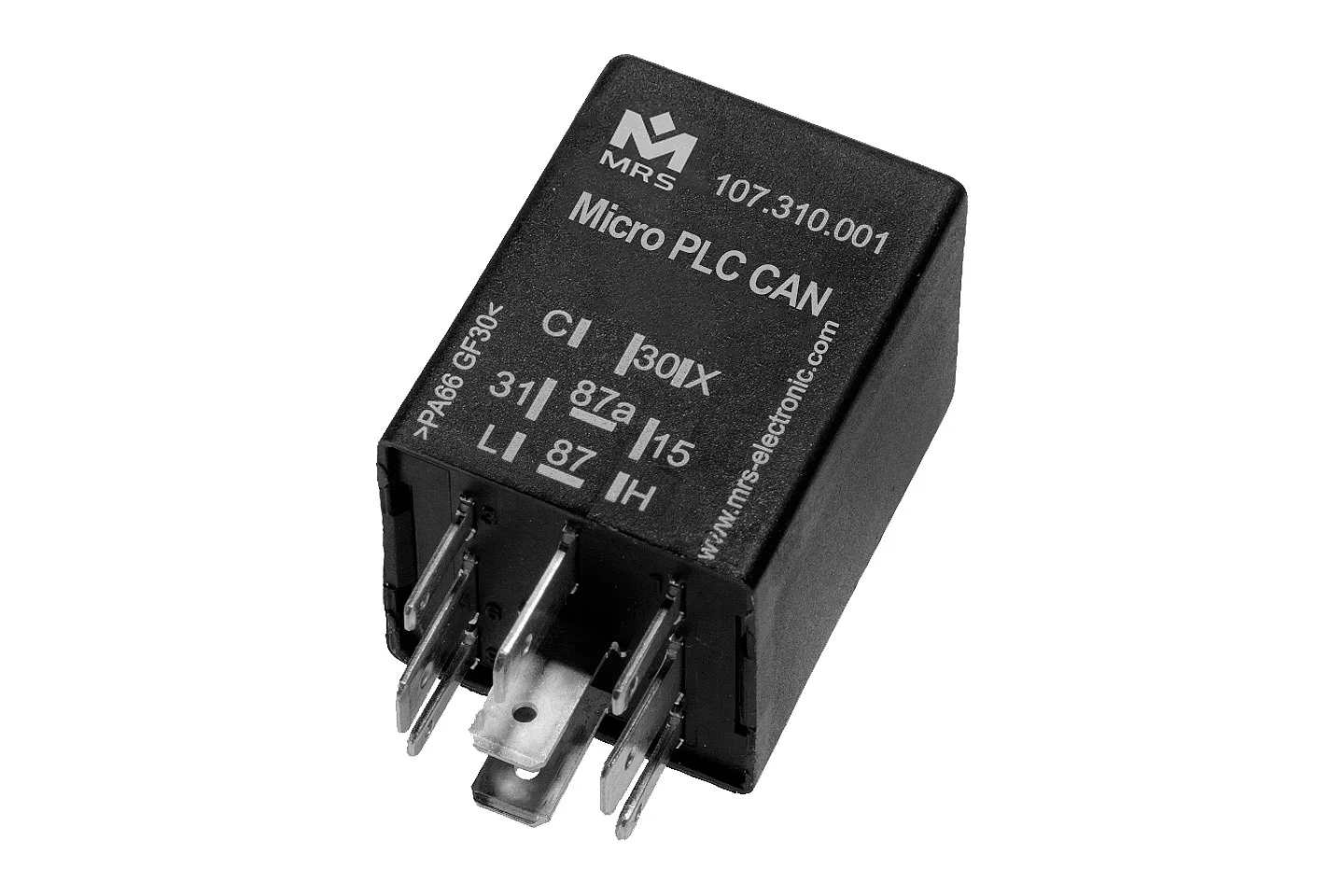

Micro PLC CAN 9-30 V

Article number : 1.107.310.x

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 5
Inputs (total): 3
Outputs (total): 2
IP rating: IP53

Micro PLC CAN 24V

Article number : 1.107.2x

Operating voltage: 24 V
CAN interface(s): 1
In-/Outputs (total): 4
Inputs (total): 2
Outputs (total): 2
IP rating: IP53

Micro PLC CAN 12V

Article number : 1.107.1x

Operating voltage: 12 V
CAN interface(s): 1
In-/Outputs (total): 4
Inputs (total): 2
Outputs (total): 2
IP rating: IP53

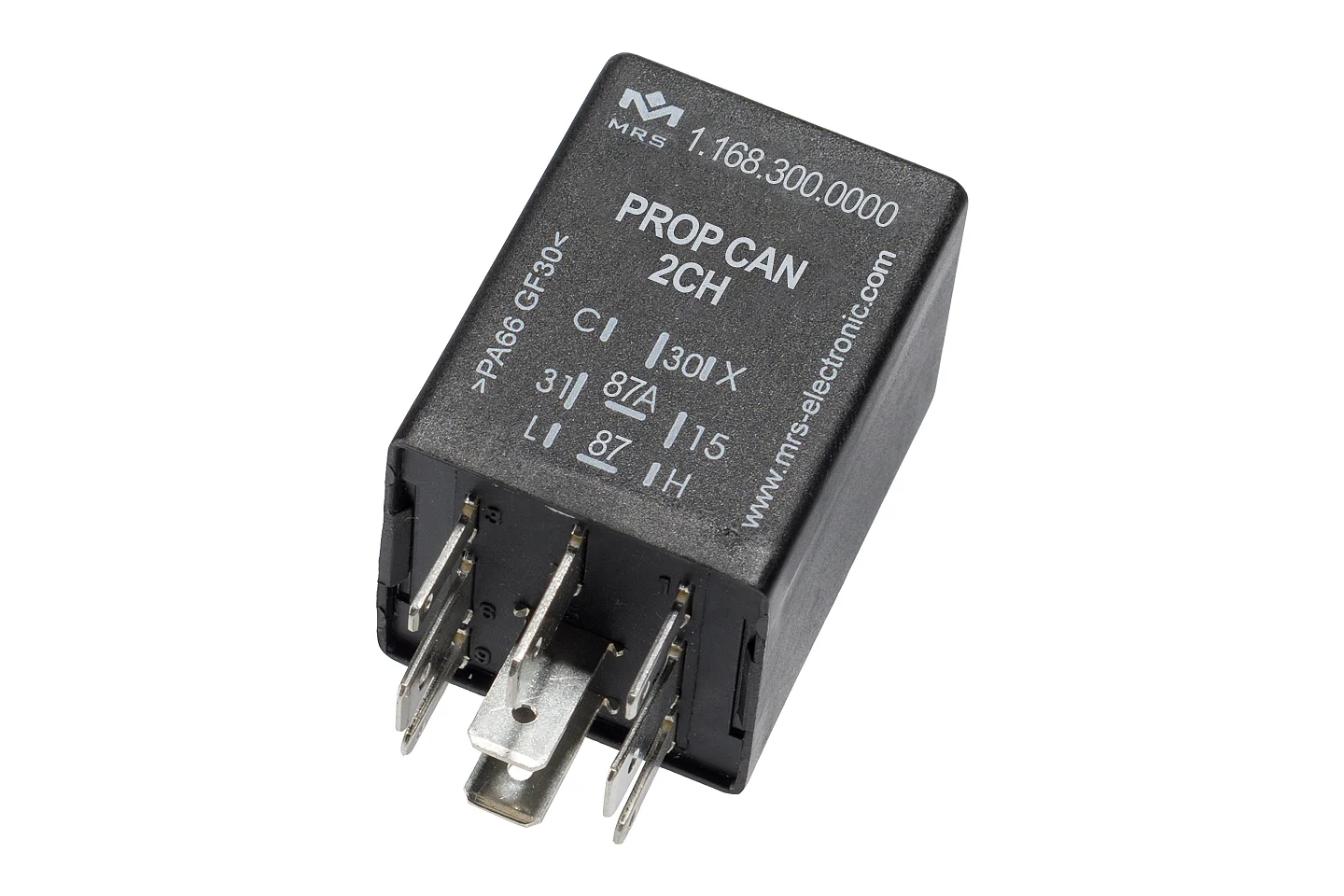

PROP CAN 2CH

Article number : 1.168.

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 4
Inputs (total): 2
Outputs (total): 2
IP rating: IP6K8

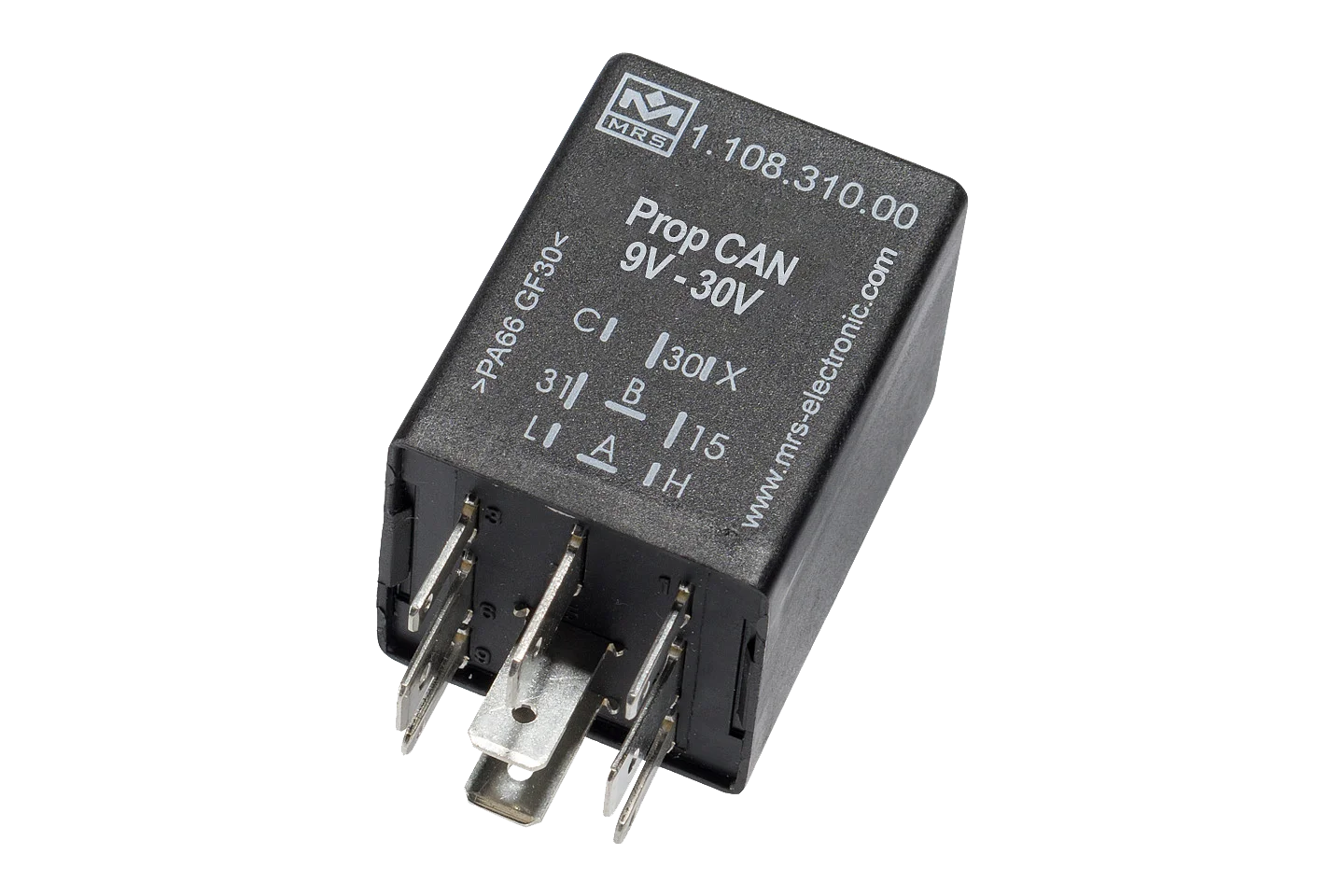

PROP CAN

Article number : 1.108.310.00

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 3
Inputs (total): 2
Outputs (total): 1
IP rating: IP6K8

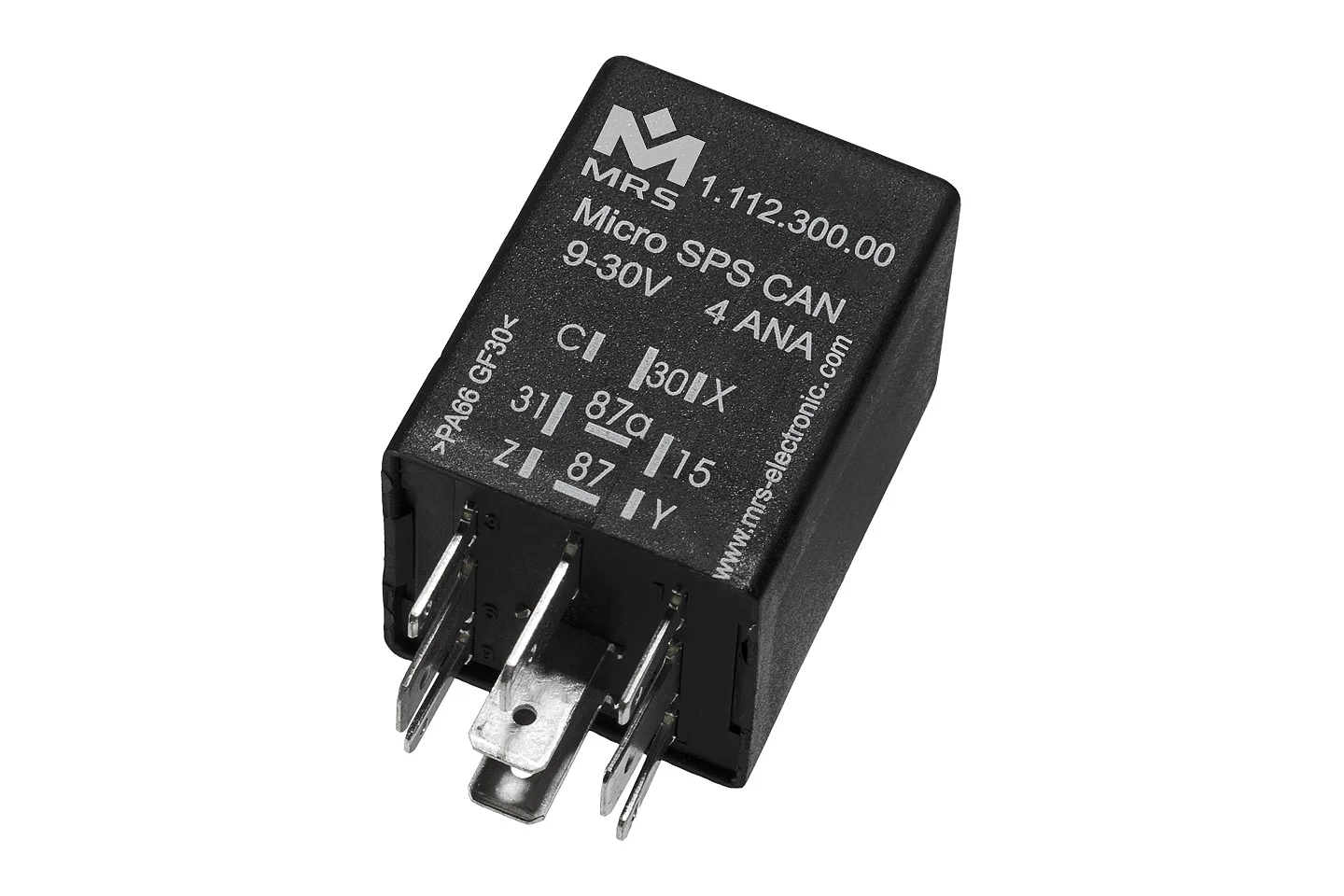

Micro PLC CAN 4 ANA

Article number : 1.112.x

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 4
I/Os (total): 4
IP rating: IP6K8

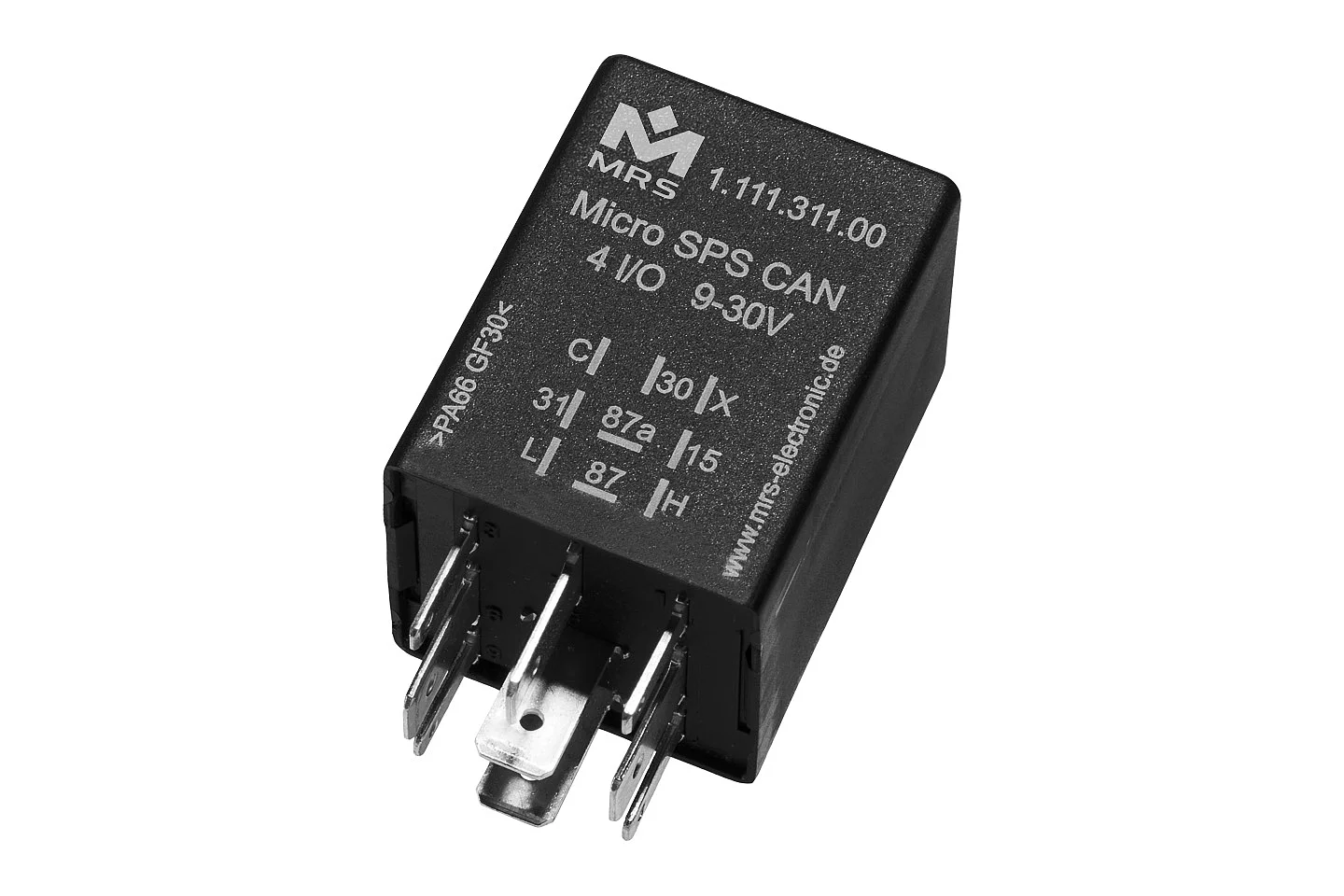

Micro PLC CAN 4 I/O

Article number : 1.111.311.00

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 4
I/Os (total): 4
IP rating: IP6K8

Micro PLC 12V

Article number : 1.005.1x

Operating voltage: 10-16 V
In-/Outputs (total): 6
Inputs (total): 4
Outputs (total): 2
IP rating: IP6K8

Micro PLC 24V

Article number : 1.005.2x

Operating voltage: 16-32 V
In-/Outputs (total): 6
Inputs (total): 4
Outputs (total): 2
IP rating: IP6K8

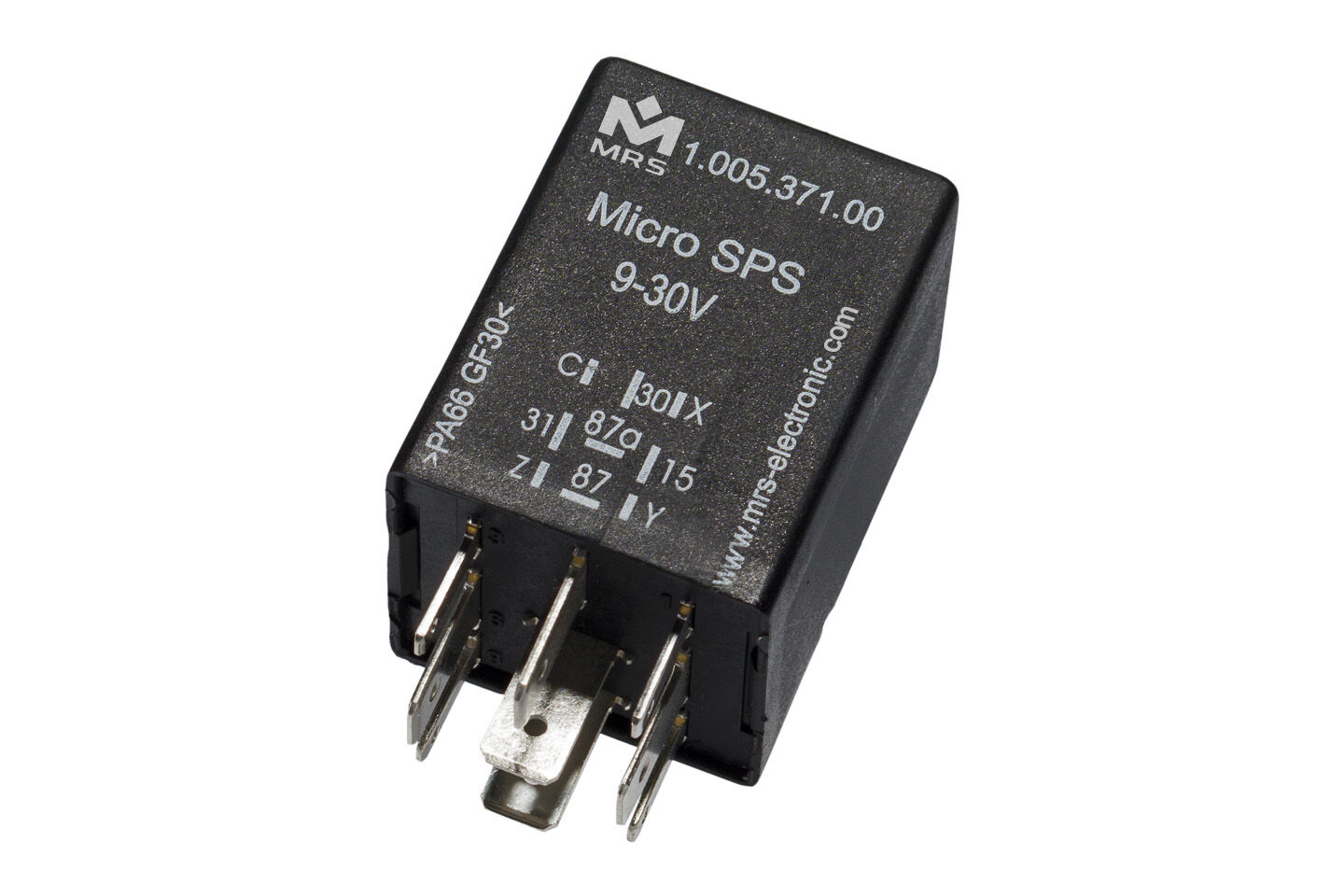

Micro PLC 9-30V

Article number : 1.005.3x

Operating voltage: 9-30 V
In-/Outputs (total): 7
Inputs (total): 4
Outputs (total): 3
IP rating: IP6K8

Proportional Amplifier 9-30V

Article number : 1.030.x

Operating voltage: 9-30 V
In-/Outputs (total): 5
Inputs (total): 4
Outputs (total): 1
IP rating: IP53

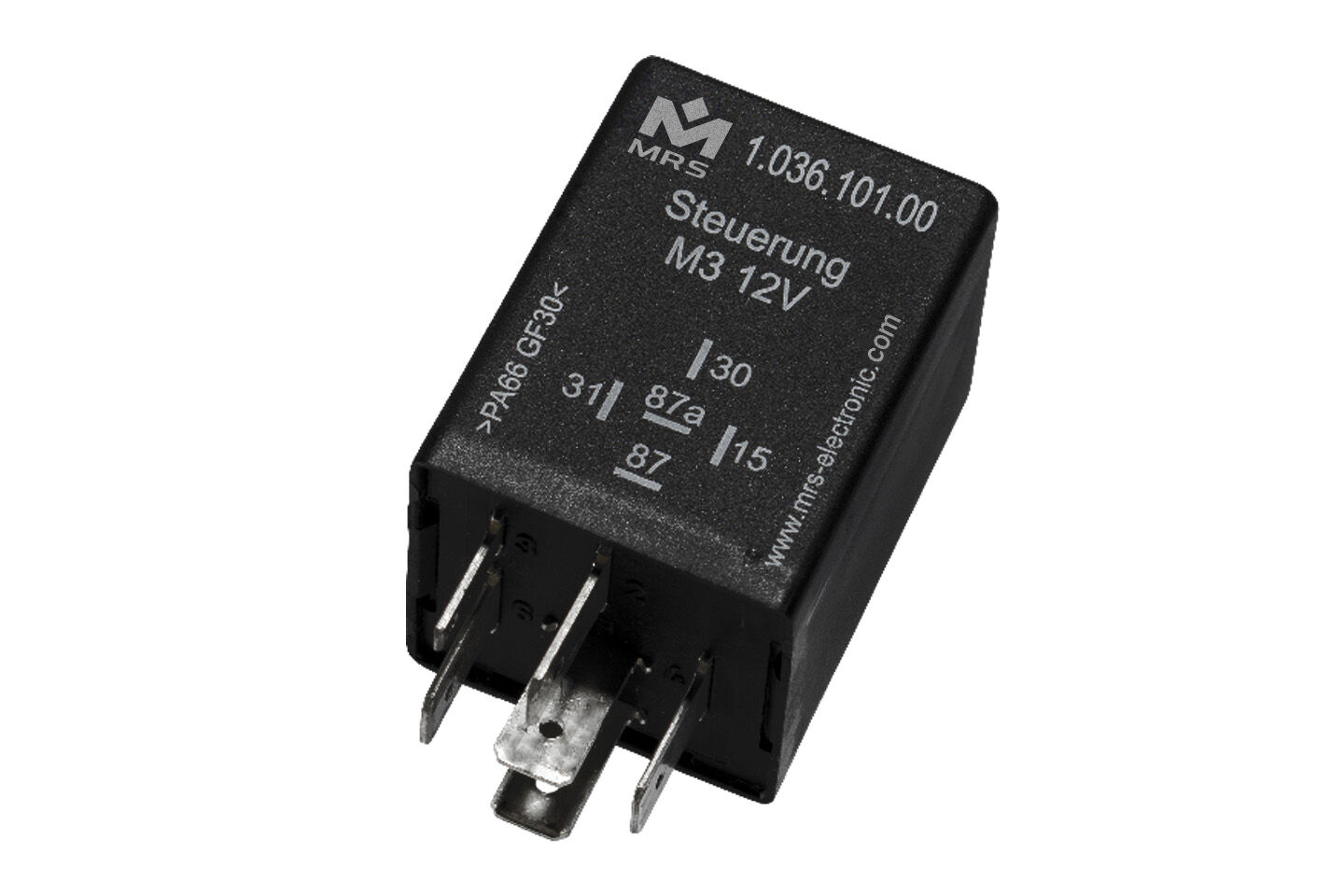

Controller M3 12V

Article number : 1.036.1x

Operating voltage: 9-16 V
In-/Outputs (total): 2
Inputs (total): 1
Outputs (total): 1
IP rating: IP6K8

Controller M3 24V

Article number : 1.036.2x

Operating voltage: 14-32 V
In-/Outputs (total): 2
Inputs (total): 1
Outputs (total): 1
IP rating: IP6K8
