Controller M3 24V
go to order options (10362x)
The M3 controller is a powerful and cost-effective controller. In addition to the unprogrammed M3 controller, there are programmed versions: Pulse relay, toggle relay, blinker, as well as other functions on request. The mentioned functions are stored by default and only have to be configured and parameterized. Of course, all standard functions can also be ordered preset directly from the factory.
Technical details
Inputs and Outputs

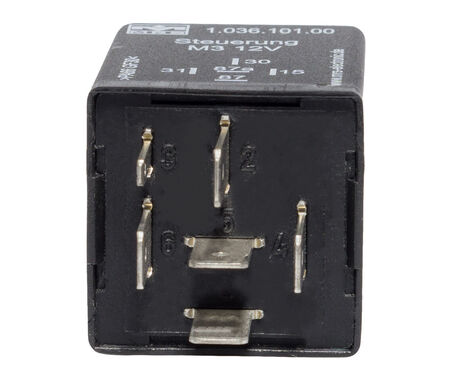

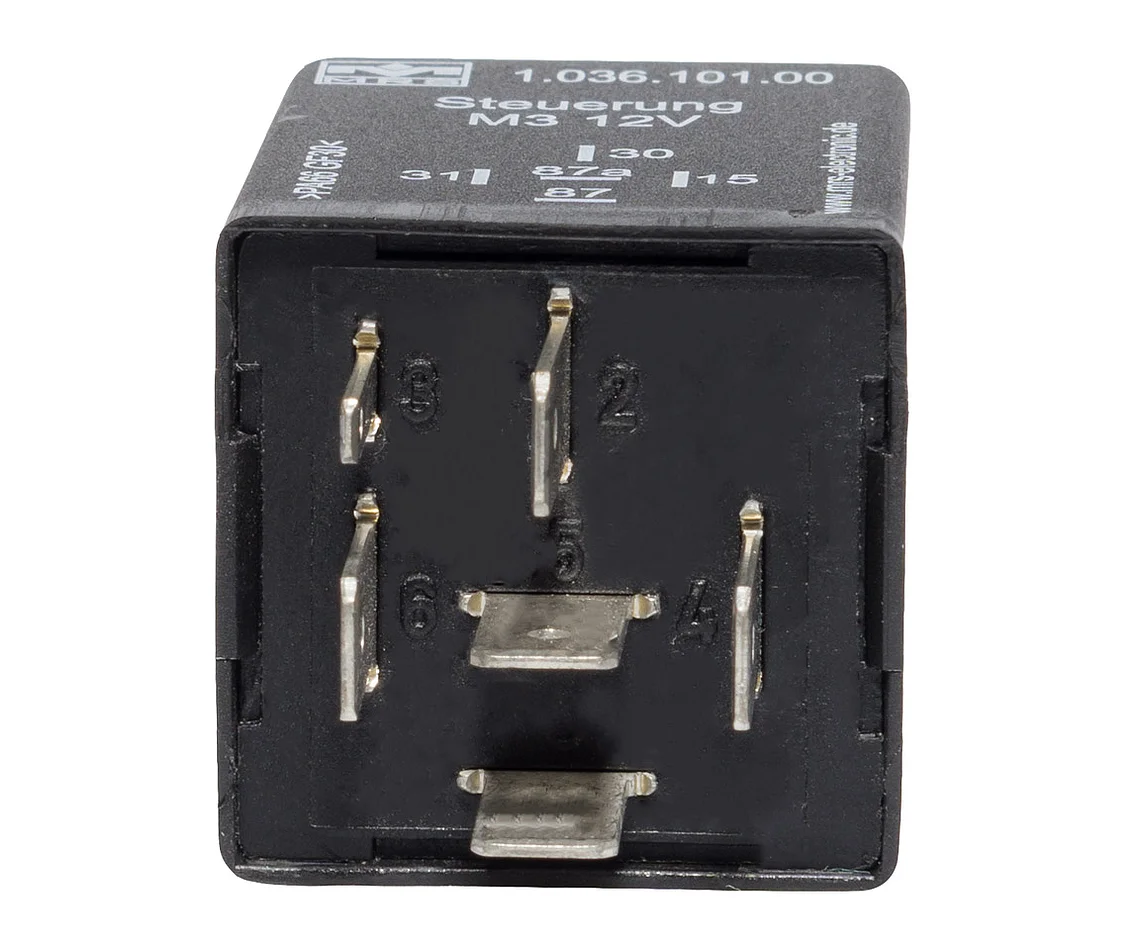

| Number of pins | 5 / 6 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NO 15 A / NC 15 A |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 14-32 V |
| Current consumption | 2 mA + Load |
| Processor architecture | 16 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.036.201.00 (103620100) |

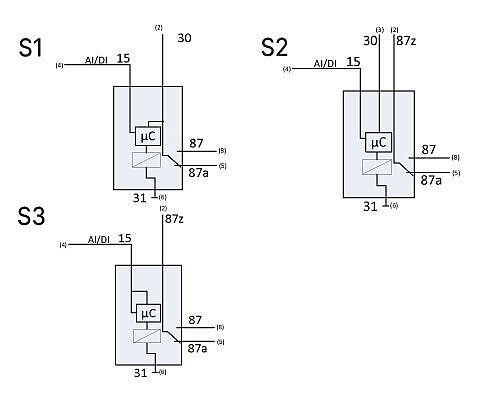

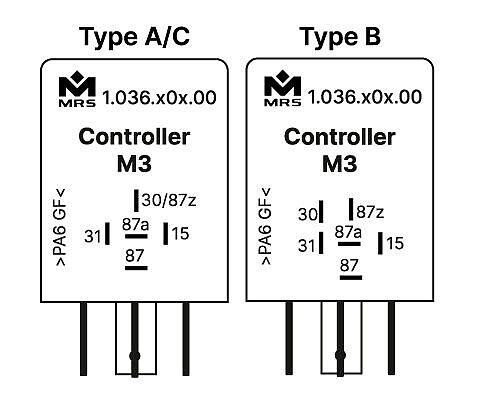

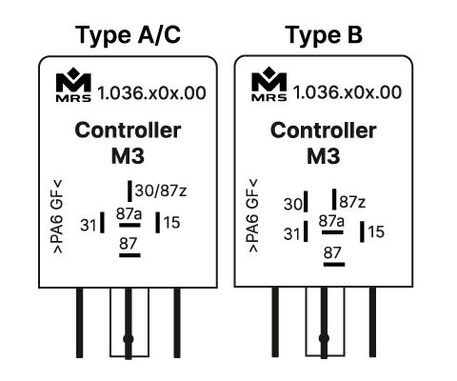

LB1 24V Type A, Connection S1
|
| 1.036.202.00 (103620200) |
LB1 24V Type B, Connection S2
|
| 1.036.203.00 (103620300) |
LB1 24V Type C, Connection S3
|
