Micro PLC CAN 24V

The Micro PLC CAN is a small control system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with Flash technology (option of multiple programming). There are 2 analog and/or 1 analog input/1 digital output and 2 overload-proof Highside power outputs (alternative relay output) available.

Complex applications can be realized in C. The functions as well as the measured values are controllable and readable via the CAN bus. Programming is possible using the software MRS Developers studio, graphically with CANgraph. The use of the powerful processor makes the Micro PLC CANopen and SAE J1939 capable.

Downloads

Data Sheet for Micro PLC CAN 24V Data Sheet for Micro PLC CAN 24V Deutsch Connector STEP File for Micro PLC CAN 24V

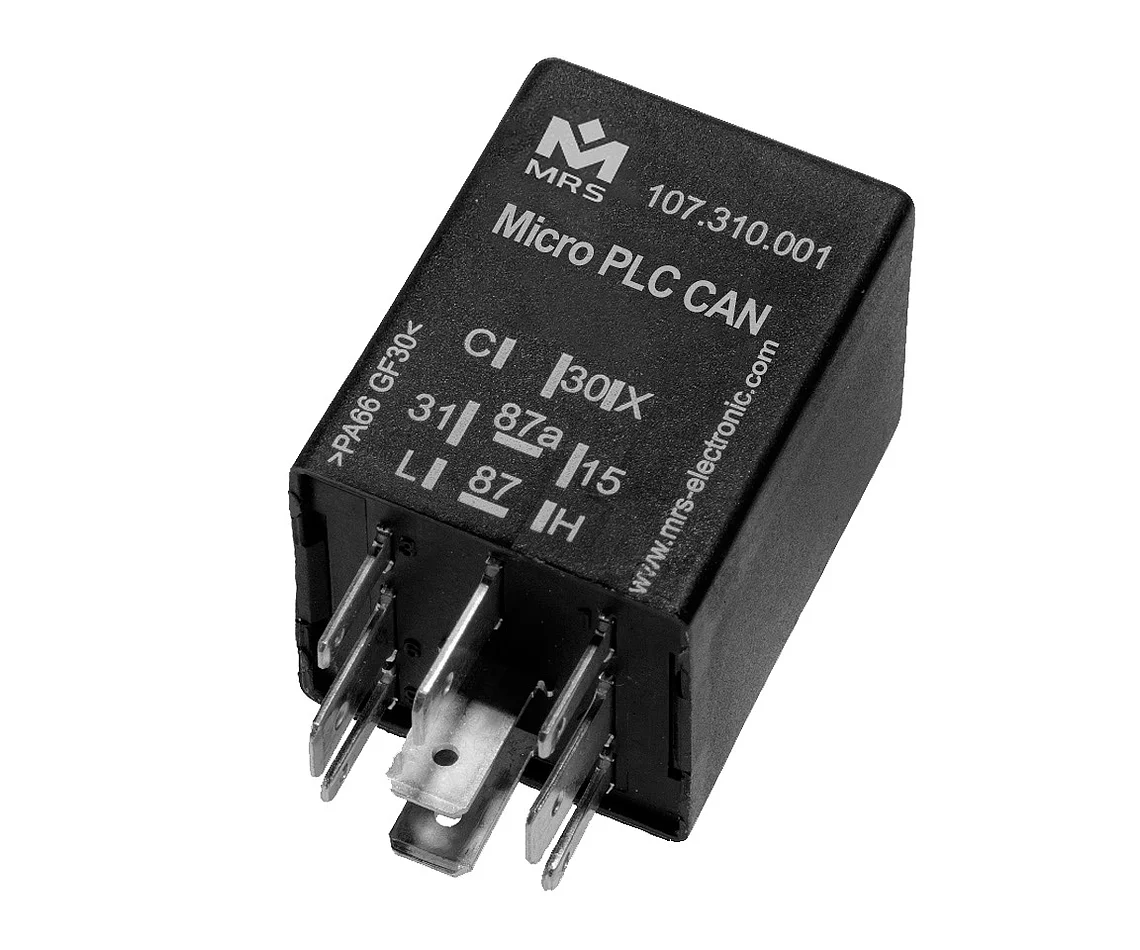

Micro PLC CAN 24V

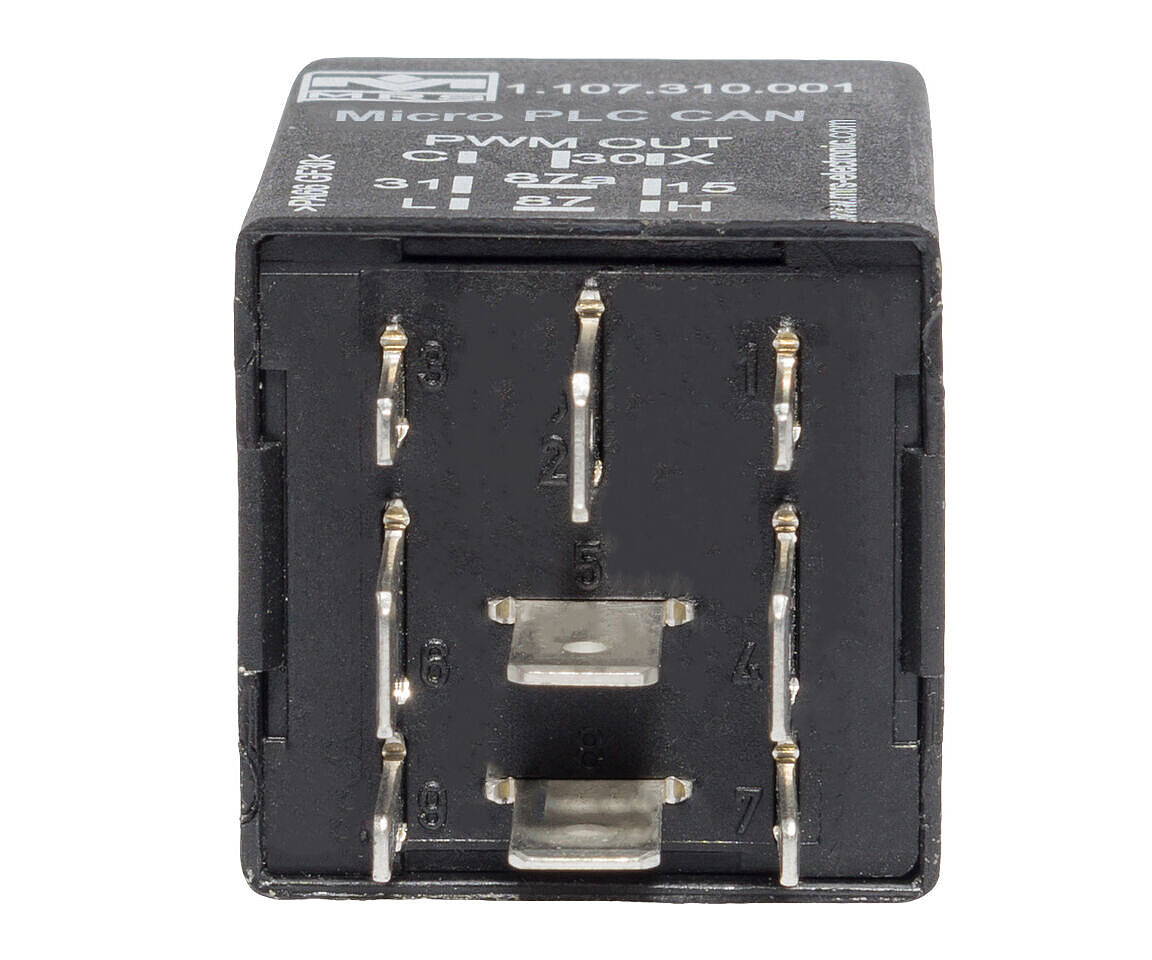

Connector View

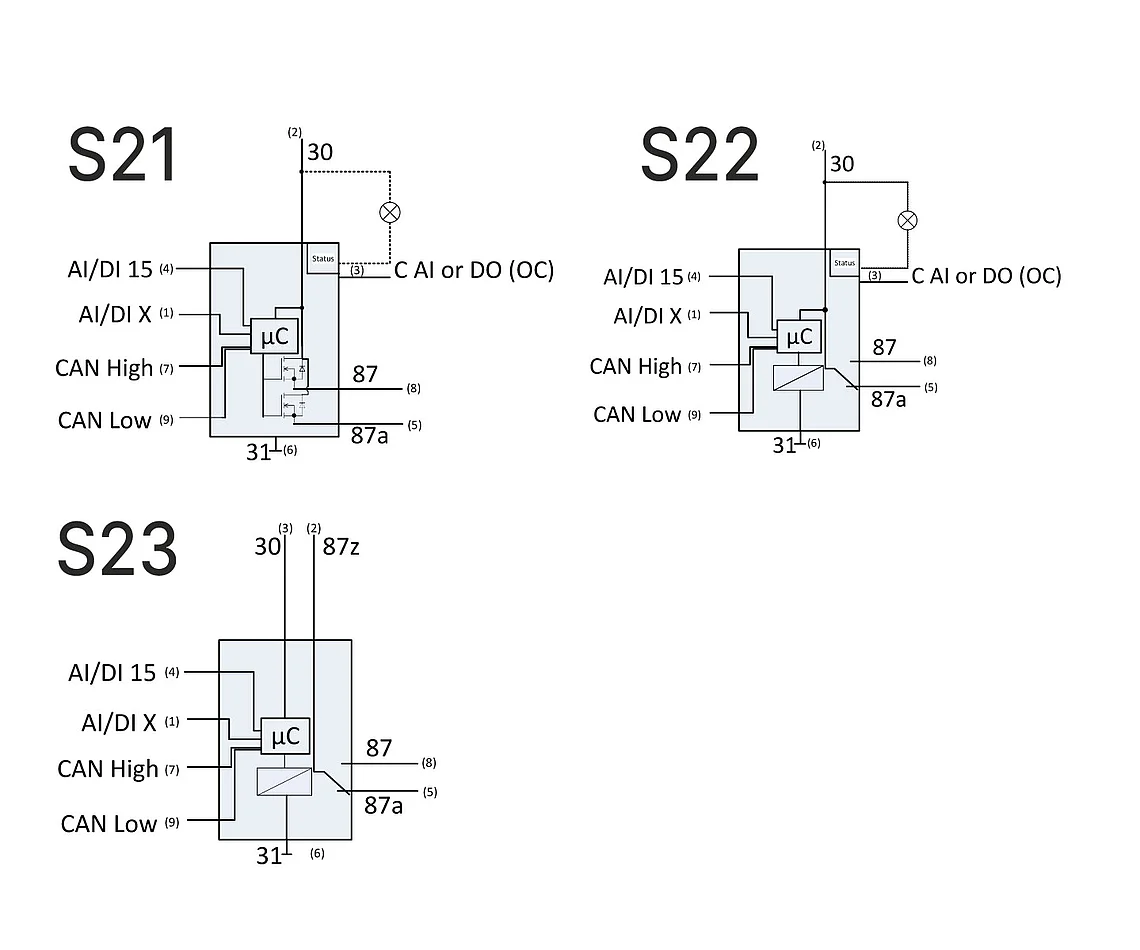

Connection diagram

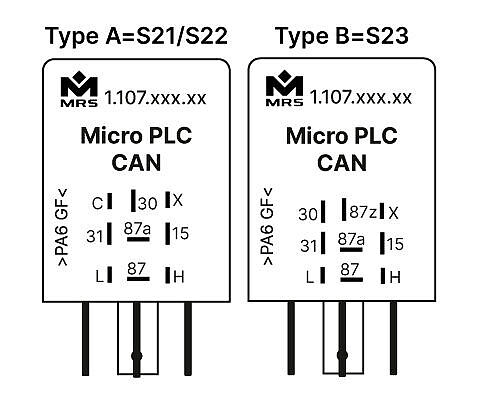

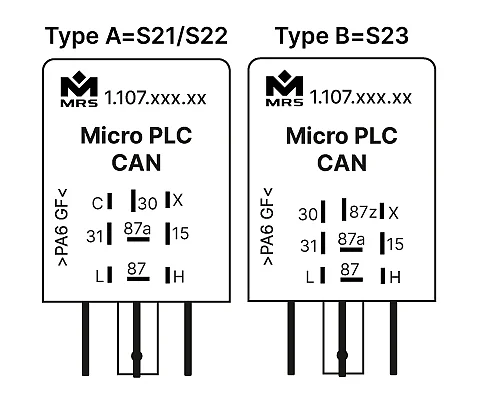

Design

Technical details

Inputs and Outputs

Number of pins	9
In-/Outputs (total)	4
Inputs (total)	2
Inputs (analog)	2
Outputs (total)	2
Outputs (digital)	1
Relay outputs	1
Output type low side	1
Switching current	NO 15 A / NC 10 A

Interfaces

CAN interface(s)	1

Mechanical Properties

IP rating	IP53
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm

Programming

Programming software	MRS Developers Studio

General

Temperature range	-40 to +85°C
Operating voltage	24 V
Current consumption	27 mA
Processor architecture	8 bit

Markings

Order options

Order no.	Name
1.107.210.00 (110721000)	Changeover switch, Type A, Connection S22
1.107.211.08 (110721108)	Voltage monitoring KL15, Type A, Connection S22
1.107.212.00 (110721200)	Changeover switch, Type B, Connection S23
1.107.212.01 (110721201)	Freq. Input, Type B, Connection S23
1.107.212.04 (110721204)	120 CAN-BUS Terminal Resistance, Type B, Connection S23
