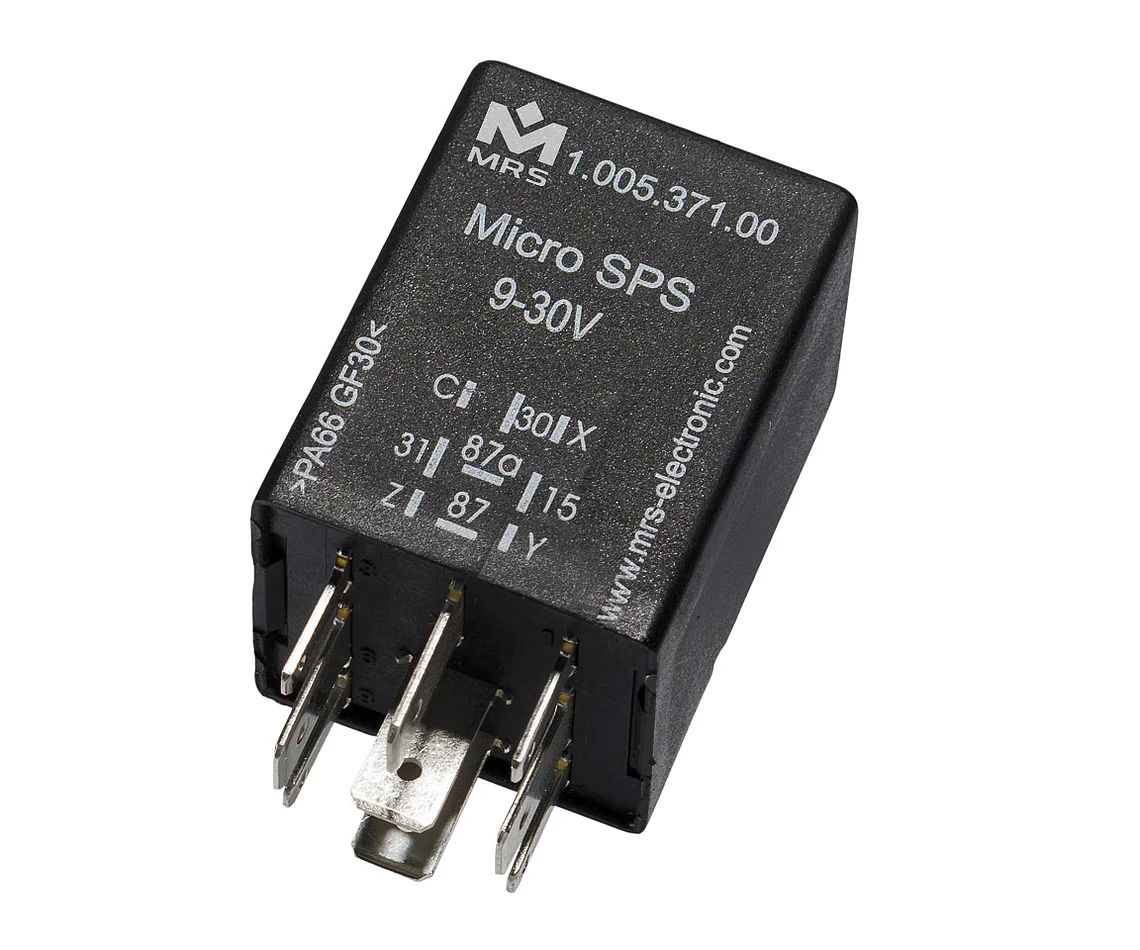

Micro PLC 24V
go to order options (10052x)
The Micro PLC is a small controller for automotive applications. Free configuration, parameterization, and programmability offer a wide range of application possibilities in the automotive sector.
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 6 |
| Inputs (total) | 4 |
| Inputs (analog) | 1 |
| Inputs (digital) | 3 |
| Outputs (total) | 2 |
| Outputs (digital) | 1 |
| Relay outputs | 1 |
| Output type low side | 1 |
| Switching current | NO 10 A / NC 5 A |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 16-32 V |
| Processor architecture | 16 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.005.251.00 (100525100) |

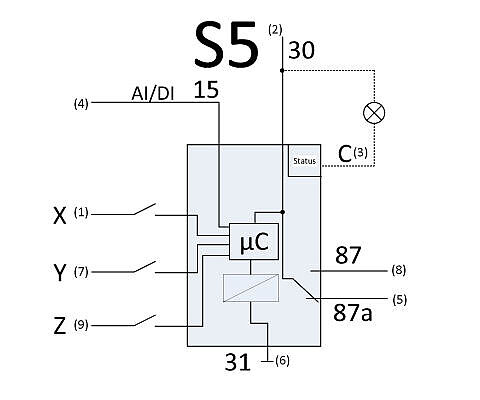

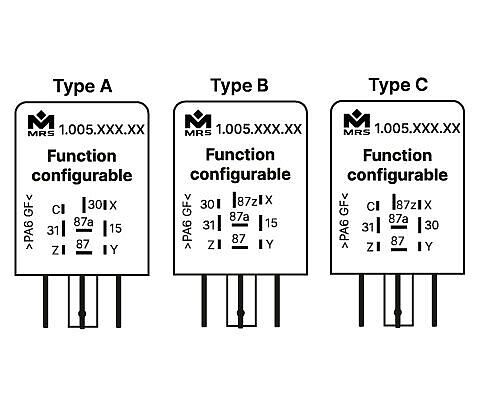

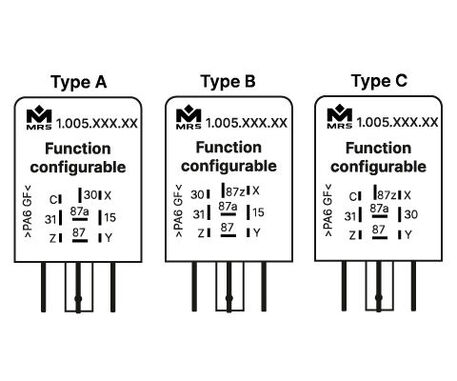

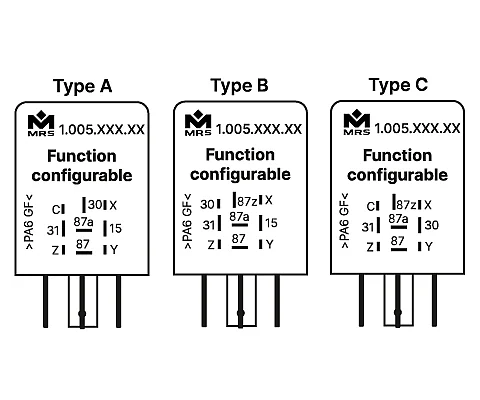

E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, Type A, Connection S5
|
| 1.005.250.00 (100525000) |
E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, 1 open collector output, Type A, Connection S5
|
| 1.005.254.00 (100525400) |

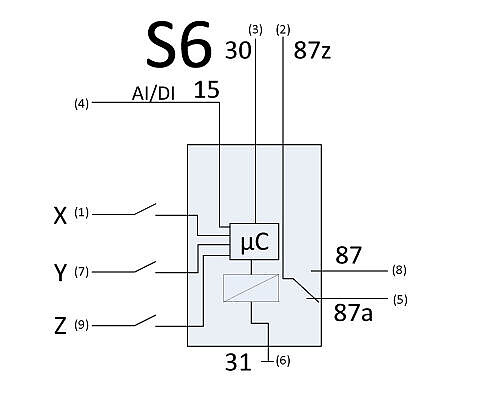

E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, Type B, Connection S6
|
| 1.005.253.00 (100525300) |

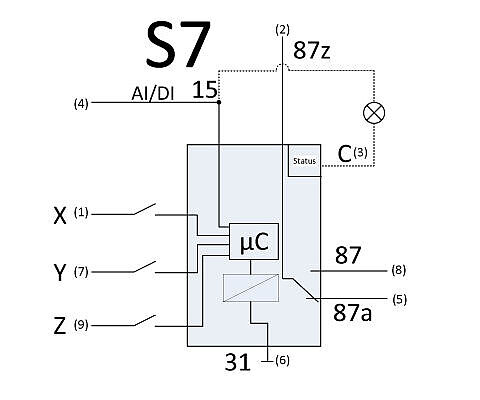

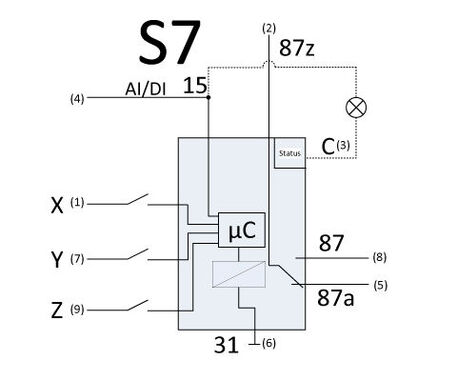

E3 EA1 OR1, 3 digital 1 analog input, 1 relay output, 1 open collector output, Type C, Connection S7
|
