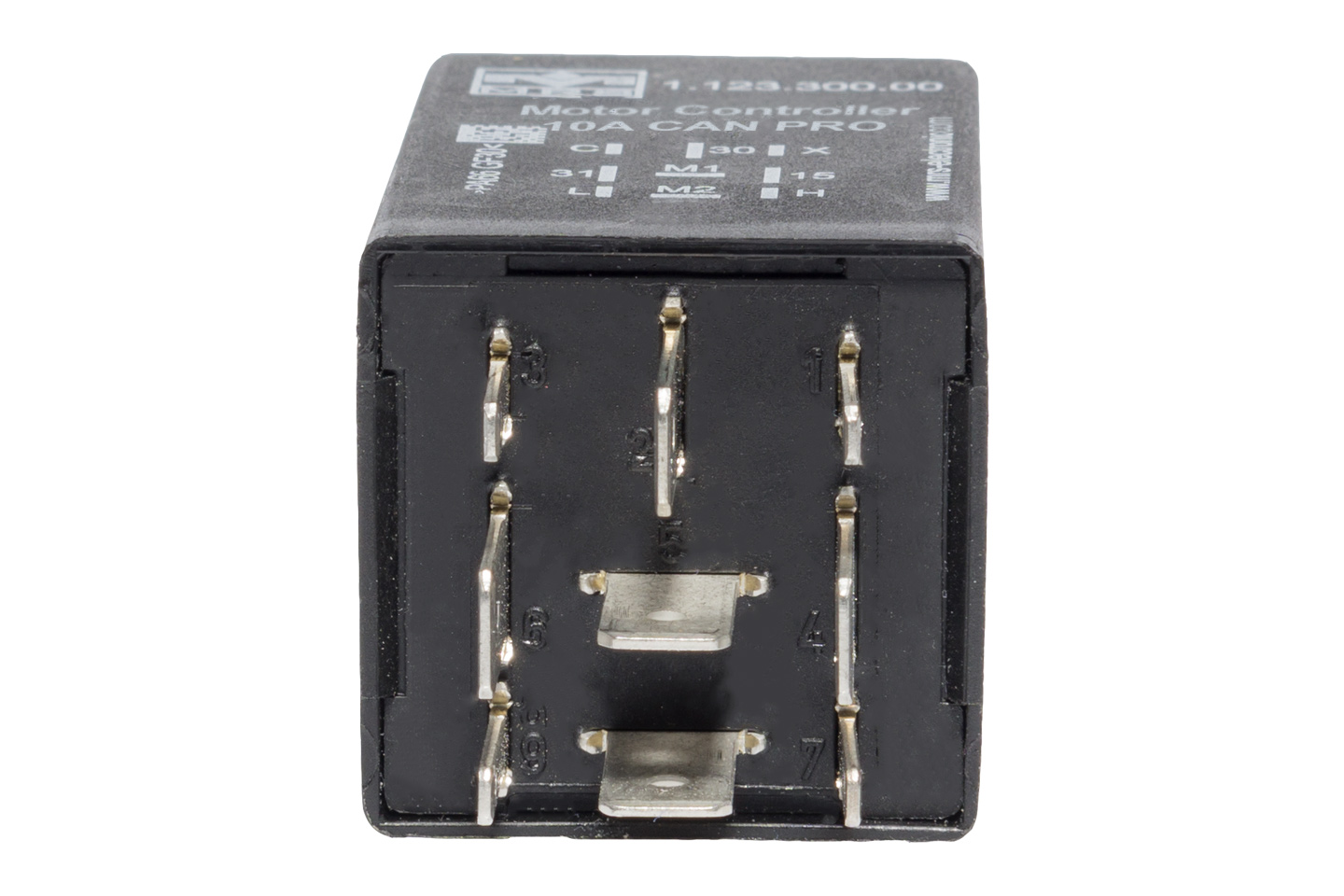

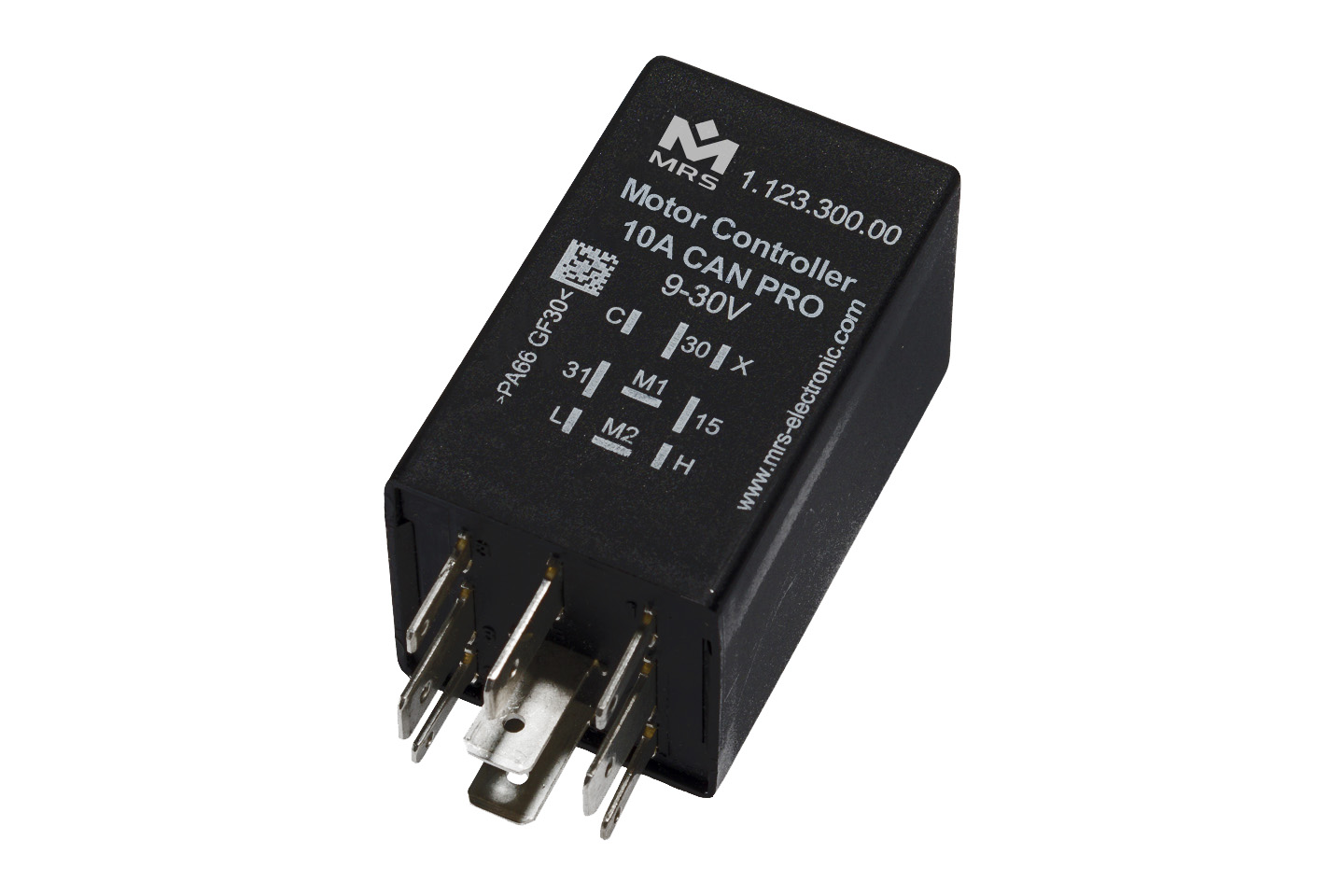

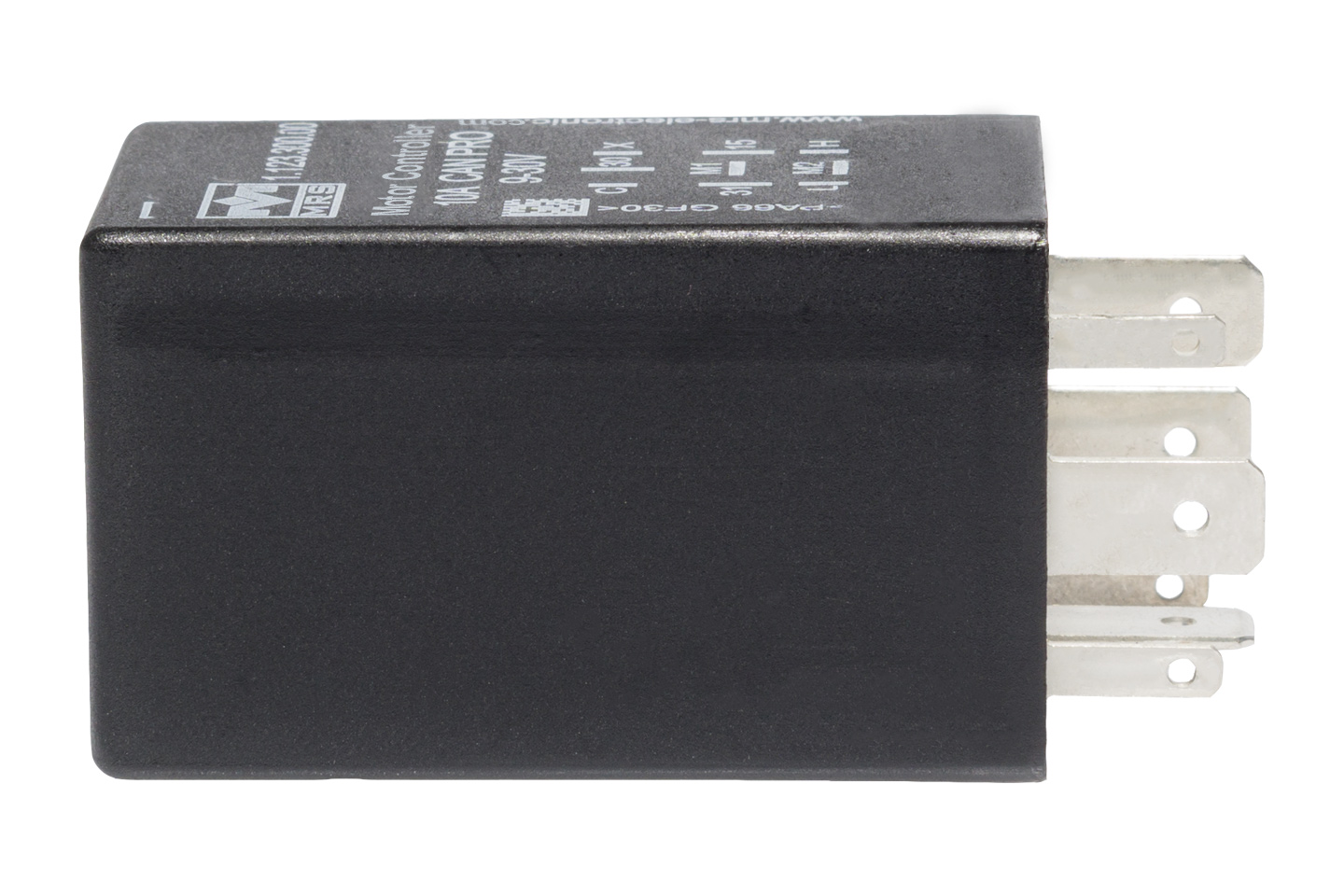

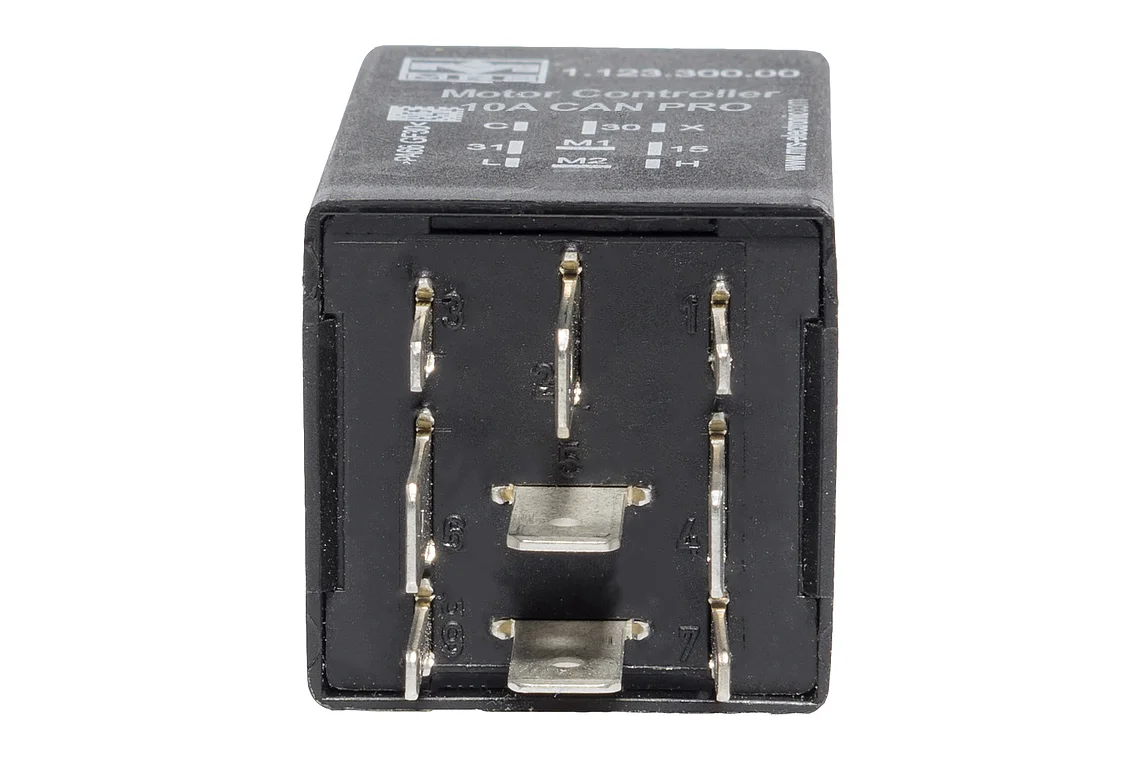

Motor Controller 10A CAN PRO
go to order options (1123x)
The Motor Controller 10 A CAN PRO is a microcontroller-based module for controlling direct current (DC) motors. It is suitable for automotive applications, among others, and saves valuable space in your application thanks to its compact design. In contrast to the standard version ‘Motor Controller 10 A CAN’, the PRO version offers you software-configurable analog inputs and is therefore even more versatile.
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 3 |
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| Outputs (total) | 1 |
| Fullbridge | 1 |
| Switching current | 10 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 50 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 800 µA |
| Quiescent current (24V) | 1540 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.123.300.00 (112330000) |
Motor Controller 10A CAN PRO, with Potentiometer
|
