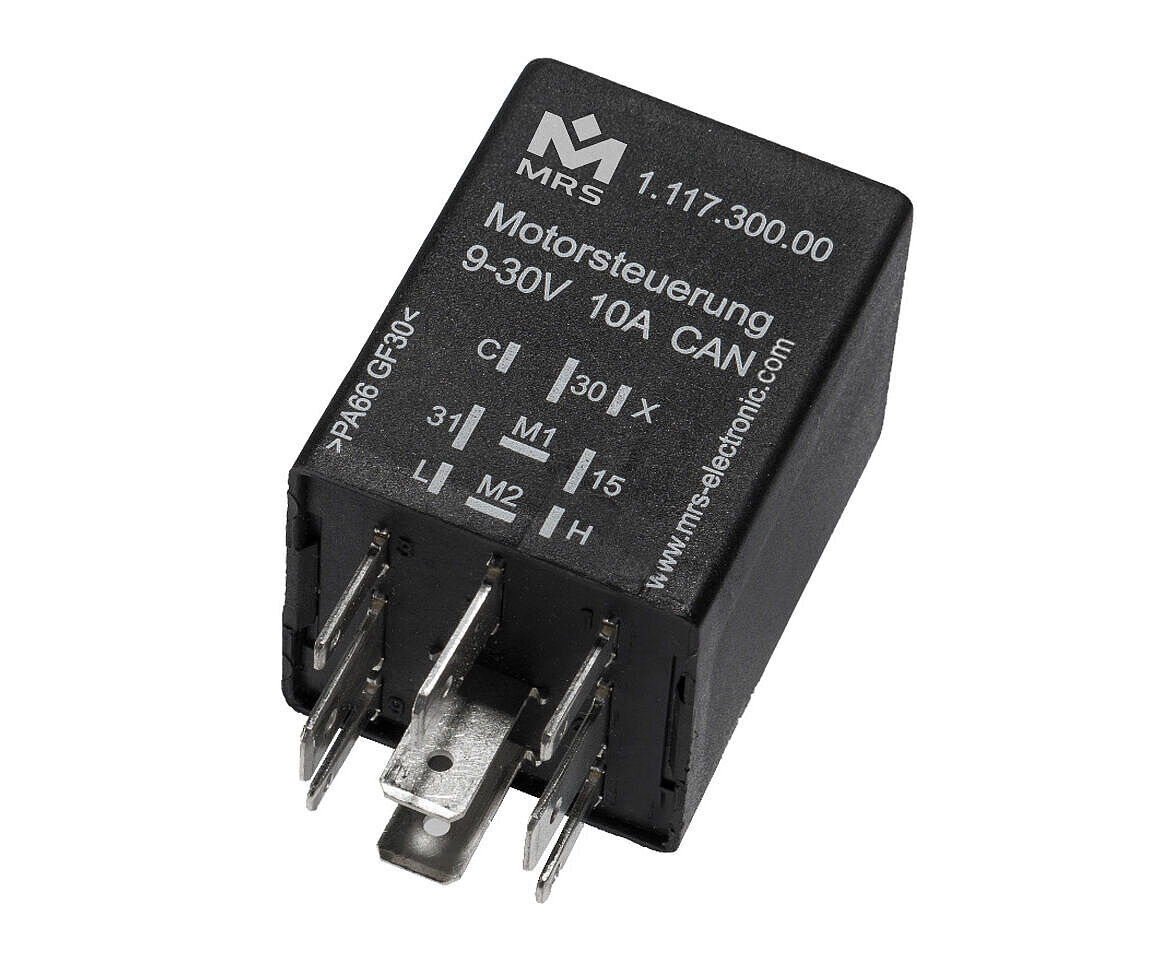

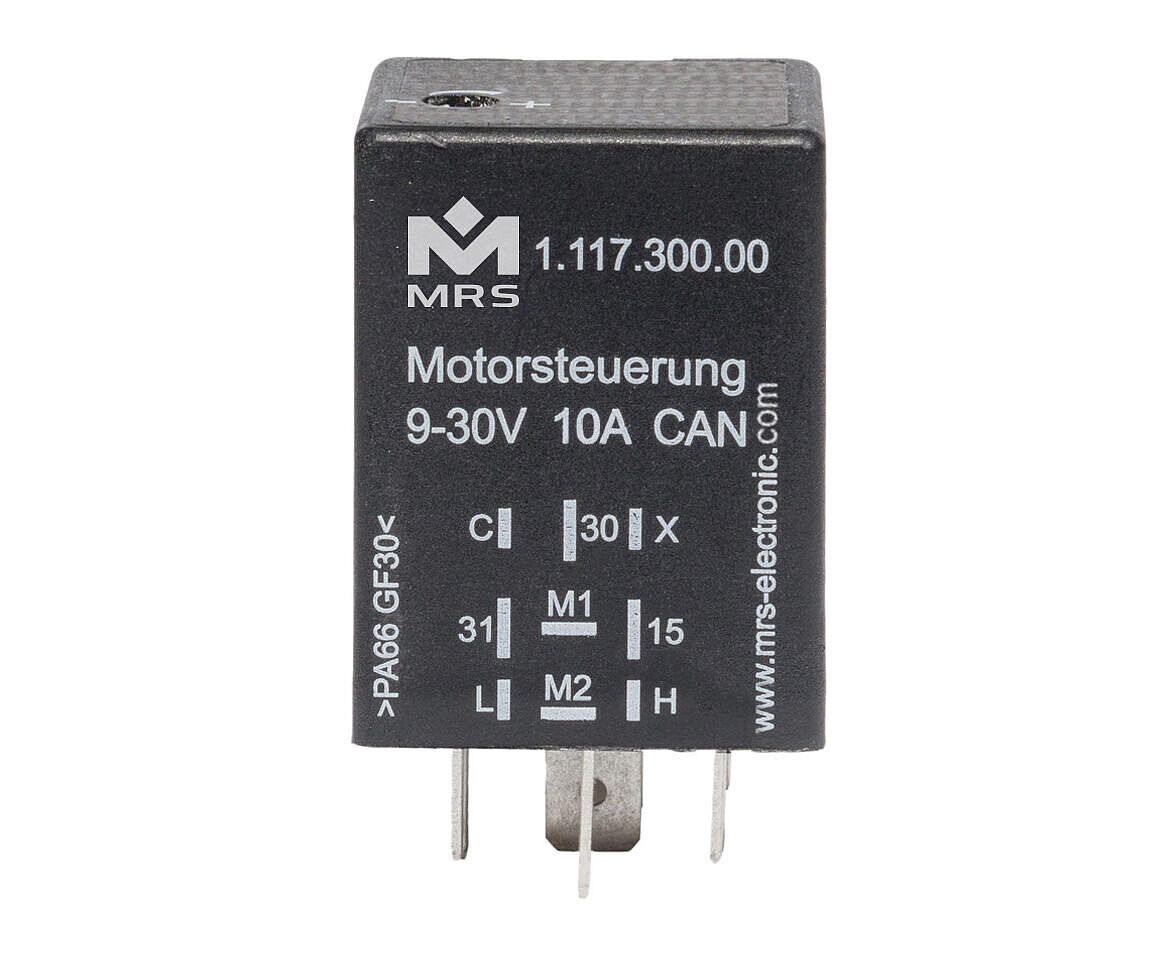

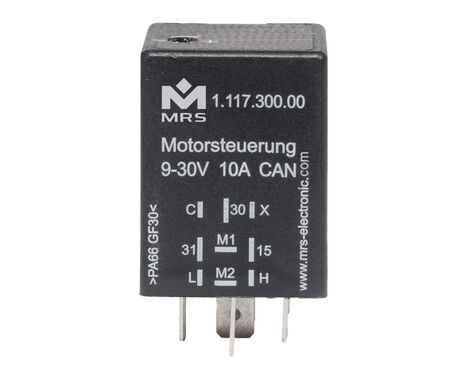

Motor Controller 10A CAN
go to order options (1117x)
The Motor Controller 10 A CAN is a microcontroller-based module for controlling direct current (DC) motors and is suitable for automotive applications, among others. Thanks to its compact design, it saves valuable space and can be used in a variety of ways in your application. The motor controller has 3 analog inputs and a full bridge with motor output for up to 10 A power.
Technical details
Inputs and Outputs

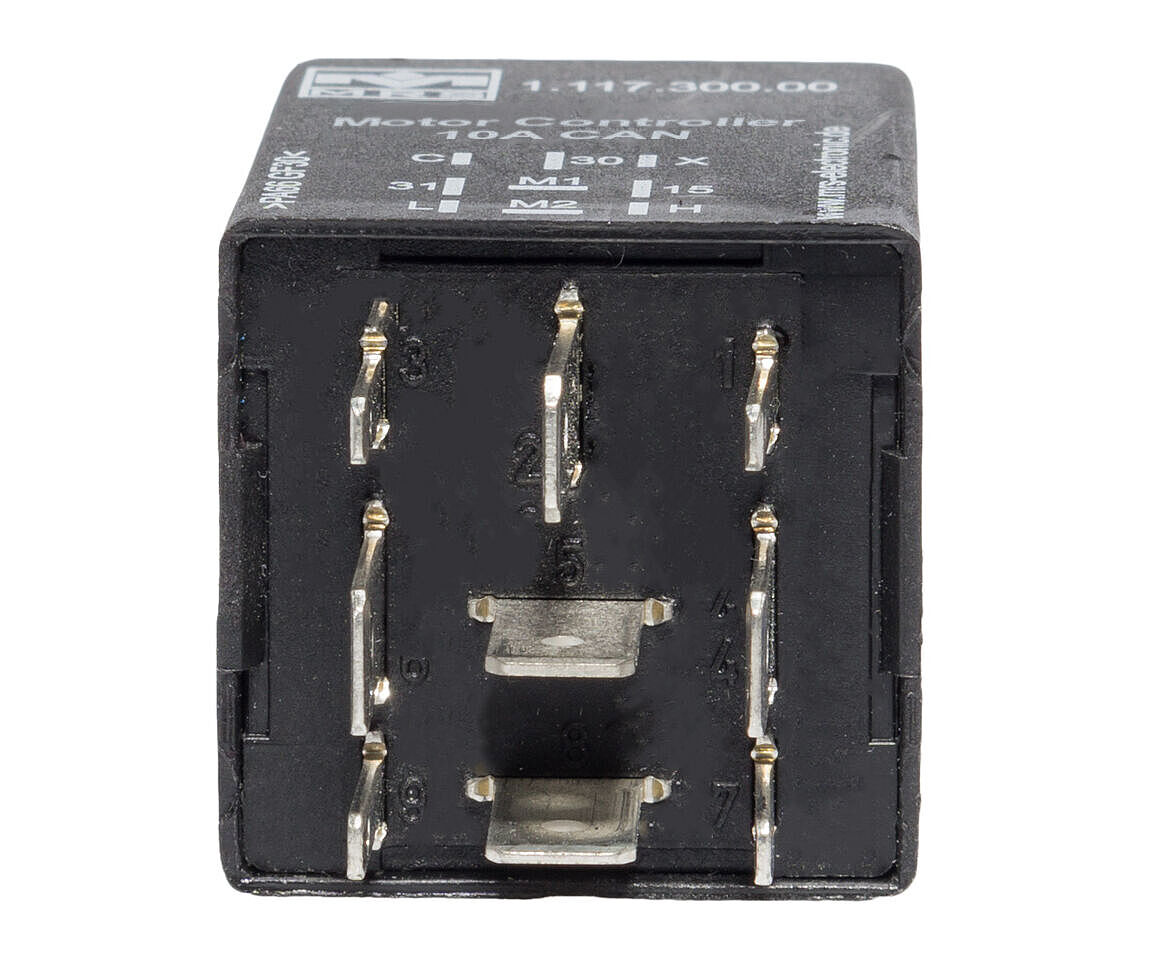

| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 3 |
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| Outputs (total) | 1 |
| Fullbridge | 1 |
| Switching current | 10 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 680 µA |
| Quiescent current (24V) | 1250 µA |
| Processor architecture | 8 bit |

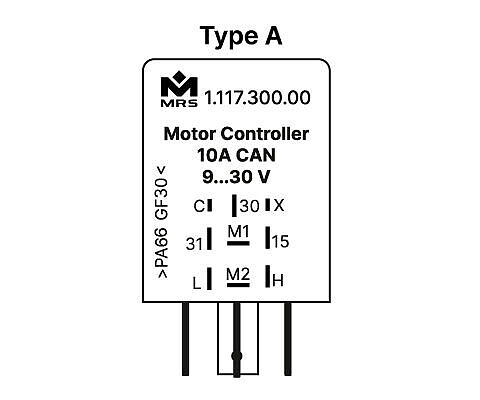

Markings
Order options
| Order no. | Name |
|---|---|
| 1.117.300.00 (111730000) |
With Potentiometer
|
| 1.117P.300.00 (1117P30000) |
CANopen
|
