TConn 4.3
go to order options (1502x)

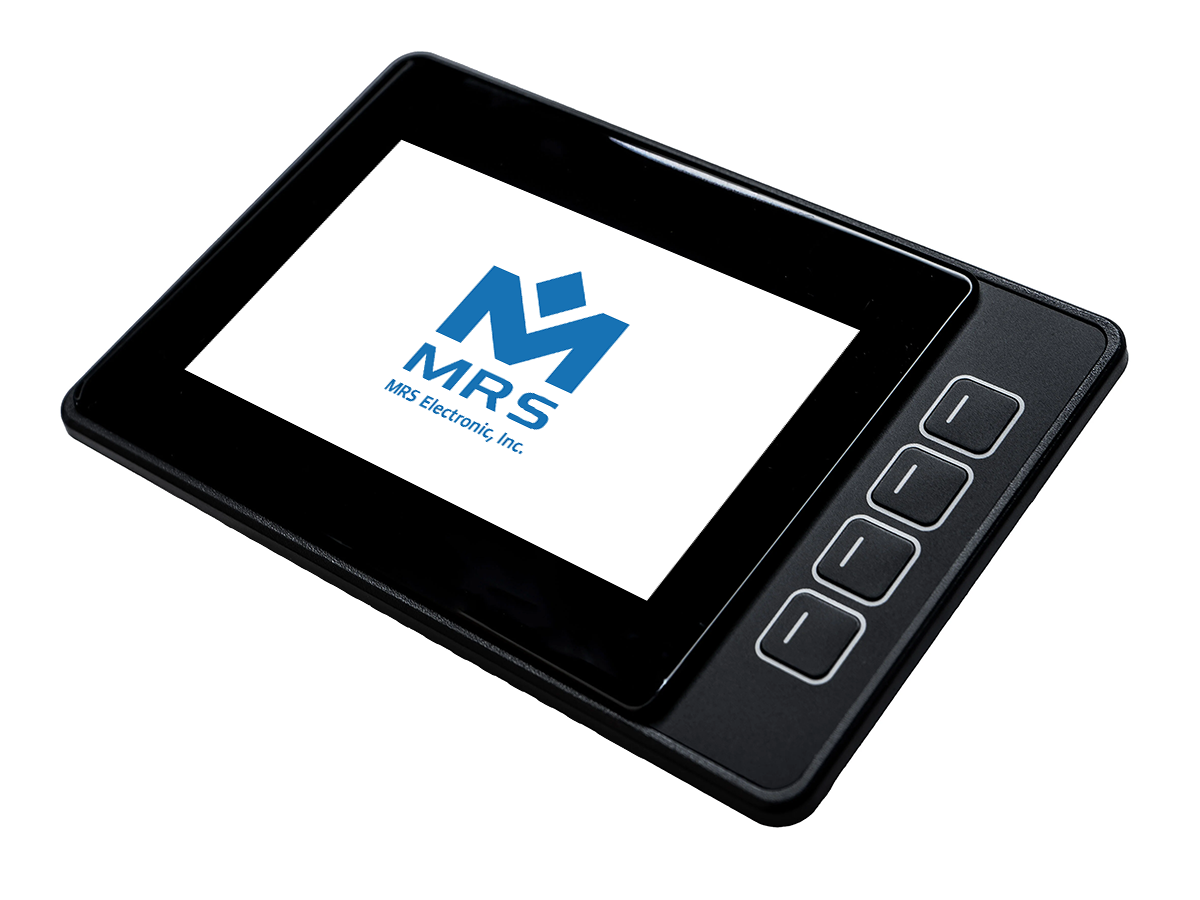

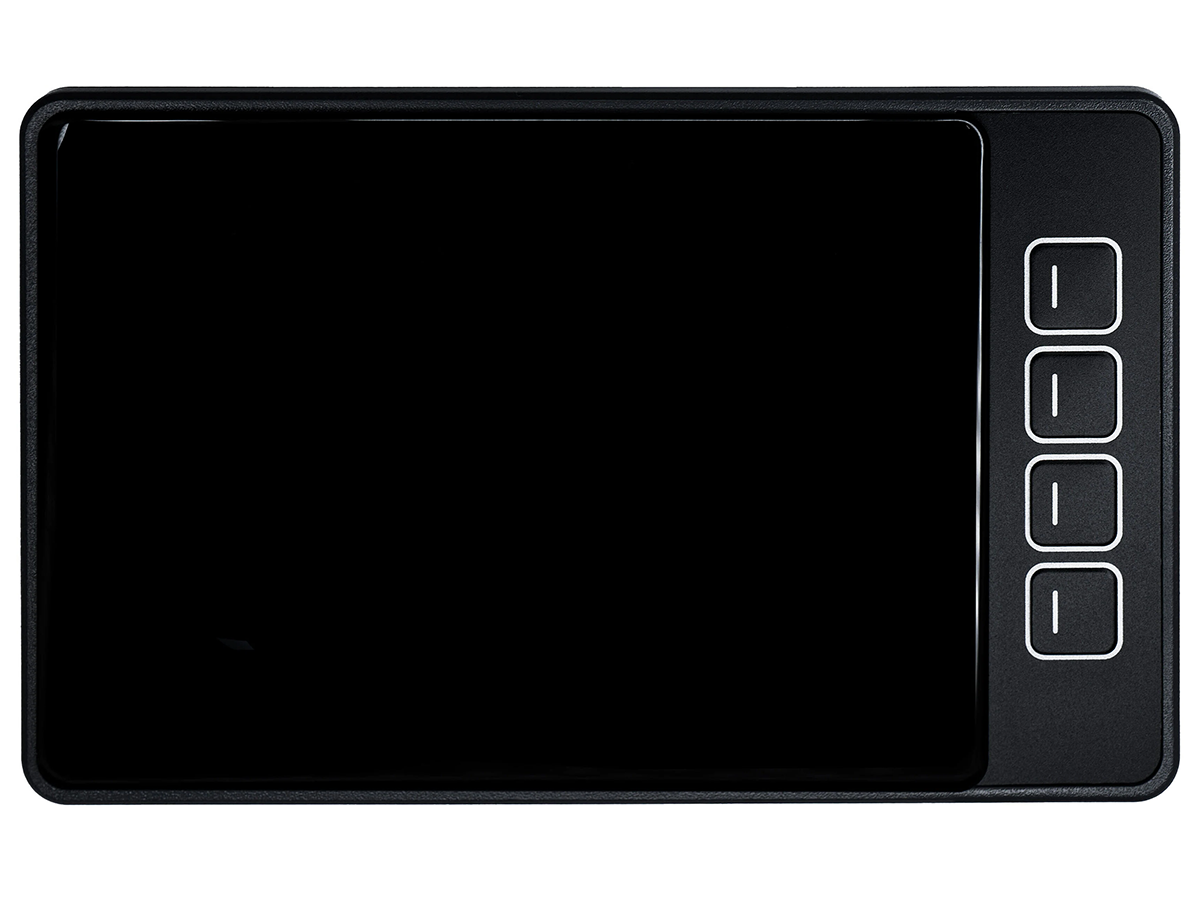

The TConn 4.3 is a cost-effective CAN display with a 4.3 inch screen diagonal. It has an optical bonded display with a brightness of up to 800 candela/m² (nits). This means you can use it even in direct sunlight and it can be read optimally from any angle. The display has a resolution of 480 by 272 pixels. The capacitive touchscreen and the four buttons with fluorescent print enable particularly user-friendly operation. Thanks to the multi-touchscreen, it can even be operated with gloves.

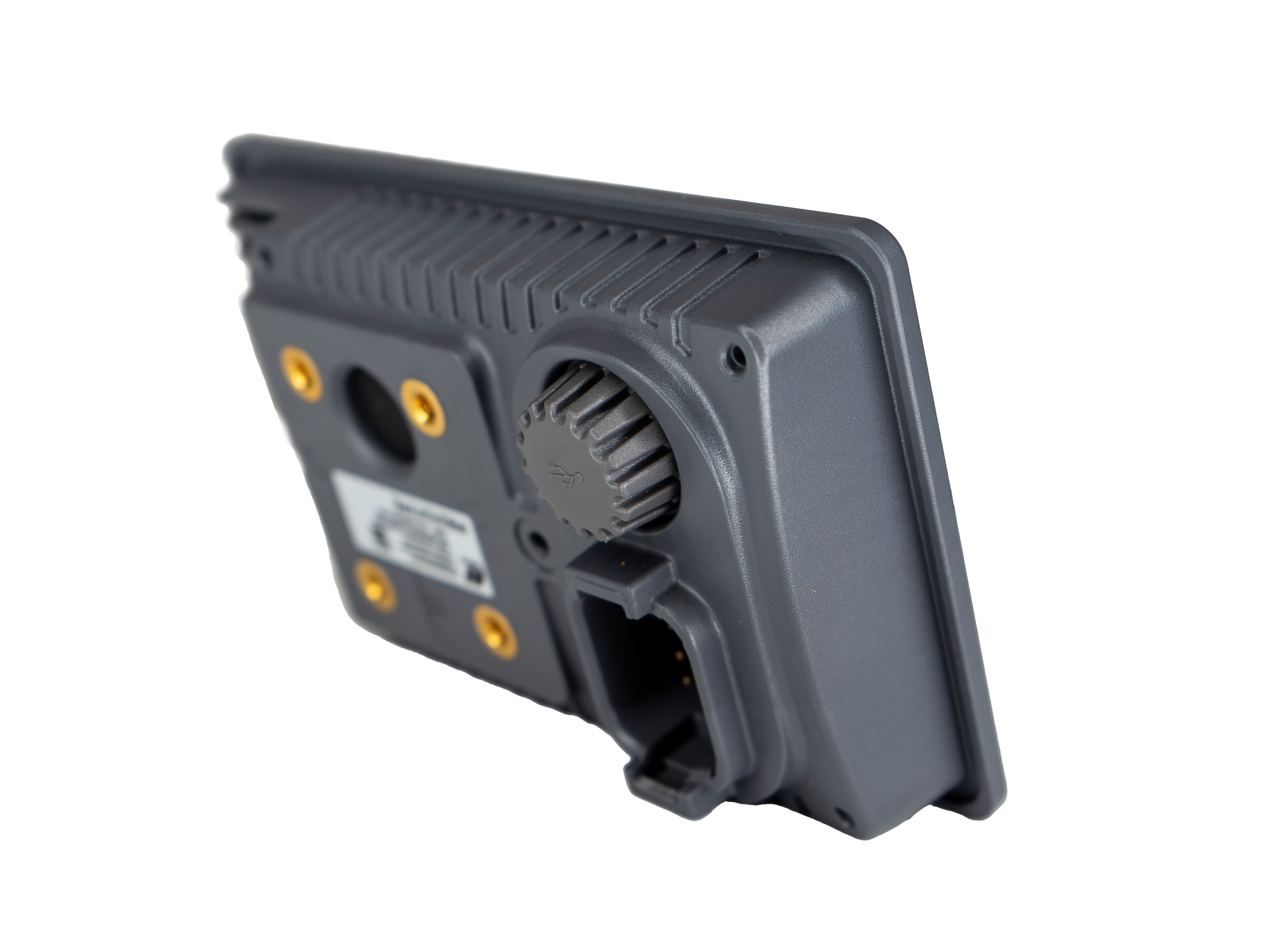

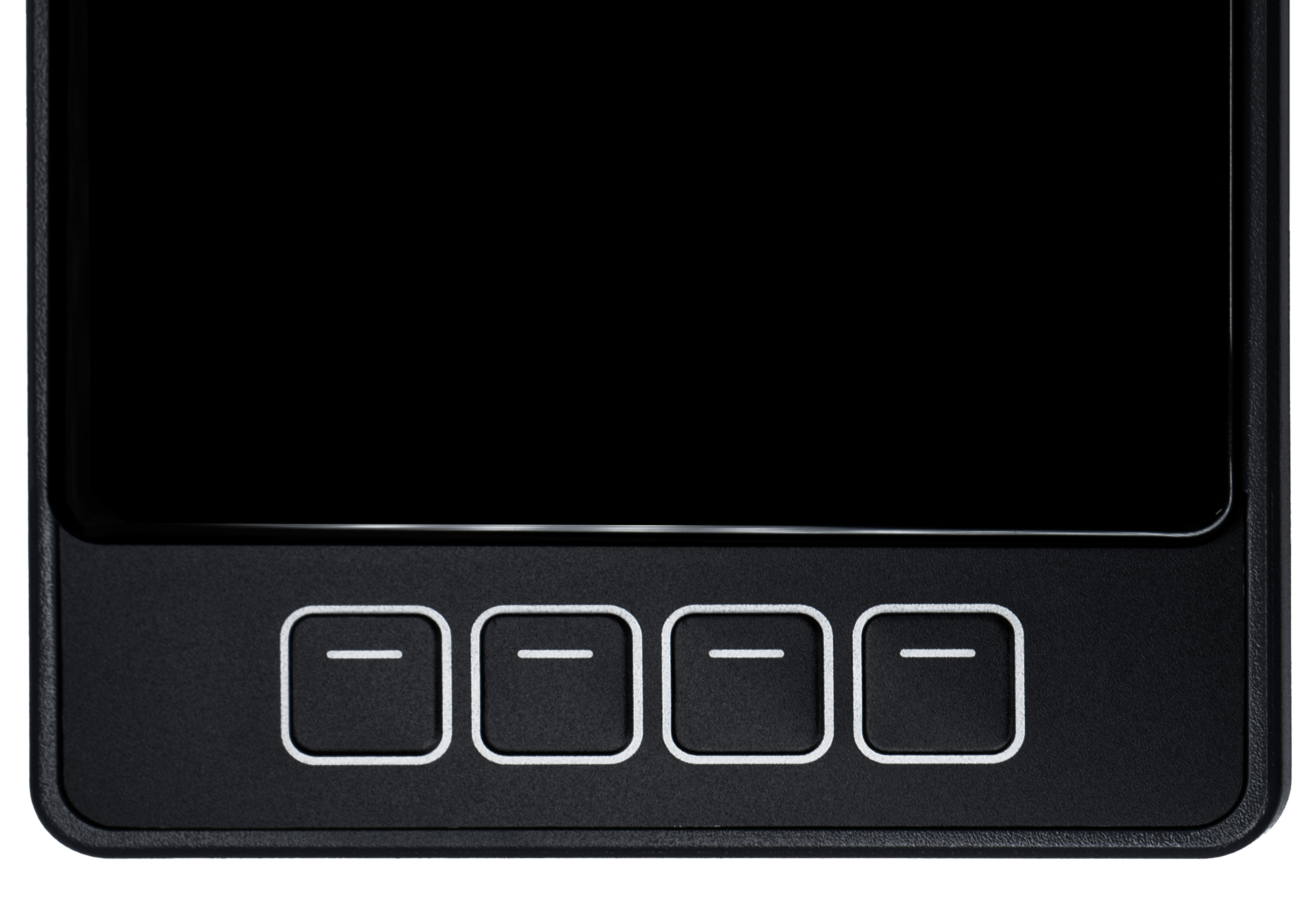

Powered by an i.MX6 processor with 528 MHz, 2 GB storage and 256 MB RAM, the HMI system ensures reliable performance in the voltage range from 9 to 36 volts and runs on a Linux operating system. Application programming is done with C++, Projektor or Qt/QML. With its housing made of polycarbonate and ABS, it is particularly shockproof and heat-resistant. You can mount the TConn 4.3 according to your needs, with the buttons on the right or left side or in portrait format.
Downloads
Technical details
Interfaces
| CAN interface(s) | 2 |
|---|---|
| CAN FD interface(s) | 2 |

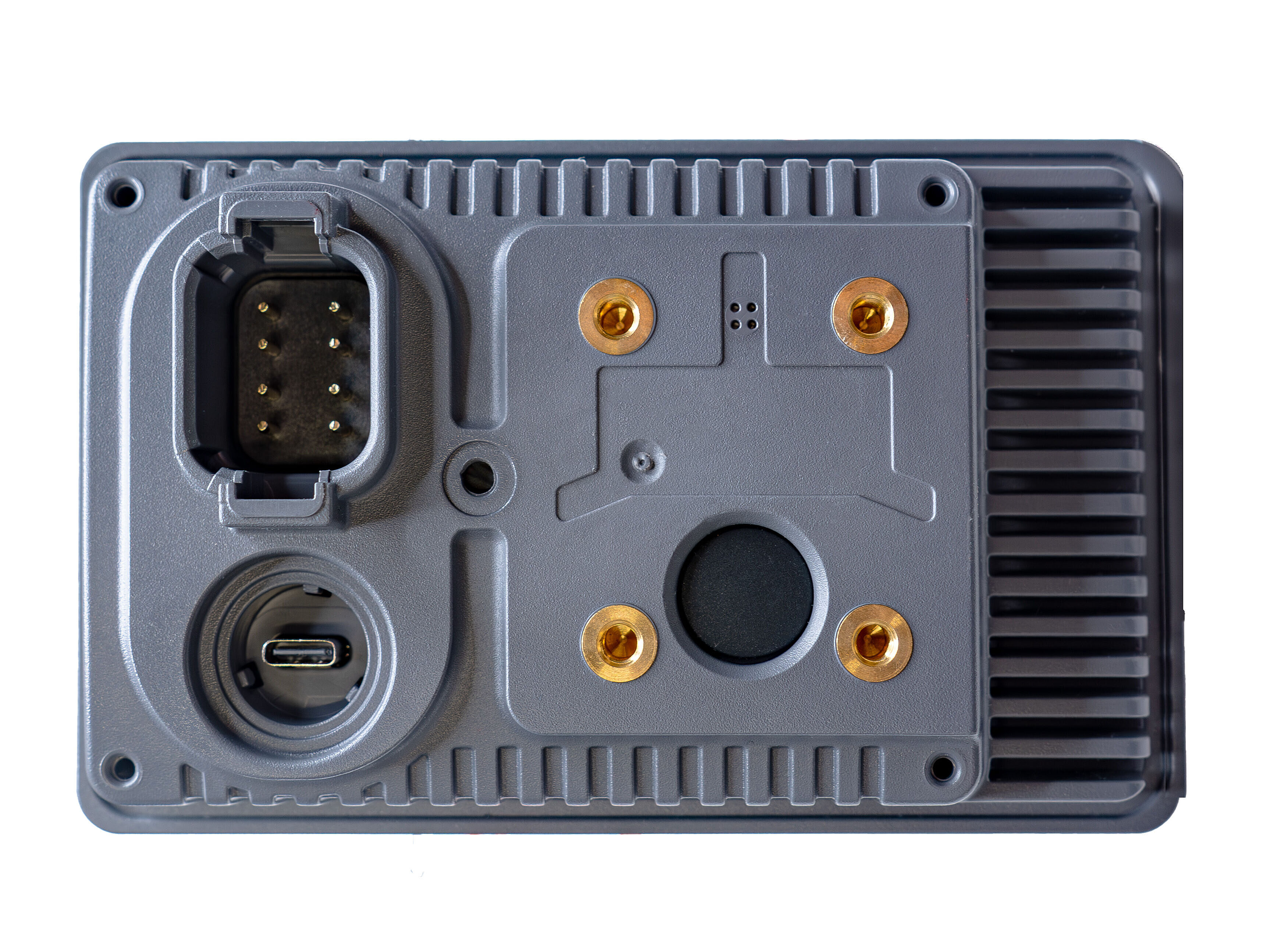

| USB Interface(s) | USB, Type C |
Mechanical Properties
| IP rating | IP66 and IP67 |
|---|---|
| Housing material | PC/ABS, Autotex XEF200 |
| Dimensions | 144 × 89 × 35 mm |
Programming
| Programming Software | C++, Projektor, Qt, CODESYS |
|---|
General
| Temperature range | -30°C to +75°C |
|---|---|
| Operating voltage | 9-36 V |
| Type | Optical bonded |
| Screen Size | 4.3” |
| Resolution | 480 x 272 |
| Brightness | 800 nits |
| CPU | 32-bit |
| Storage | 2 GB |
| RAM | 256 MB |
| Operating System | Linux |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.502.303.0000 (15023030000) |
With Buttons & Touch Function
|
OPUS Projektor Software Demo
