Micro PLC CAN DTM

go to order options

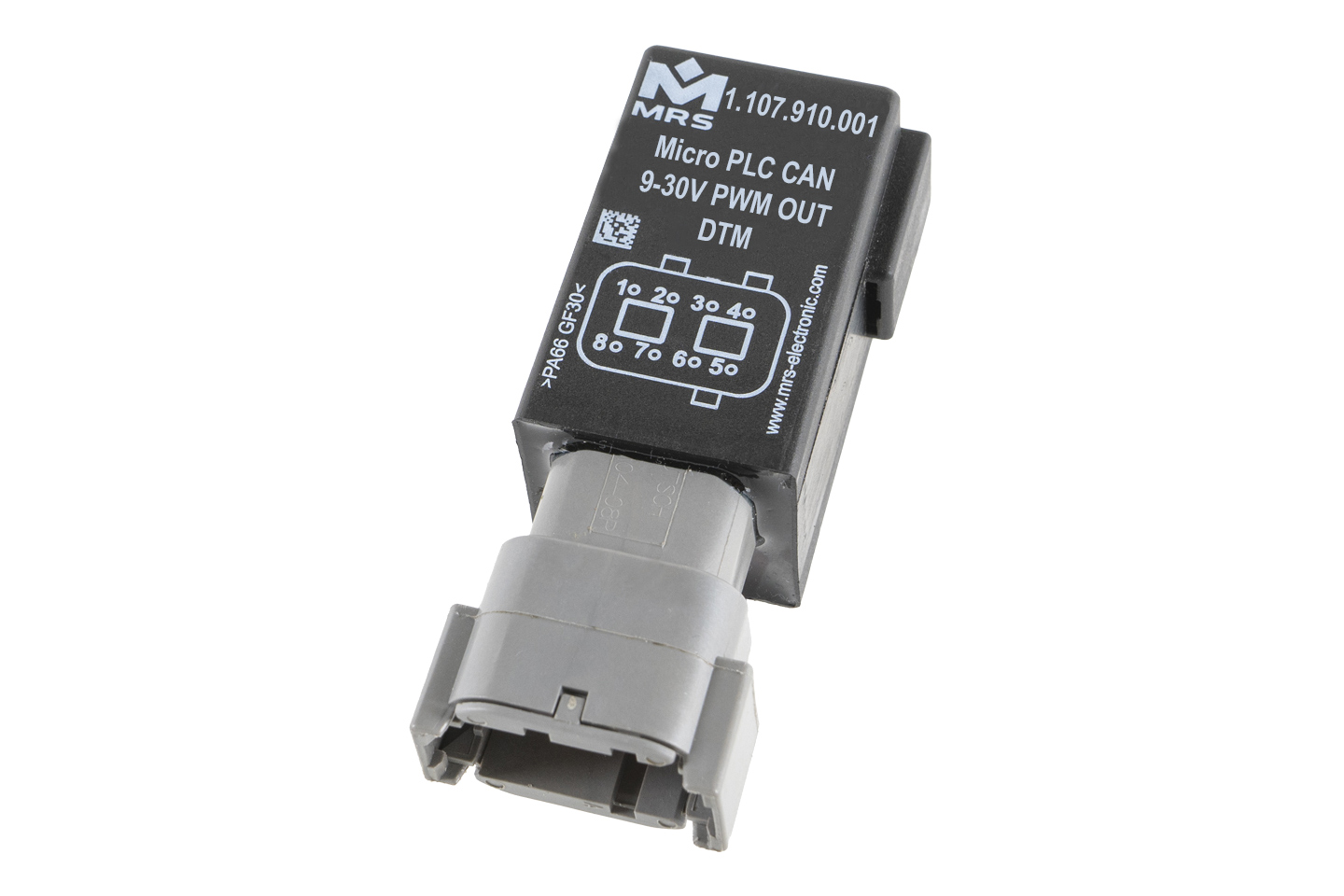

The Micro PLC CAN DTM is a small controller system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with flash technology (option of multiple programming).

In combination with the DEUTSCH DTM connector, this module is made to robust quality standards and is ideal for extreme environmental conditions.

Downloads
Technical details

Inputs and Outputs

Number of pins 8
In-/Outputs (total) 4
Inputs (total) 2
Inputs (analog) 2
Outputs (total) 2
Outputs (PWM capable) 2
Switching current 4.5 A / 4.5 A

Interfaces

CAN interface(s) 1

Mechanical Properties

IP rating IP6K8
Housing material PA66GF30

Programming

Programming software MRS Developers Studio

General Information

Temperature range -40°C to +85 °C
Operating voltage 9-32 V
Order options
Order no.Name
1.107.910.001
High Side Drivers, 2x PWM Out, 9-32V
1.107.710.01
1x Relay Output, Frequency Input KL.X, 12V
1.107.710.0E
1x Normally Open Output, 3x Analog Inputs, 12V
