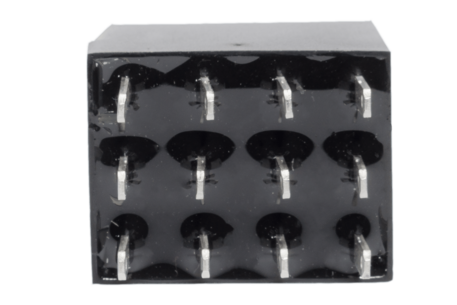

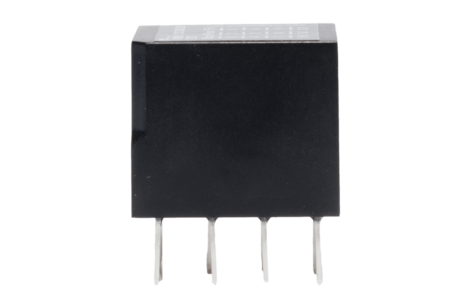

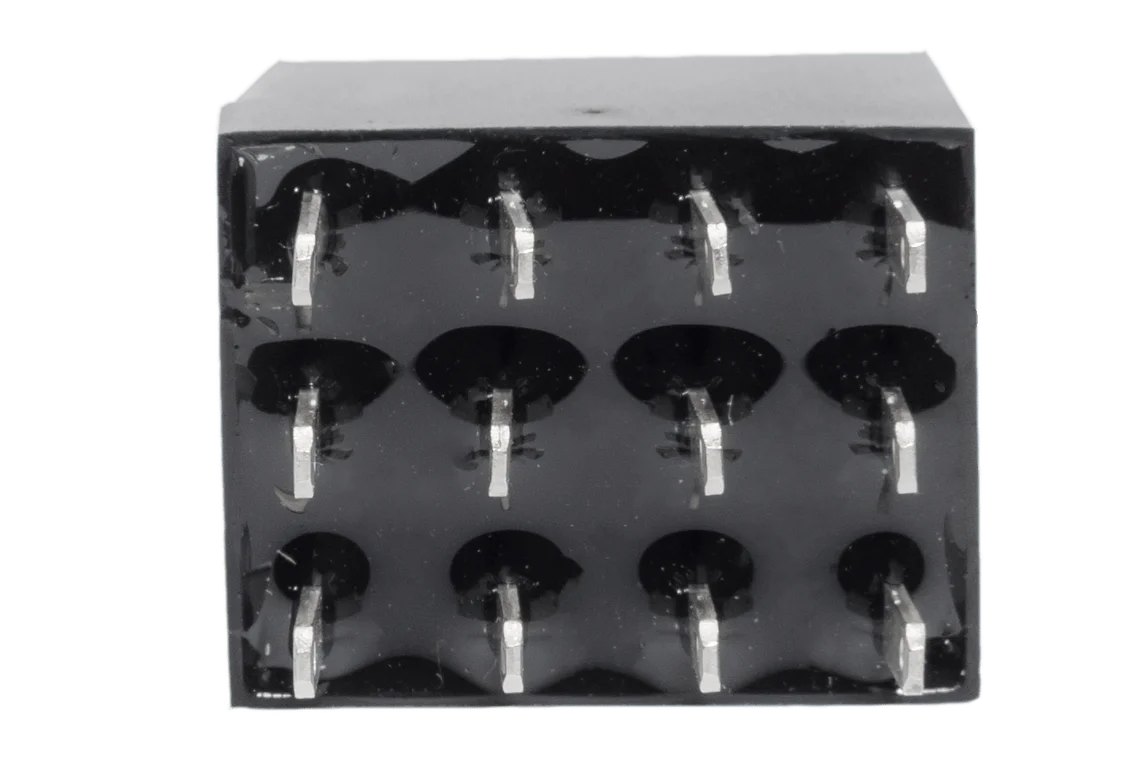

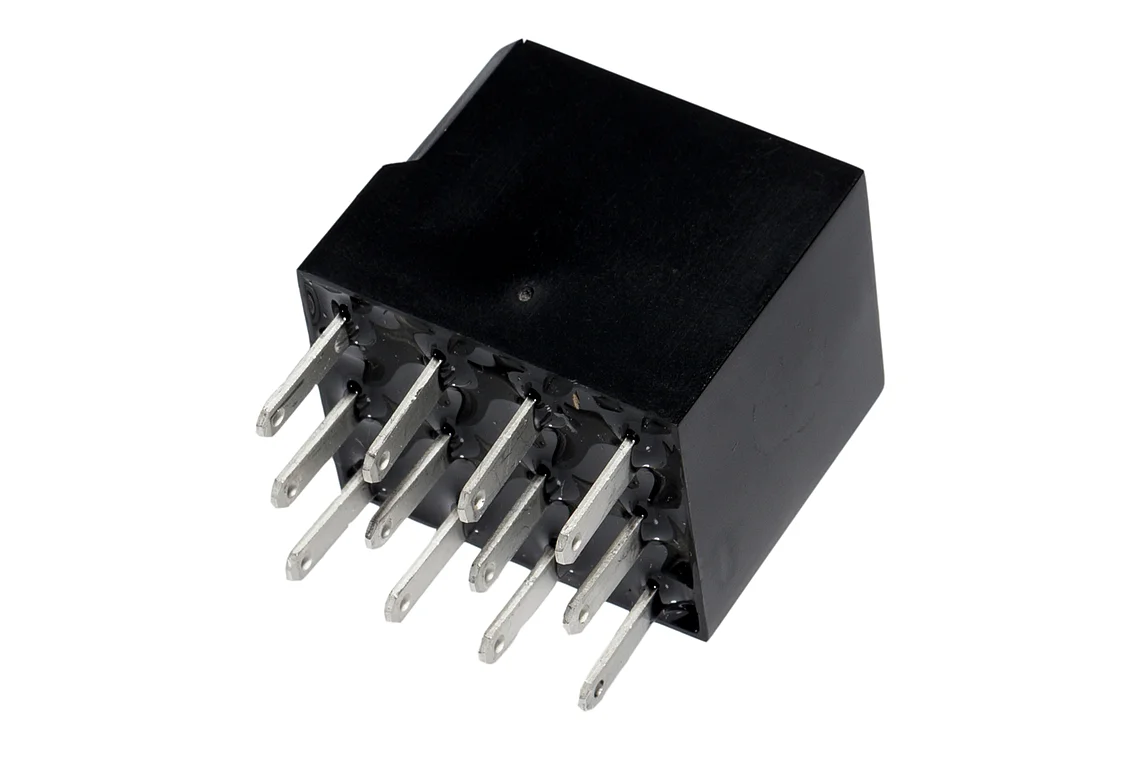

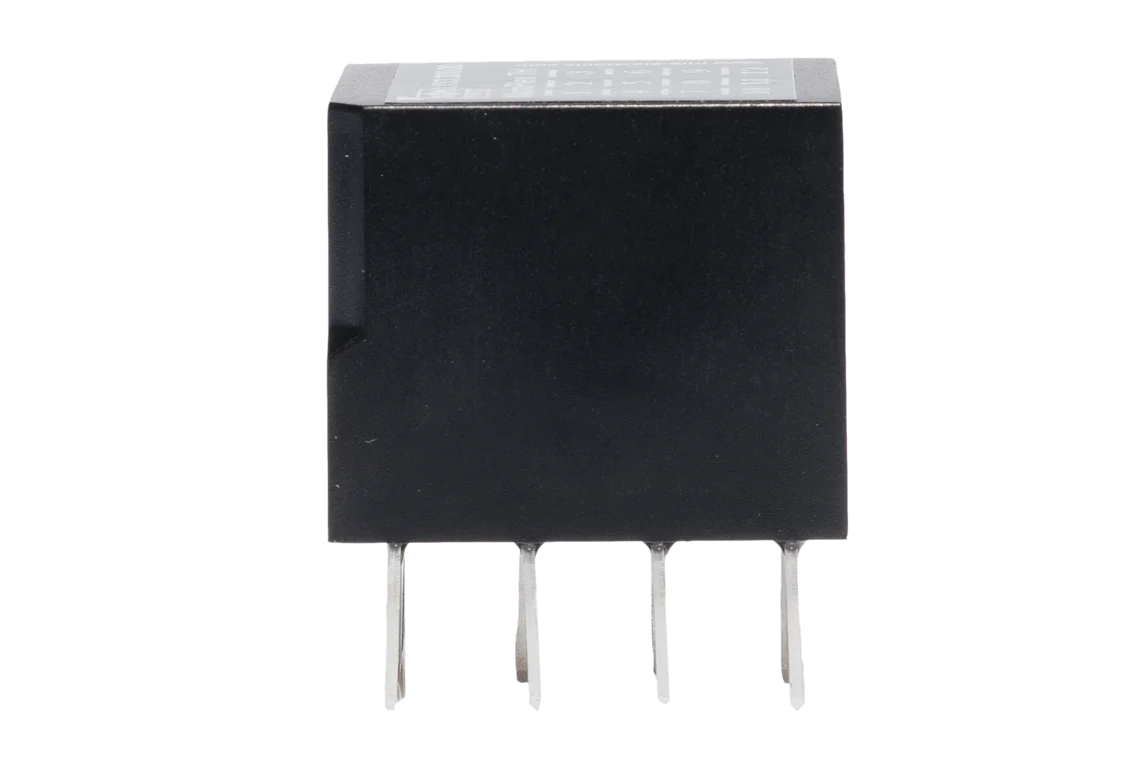

MicroPlex 7L
go to order options (113430000)
The patented MicroPlex is the smallest CAN controller with the highest integration level from MRS Electronic. On the base area of the 2 Micro 280 relays you can easily build your own CAN bus capable power distribution systems. The 7L version has a total of 7 low-side driver outputs that switch the ground. Of these, 6 are PWM-capable. In this way, the innovative MicroPlex adapts perfectly to your needs.
The MicroPlex can very quickly and easily generate an intelligent system with CAN bus communication from previously simple ISO 280 boxes. With the CAN interface the Microplex allows you to upgrade your existing systems with diagnostic capability.
Technical details
Inputs and Outputs
| Number of pins | 12 |
|---|---|
| In-/Outputs (total) | 7 |
| Outputs (total) | 7 |
| Outputs (PWM capable) | 6 |
| Outputs (digital) | 1 |
| Output type low side | 7 |
| Switching current | 0.7 A |
| Continuous current | 0.6 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP67 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30.4 × 23.6 × 25.75 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 26 mA |
| Quiescent current (12V) | 170 µA |
| Quiescent current (24V) | 230 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.134.300.00 (113430000) |
MicroPlex 7L
|
