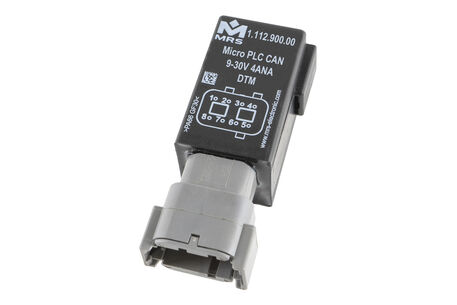

Micro PLC CAN 4 ANA DTM
go to order options (11129)
The Micro PLC CAN 4 ANA DTM offers many possible applications with its 5 inputs and outputs. One analog input and four I/Os, the function of which can be individually defined. These inputs/outputs can be used as four analog outputs for current (0-24mA) and voltages (0-10V). Or you can configure them as four analog inputs.
In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.
1.112.9 Micro PLC CAN 4 ANA DTM
Technical details
Inputs and Outputs
| Number of pins | 8 |
|---|---|
| In-/Outputs (total) | 4 |
| Inputs (total) | 4 |
| I/Os (total) | 4 |
| I/Os (Input analog) | 4 |
| Output type high side | 4 |
| Switching current | 25 mA |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
Programming
| Programming software | MRS Developers Studio |
|---|
General
| Temperature range | -40 °C to +85 °C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 35 mA |
| Quiescent current (12V) | 20 µA |
| Quiescent current (24V) | 20 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.112.902.00 (111290200) |
Micro PLC CAN 4 ANA DTM
|
