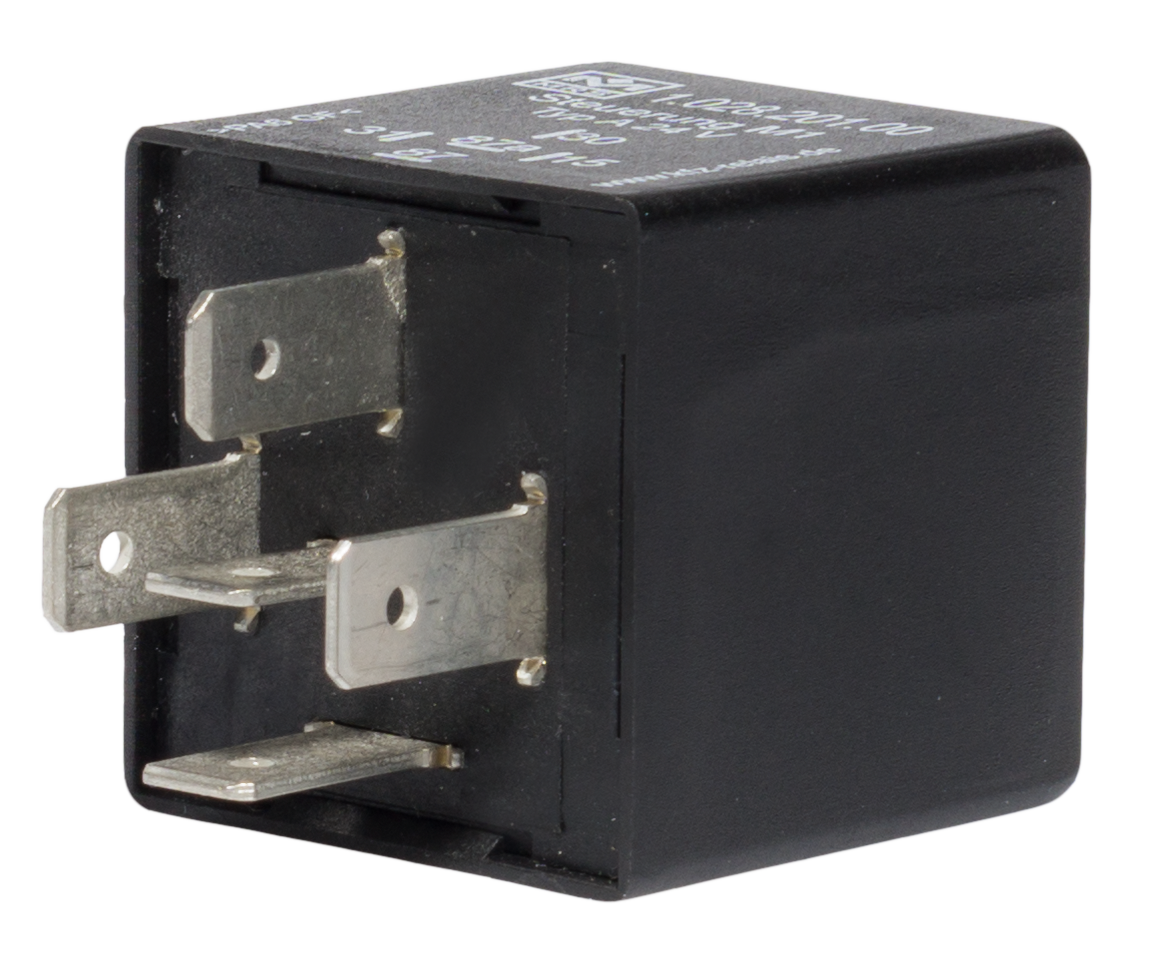

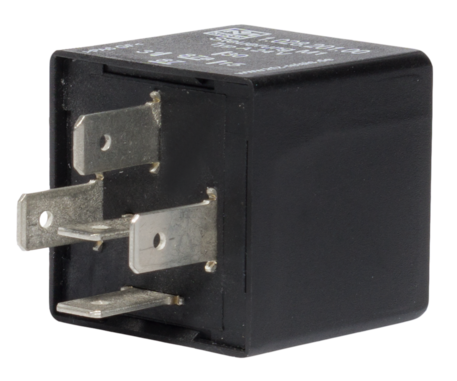

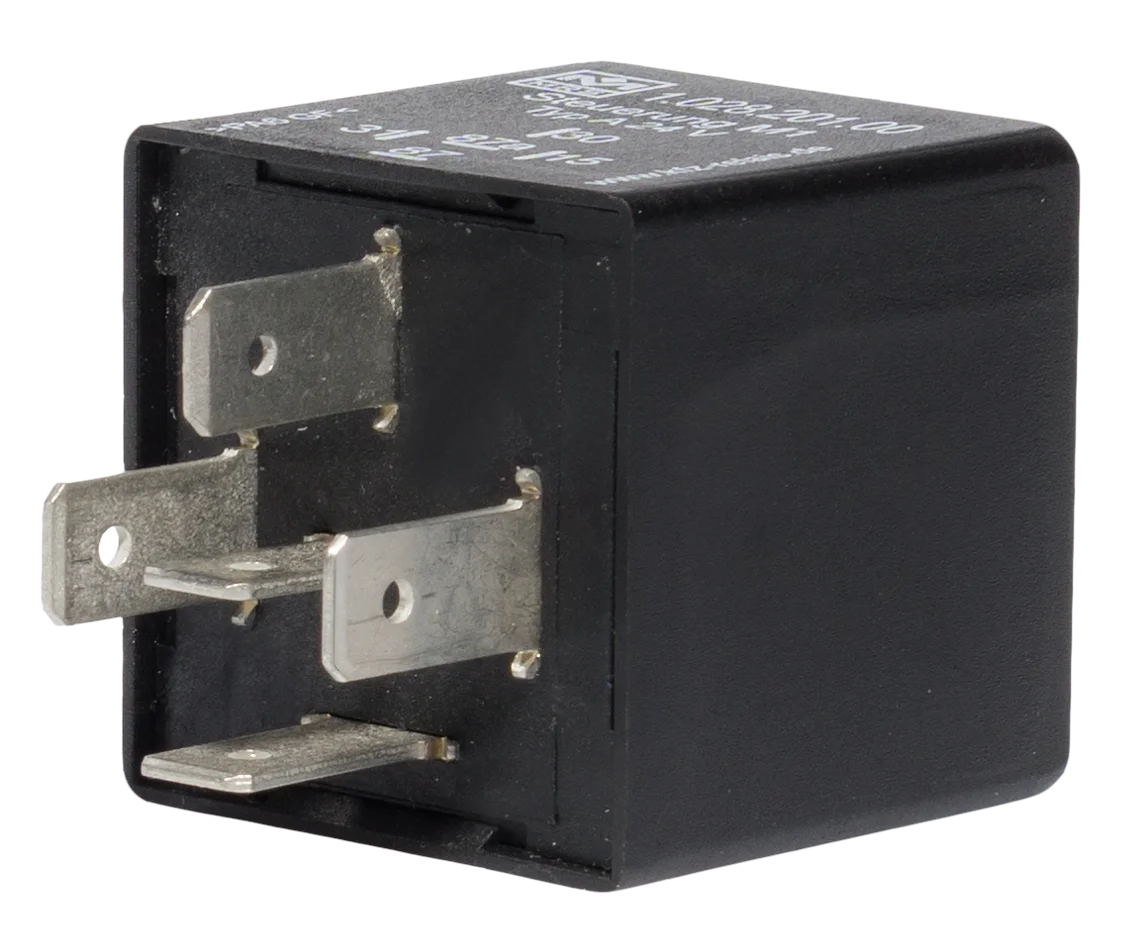

Controller M1 24V
go to order options (10282x)
The M1 controller with an operating voltage of 24 V is a small, powerful and inexpensive controller. In addition to the compact time relay, this compact version also has an impulse relay, a stepping relay, a flasher and other functions on request. The functions mentioned are stored by default and only need to be configured and parameterized. Of course, the standard functions can also be ordered directly.
Downloads
Technical details
Inputs and Outputs
| Number of pins | 5 / 6 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NO 15 A / NC 15 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
Programming
| Programming software | MRS Realizer |
|---|
General
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 14-32 V |
| Current consumption | 2 mA + Load |
| Processor architecture | 16 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.028.201.00 (102820100) |

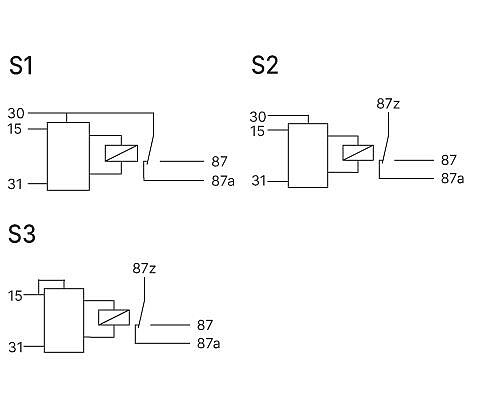

Type A, Connection S1
|
| 1.028.202.00 (102820200) |
Type B, Connection S2
|
| 1.028.203.00 (102820300) |
Type C, Connection S3
|
