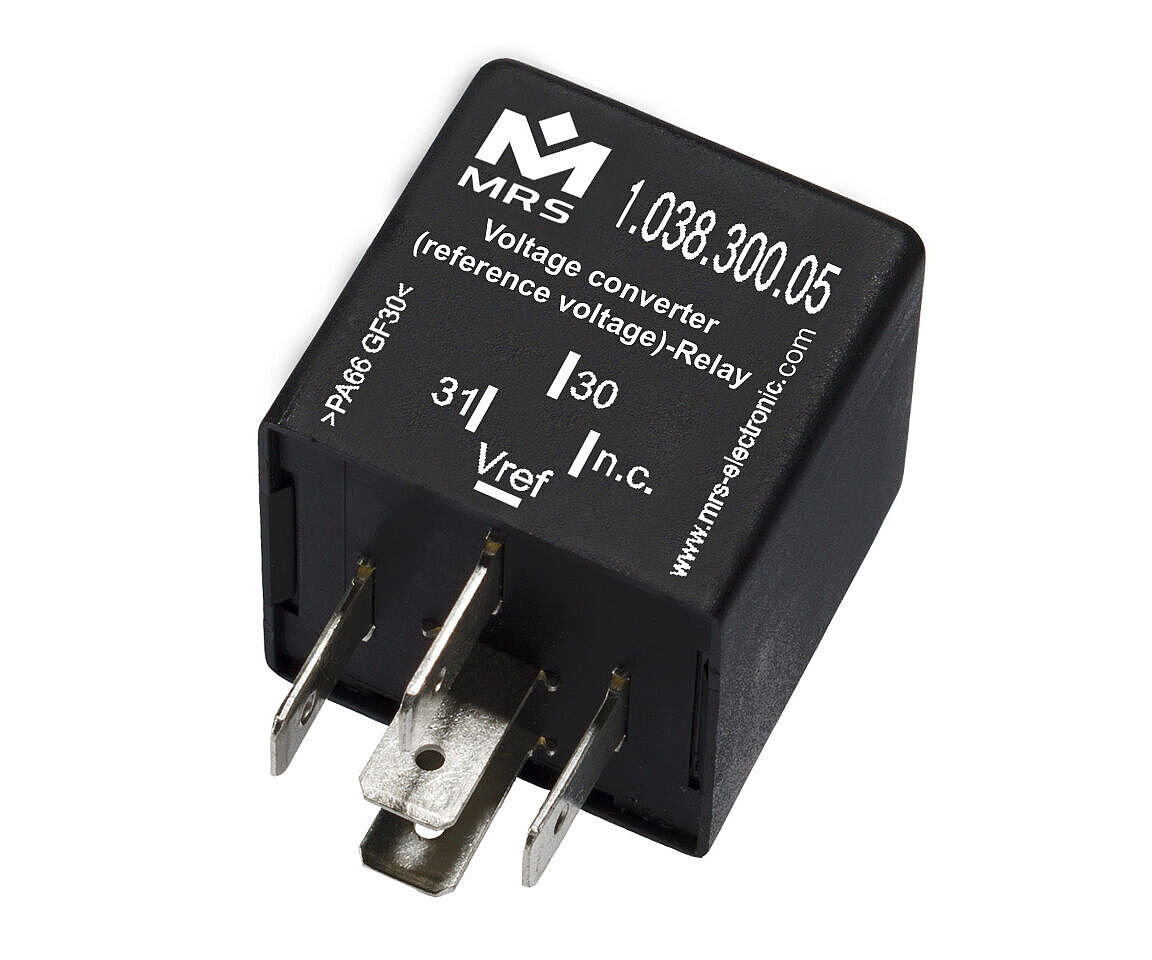

Voltage Converter (reference voltage)
go to order options (1038300xx)
The voltage converter supplies a stabilized reference voltage (5V or 12V). This can be used to supply sensors. Thanks to the integrated regulator, the voltage converter can be used in a voltage range of 9-32V or 18-32V.
Technical details
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
General
| Temperature range | -40 to +85°C |
|---|
Markings
Order options
| Order no. | Name |
|---|---|
| 1.038.300.05 (103830005) |

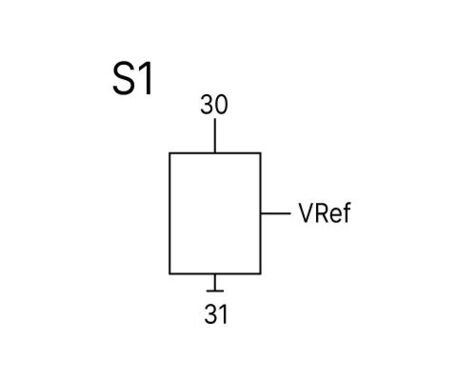

Reference circuit 5V, Type A, Connection S1
|
| 1.038.300.12 (103830012) |
Reference circuit 12V, type A, connection S1
|
